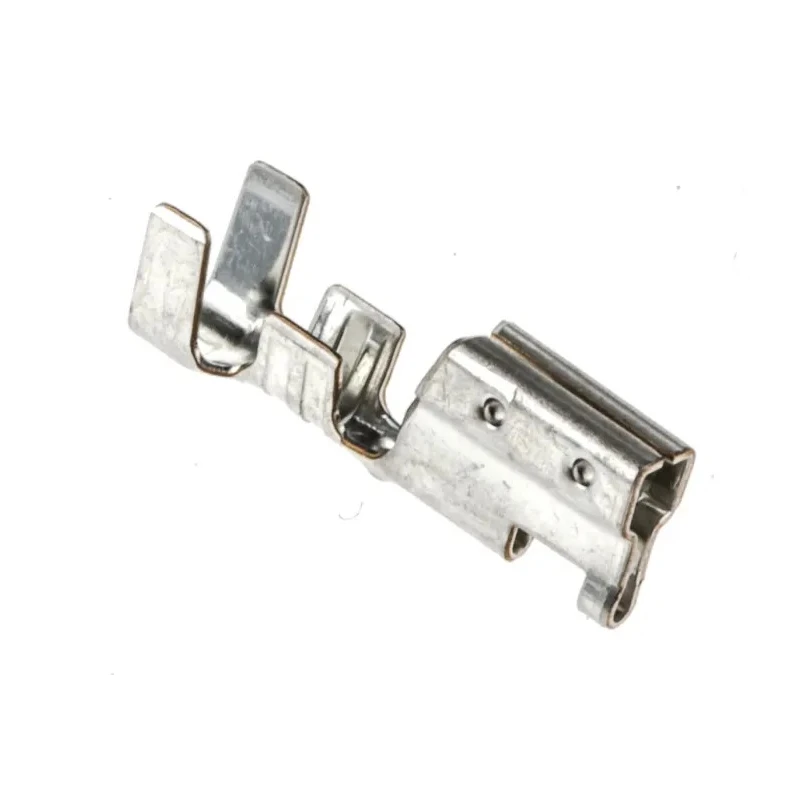

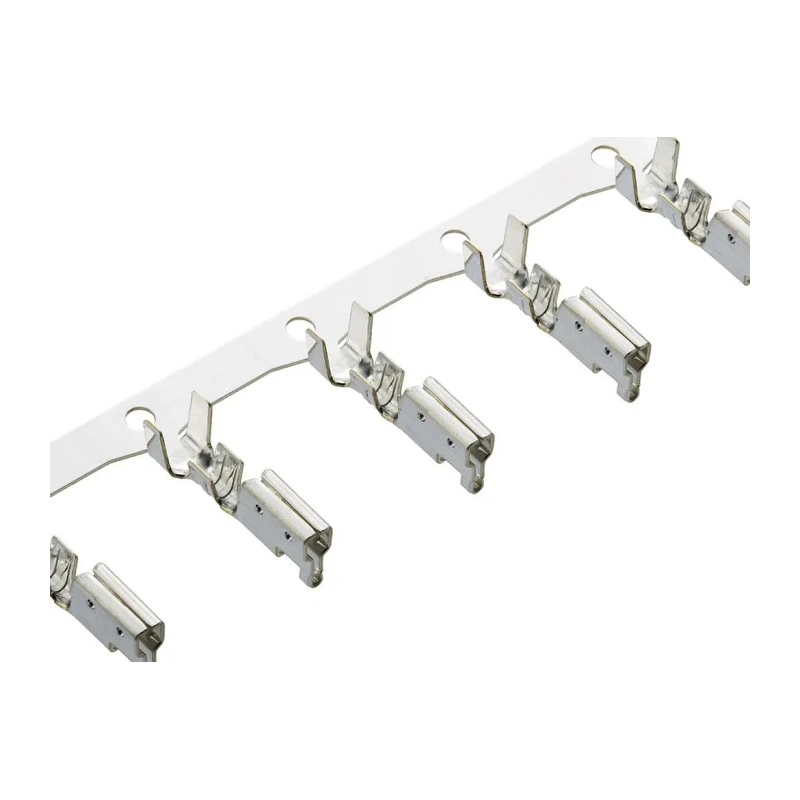

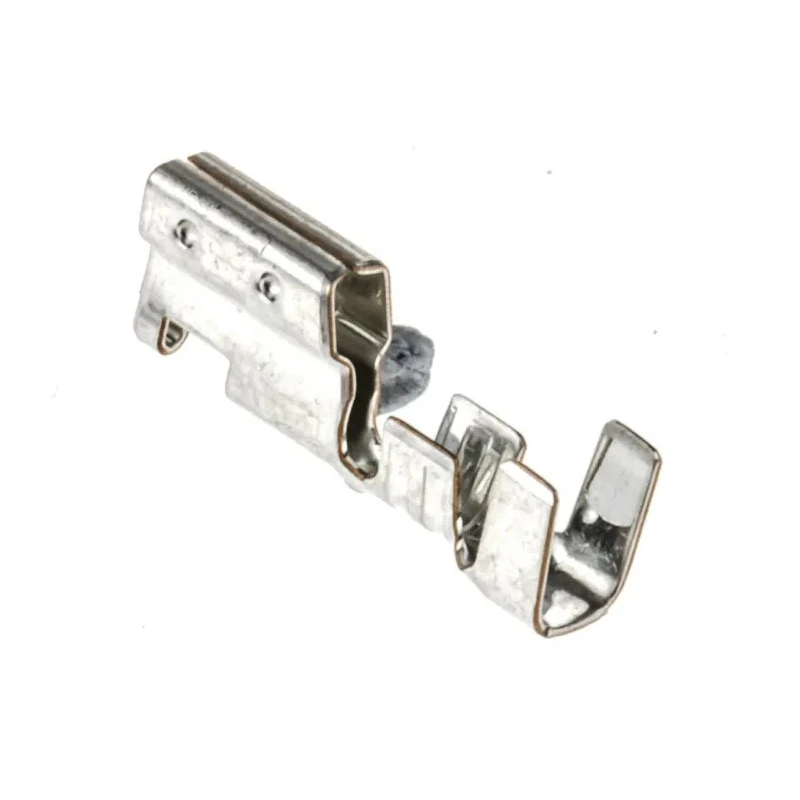

Molex 5194 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Tin Plated Phosphor Bronze, 7A 39-00-0022
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Current | 7A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5194 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -25°C |
| For Use With | SPOX Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from phosphor bronze with tin plating for enhanced conductivity and corrosion resistance.
- Designed for high electrical reliability with spring box style contact design.
- Compatible with SPOX connector housing series 5194 for secure wire termination.
- Crimp termination type ensures a firm mechanical and electrical connection.
- Operates reliably within a temperature range of -25°C to 105°C.
- Maximum contact resistance is 10 milliohms, ensuring efficient current flow.
- Ideal for communication and networking applications requiring reliable wire connections.
- Manufactured in Japan ensuring high-quality standards and durability.
Product Description
The Molex 5194 Series Female Crimp Terminal, model 39-00-0022, is engineered for precise and reliable wire termination in electronic components and connectors. It is designed to interface seamlessly with SPOX connector housings, specifically series 5194, enabling high-performance electrical connections in communication and networking devices. Rated for a continuous current of 7 amperes, this terminal supports wire gauges from 24 AWG minimum to 18 AWG maximum, accommodating a range of wiring requirements.
Manufactured using phosphor bronze contact material with tin plating, the terminal offers excellent conductivity alongside protection against corrosion. Its spring box style design delivers multiple contact points, enhancing the mating interface's durability and preventing damage during wire handling, such as fish-hooking.
Operating safely within the temperature span from -25°C to 105°C, this crimp terminal maintains stable performance under varying environmental conditions. The maximum contact resistance of 10 milliohms minimizes electrical losses, thereby ensuring consistent signal or power transmission.
The crimp termination ensures secure mechanical and electrical connections that comply with industry standards. Molex’s meticulous manufacturing process ensures the terminal meets the highest quality standards, with country of origin as Japan, known for precision in electronic component fabrication.
This female crimp terminal is widely used in communication and networking applications, where reliable and dependable wire connections are critical to system integrity and performance. The compatibility with the SPOX series connectors makes it an essential component for modular electronic assembly systems.
Phosphor bronze contact with tin plating for enhanced conductivity and corrosion resistance. Spring box style design for multiple points of contact and durability. Crimp termination type compatible with SPOX 5194 connector housing.
Supports 24 AWG to 18 AWG wire sizes for versatile wiring options. Operating temperature range of -25°C to 105°C. Maximum contact resistance of 10 milliohms. Rated current of 7 amperes suitable for communication and networking devices.
Manufactured in Japan ensuring premium quality and reliability.
Explore our range of electronic components and connectors at EnvMart for high-quality Molex products designed for industrial, laboratory, communication, HVAC, and manufacturing applications.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal is rated for a maximum continuous current of 7 amperes.
It supports wire sizes from 24 AWG minimum to 18 AWG maximum, accommodating a range of wiring needs.
The terminal operates reliably within a temperature range of -25°C to 105°C.
The contact material is phosphor bronze, which is tin plated for enhanced conductivity and corrosion resistance.
The crimp termination type provides a secure mechanical and electrical connection, ensuring high electrical reliability during use.
The maximum contact resistance is 10 milliohms, which helps minimize electrical losses.
Yes, it is designed to be compatible with SPOX connector housing series 5194, allowing for secure wire termination.
This model is manufactured in Japan, ensuring high-quality standards in production.
It features a spring box style design that provides multiple contact points, enhancing durability and preventing damage during wire handling.
This terminal is ideal for communication and networking applications that require reliable wire connections.
The minimum wire size it can accommodate is 0.2 mm².
The maximum wire size for this terminal is 0.8 mm².
