Molex C-Grid Series Straight Through Hole PCB Header 40 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-4004

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid Series Straight Through Hole PCB Header 40 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-4004

Name: Molex C-Grid Series Straight Through Hole PCB Header 40 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-4004
Brand: Molex
SKU: 100958
Price: 3.44 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	2.5A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	C-Grid
Termination Type	Solder
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.43mm
Mating Pin Length	2.54mm

Key Features

Features a 2-row, straight orientation suitable for PCB wire-to-board connection.
Constructed with polybutylene terephthalate housing for durability.
Phosphor bronze contacts plated with gold ensure reliable conductivity.
Rated for 250V voltage and 2.5A current for standard electronic applications.
Operates reliably between -55°C and 120°C temperature range.
Mating pin length of 2.54 mm with tail pin length of 3.43 mm aids secure soldered termination.
Shrouded design improves protection and secure mating of connectors.
Designed as per Molex C-Grid series standards, mates with 70058 series terminals.

Product Description

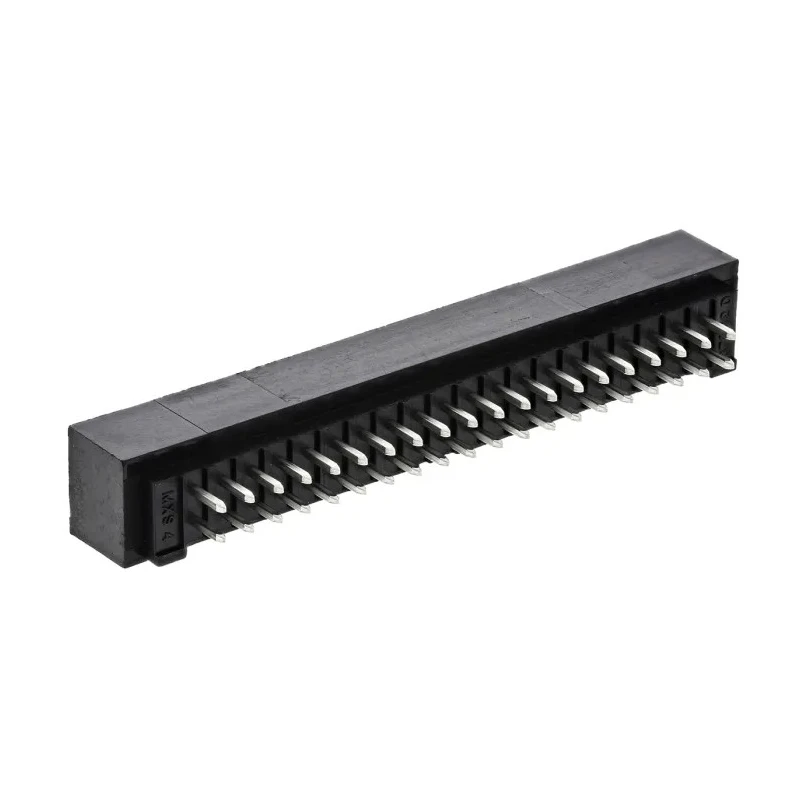

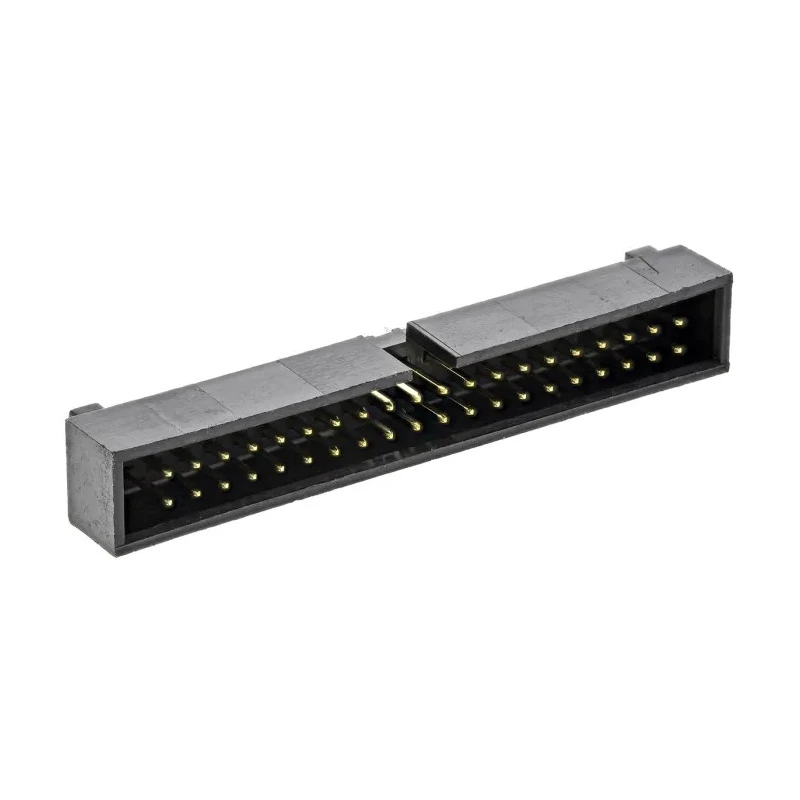

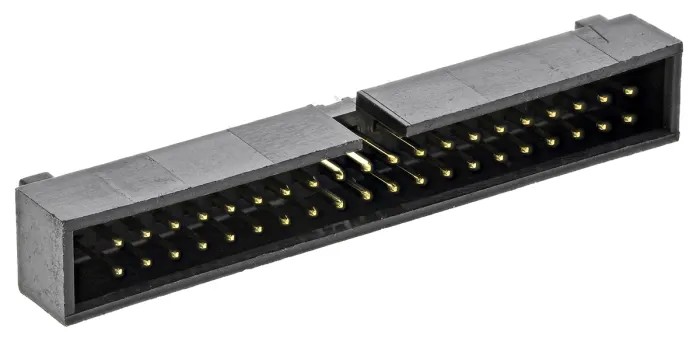

Molex 70246-4004 C-Grid Series Straight Through Hole PCB Header features 40 male contacts arranged in two rows with a 2.54 mm pitch and shrouded housing constructed from polybutylene terephthalate. It is engineered for robust wire-to-board connectivity with through-hole type solder termination.

Contacts are made of phosphor bronze plated with 0.38 µm gold to ensure excellent electrical performance and corrosion resistance. Rated for use at 250 volts and 2.5 amperes, this header operates reliably in industrial and electronic manufacturing environments across a temperature range from -55°C up to 120°C.

The header provides a mating pin length of 2.54 mm and a tail pin length of 3.43 mm to facilitate secure soldering onto printed circuit boards. Its shrouded, straight orientation design enhances connector protection and prevents misalignment during assembly.

This product suits applications in industrial equipment, electronics manufacturing, laboratory instrumentation, HVAC controls, and other environments demanding dependable PCB connector solutions. It mates typically with Molex 70058 series terminals.

Two-row, 40-contact PCB header with 2.54 mm pitch. Gold-plated phosphor bronze contacts for enhanced conductivity. Polybutylene terephthalate housing provides mechanical strength. Supports 250V and 2.5A electrical ratings.

Operating temperature from -55°C to 120°C ensures environment resilience. Through-hole mount type with solder termination. Shrouded connector system reduces mating errors and increases durability. Ideal for electronic component manufacturing and industrial automation.

Choose Molex C-Grid 70246-4004 for consistent, high-quality PCB connectivity solutions. Explore our Electronics Components and PCB Headers category for additional options and compatible accessories.
