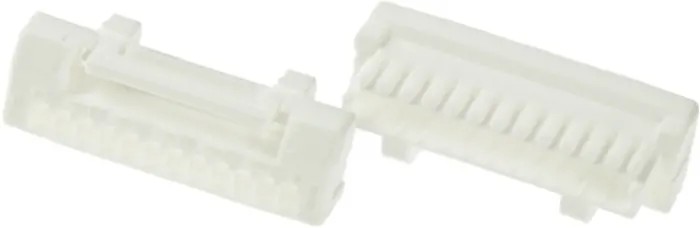

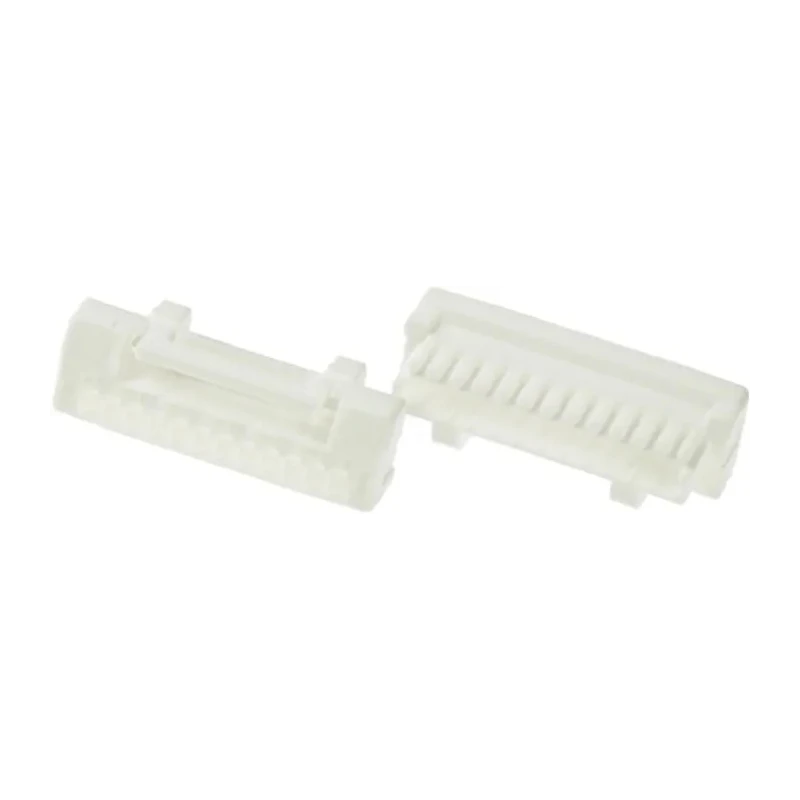

Molex CLIK-Mate Male Connector Housing 1.25 mm Pitch 12 Way 1 Row Straight 502380-1200
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 16.25mm |
| Width | 5.45mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | CLIK-Mate |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | CLIK-Mate Wire-to-Board Connector |
| Number of Contacts | 12 |
| Connector Gender | Male |
Key Features
- Features a 1.25 mm pitch for compact connection spacing.
- Includes 12 contact ways arranged in a single row.
- Constructed from durable polybutylene terephthalate housing material.
- Designed for cable mount installation with straight orientation.
- Robust positive lock mechanism provides secure mating retention.
- Compatible with CLIK-Mate wire-to-board connectors.
- Ideal for applications requiring high pin counts in limited space.
- Originates from Japan ensuring consistent quality standards.
Product Description
Molex 502380-1200 male connector housing is a high-quality wire-to-board connector component featuring a 1.25 mm pitch with 12 ways arranged in a single row straight configuration, suitable for precise electronic connection scenarios.
This connector housing is made of polybutylene terephthalate material, providing excellent durability and electrical insulation. The CLIK-Mate series is known for its ease of use and superior mating retention, achieved through its robust positive lock design ensuring secure connections even in demanding industrial environments.
The unique tuning-fork terminal concept reduces insertion force while ensuring secure mating contact, effectively facilitating assembly operations. Its compact design allows about 60% space saving compared to similar 2.00 mm pitch dual-lock connectors, making it ideal for tight-space applications like LCD TVs and other high-density signal devices.
The cable mount type and straight orientation allow versatile usage in manufacturing and industrial electronic assemblies. The housing’s design supports direct vacuum pick-and-place processes, eliminating the need for capton tape and increasing automation efficiency.
This product does not carry specific standards or approvals but maintains high manufacturing standards being made in Japan. 1.25 mm pitch compact connector for space-efficient wiring. 12 contacts arranged in a single row ensuring multiple signal connections.
Polybutylene terephthalate housing for mechanical and electric resilience. Robust locking mechanism providing secure mating assurance. Compatible with CLIK-Mate wire-to-board connector systems. Facilitates automation with vacuum pick-and-place compatibility.
Designed for industrial electronic assemblies including LCD TV manufacturing. Compact design offers significant space savings over larger pitch variants.
Suitable for industrial manufacturing, electronic component assembly, and commercial electronic device production requiring reliable wire-to-board connections. Explore more quality Connectors and accessories in the Electronics Components category on EnvMart for your industrial and technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.25 mm, allowing for compact connection spacing.
This model features 12 contacts arranged in a single row.
The housing is constructed from polybutylene terephthalate, which provides durability and electrical insulation.
It is designed for cable mount installation with a straight orientation.
Yes, it is compatible with CLIK-Mate wire-to-board connectors.
The dimensions of the housing are 16.25 mm in length and 5.45 mm in width.
This model has 1 row for the arrangement of contacts.
It is suitable for industrial electronic assemblies, including applications like LCD TV manufacturing.
It features a robust positive lock mechanism that provides secure mating retention.
Yes, its design supports direct vacuum pick-and-place processes, enhancing automation efficiency.
This product originates from Japan, ensuring consistent quality standards.
It belongs to the CLIK-Mate series, known for its ease of use and secure connections.
