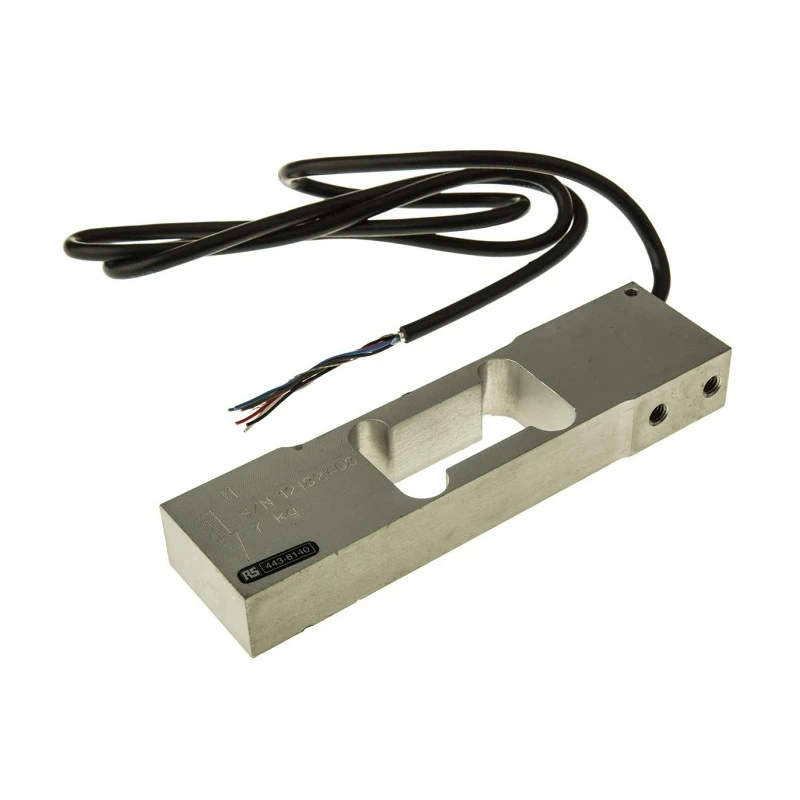

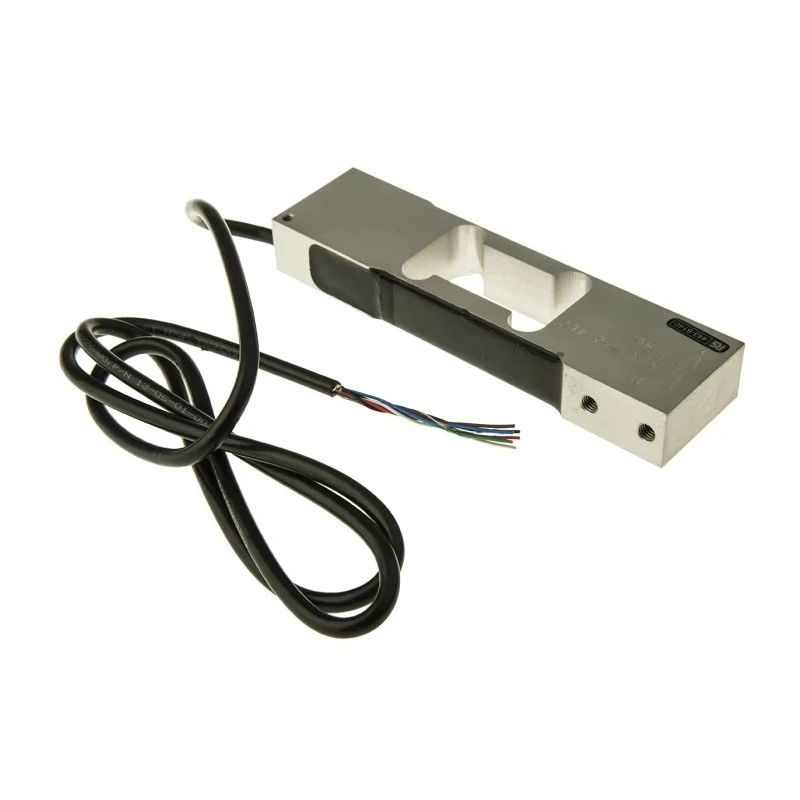

Tedea Huntleigh Low Profile Aluminium Single Point Load Cell Compression Force Measurement 1 kg to 7 kg 1042-0007-F000-RS

Tedea Huntleigh 1042-0007-F000-RS is a low profile single point load cell designed for precision compression force measurement between 1 kg and 7 kg. Constructed from robust aluminium, this sensor features a humidity resistant protective coating ensuring long-term stability across its compensated temperature range of -10°C to 40°C. Its compact dimensions of 20 mm depth, 40 mm length, and 150 mm width allow for direct mounting on economical weighing platforms.

This load cell supports a maximum AC/DC voltage of 15V and offers an ultimate overload rating of 300% of the rated load, providing secure operation even under unexpected force spikes. The cable termination type ensures reliable and convenient electrical connections while maintaining high accuracy with an output impedance of 350 ± 3 ohms.

With an IP66 ingress protection rating, this product is suitable for demanding industrial, manufacturing, laboratory, and automation applications where environmental resilience and precise load measurement are critical. The 1042 series complies with OIML and NTEP standards guaranteeing compliance with international norms.

Applications include industrial weighing systems, process control, quality assurance, and force measurement in automation systems. The load cell's aluminium housing provides excellent mechanical strength with moderate weight, facilitating installation and maintenance.

Please explore the wider range of Tedea Huntleigh load cells and compatible output signal conditioners available for tailored configurations. The load cell features a low profile aluminium construction ensuring durability and stability.

It provides excellent humidity resistance for long-term operational reliability. Equipped with an IP66 rating, it is suitable for harsh industrial environments. The load cell supports a maximum operating temperature of 40°C and minimum temperature of -10°C.

It offers an ultimate overload capacity of 300% of the rated load for enhanced protection. Termination is via a durable cable, facilitating easy electrical connections. The sensor is designed for direct mounting of cost-effective weighing platforms.

Dimensions measure 20 mm depth, 40 mm length, and 150 mm width to fit compact spaces. It complies with OIML and NTEP standards, ensuring precise and reliable measurements. Find more precision Load Cells and automation sensors by browsing the Electronics & Electricals catalog at EnvMart.
