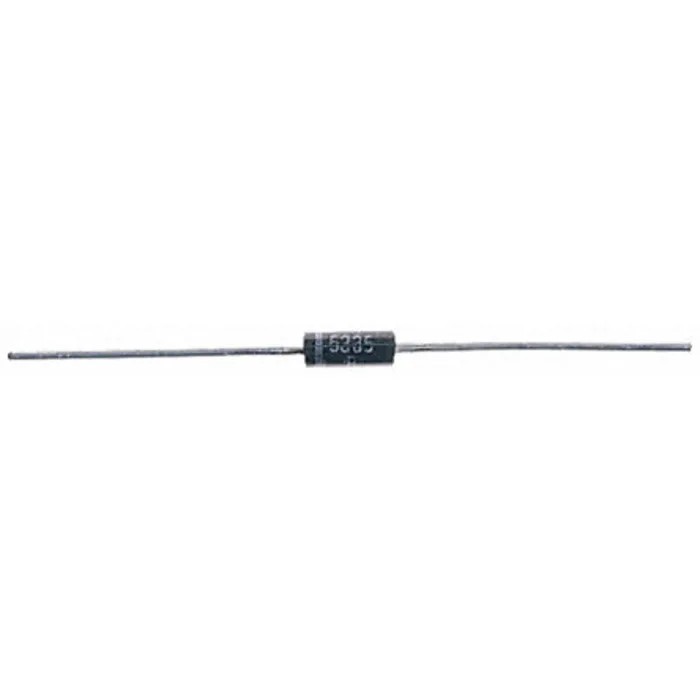

onsemi Voltage Regulator Zener Diode 75V 5W Through Hole 2-Pin Case 017AA 1N5374BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5374BRLG |
| Mount Type | Through Hole |
| Series | 1N5374B |
| Maximum Operating Temperature | 200°C |
| Package Type | Case 017AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 75V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 45Ω |
| onsemi, 75V Zener Diode 5% 5 W Through Hole 2-Pin 017AA-01Brand | ON Semiconductor |
Key Features
- This diode operates with a nominal Zener voltage of 75 volts.
- Maximum power dissipation is rated at 5 watts, suitable for various electronic applications.
- It features a low maximum reverse leakage current of 500 nA ensuring energy efficiency.
- The diode's maximum Zener impedance is 45 ohms, allowing stable voltage regulation.
- Test current for the device is specified at 20 mA.
- Operating temperature ranges from -65°C to 200°C ensuring reliability under harsh conditions.
- Mounting type is through hole with 2 pins for ease of PCB integration.
- Package dimension length is 8.89 mm and height is 3.68 mm, compatible with standard layouts.
Product Description
onsemi 1N5374BRLG is a 75 Volt, 5 Watt Zener Diode designed for precise voltage regulation in electronic circuits. This diode features a through hole mounting style with a 2-pin Case 017AA package, making it suitable for easy integration into PCBs and other through hole assemblies.
The diode configuration is single element, providing stable voltage regulation with a maximum power dissipation of 5 watts. It exhibits a nominal Zener voltage of 75 volts with a tight 5% tolerance, ensuring accuracy in controlling voltage levels.
Electrical characteristics include a maximum reverse leakage current of 500 nA and a maximum Zener impedance of 45 Ω at the specified test current of 20 mA, which contributes to efficient and reliable operation. The device operates safely within a temperature range from -65°C to 200°C, supporting durability under demanding industrial environments.
The compact dimensions of 8.89 mm length and 3.68 mm height allow flexible use in various electronic design projects involving power regulation, protection, and voltage stabilization.
This product is ideal for applications in industrial electronics, instrumentation, power supply circuits, and other electronic assemblies requiring voltage regulation. As a product from onsemi, it adheres to high quality standards, suitable for use in commercial and industrial electronic systems.
This diode operates with a nominal Zener voltage of 75 volts. Maximum power dissipation is rated at 5 watts, suitable for various electronic applications. It features a low maximum reverse leakage current of 500 nA ensuring energy efficiency.
The diode's maximum Zener impedance is 45 ohms, allowing stable voltage regulation. Test current is specified at 20 mA. Operating temperature ranges from -65°C to 200°C ensuring reliability under harsh conditions. Mounting type is through hole with 2 pins for ease of PCB integration.
Package dimensions provide compact form factor for design flexibility. New product condition ensures quality and performance reliability. Explore the Electronics & Electricals category at EnvMart for high-quality semiconductors and Zener Diodes to enhance your electronic projects and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 75 volts.
This model has a maximum power dissipation rating of 5 watts.
The maximum reverse leakage current for this diode is 500 nA.
The maximum Zener impedance is 45 ohms at the specified test current.
The test current specified for this diode is 20 mA.
This diode operates within a temperature range from -65°C to 200°C.
It features a through hole mounting type with 2 pins, suitable for PCB integration.
The dimensions of this diode are 8.89 mm in length and 3.68 mm in height.
The diode configuration is a single element, designed for voltage regulation.
This model is packaged in Case 017AA.
The country of origin for this diode is India.
It is suitable for applications in industrial electronics, instrumentation, and power supply circuits requiring voltage regulation.
