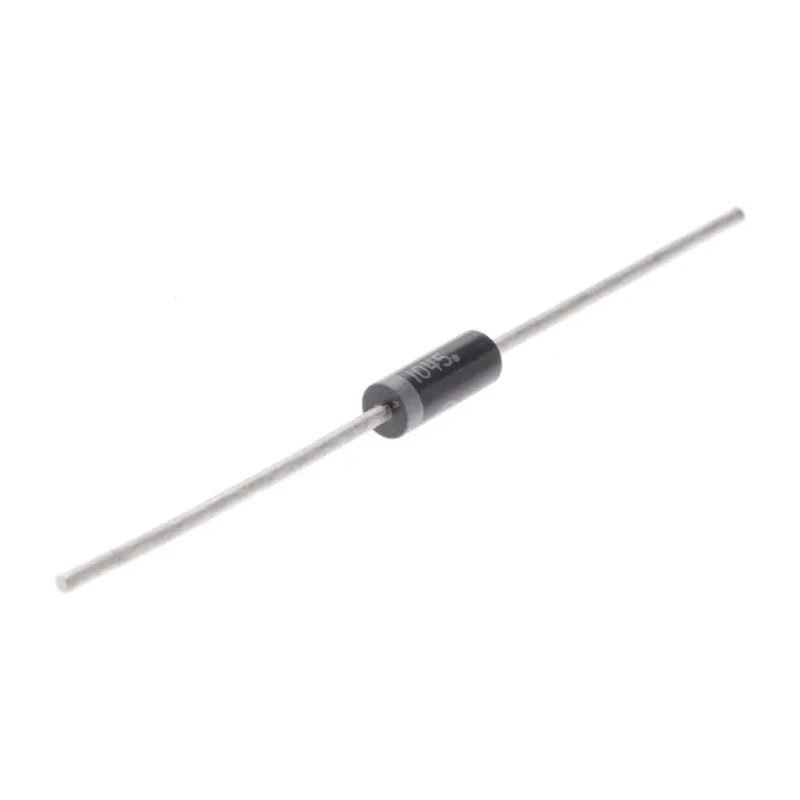

onsemi 130 V Single Zener Diode 5 W Power Dissipation 5% Tolerance Through Hole 2-Pin Case 017AA 1N5381BRLG

onsemi 1N5381BRLG is a durable and precise Zener Diode tailored for voltage regulation needs offering a nominal Zener voltage of 130 V and a power dissipation capacity of 5 W. This single-element diode uses a through-hole 2-pin Case 017AA packaging style to facilitate reliable installation into electronic circuits. It is designed to withstand an operating temperature range from −65°C up to 200°C and features a voltage tolerance of ±5% which ensures consistent performance in varying conditions.

This diode provides low reverse leakage current at 500 nA and maintains a maximum Zener impedance of 190 Ω, essential for minimizing power loss and enhancing efficiency in electronic devices. Its compact form factor with dimensions of 8.89 mm in length and 3.68 mm in height allows for use in high-density PCB layouts. The device is ideal for power management, voltage regulation, and other semiconductor applications in industries such as consumer electronics, automotive electronics, industrial automation, and communication equipment.

The 1N5381BRLG model is well regarded for its high reliability and stability under harsh environments, suitable for laboratory, industrial, and commercial electronic circuits. The product is manufactured with high-quality semiconductor materials adhering to strict manufacturing standards.

This diode has a nominal Zener voltage of 130 volts for voltage regulation applications. Designed as a single-element configuration with a through-hole mount type for easy PCB insertion. Maximum power dissipation of 5 watts, suitable for power management circuits.

Test current specified at 10 mA and maximum Zener impedance of 190 ohms ensures reliable operation. Operates within temperature range from −65°C to 200°C, providing enhanced durability. Low maximum reverse leakage current of 500 nA to minimize power loss in circuits.

Compact dimensions with 8.89 mm length and 3.68 mm height, fitted in Case 017AA packaging. Applicable for use in electronic devices requiring stable voltage reference or regulation.

For electronics engineers and professionals working in semiconductor design and manufacturing, the onsemi 1N5381BRLG offers a dependable solution for maintaining voltage stability. This Zener Diode fits seamlessly into a wide range of electronic assemblies, delivering precise voltage regulation and protecting circuits from voltage fluctuations.
