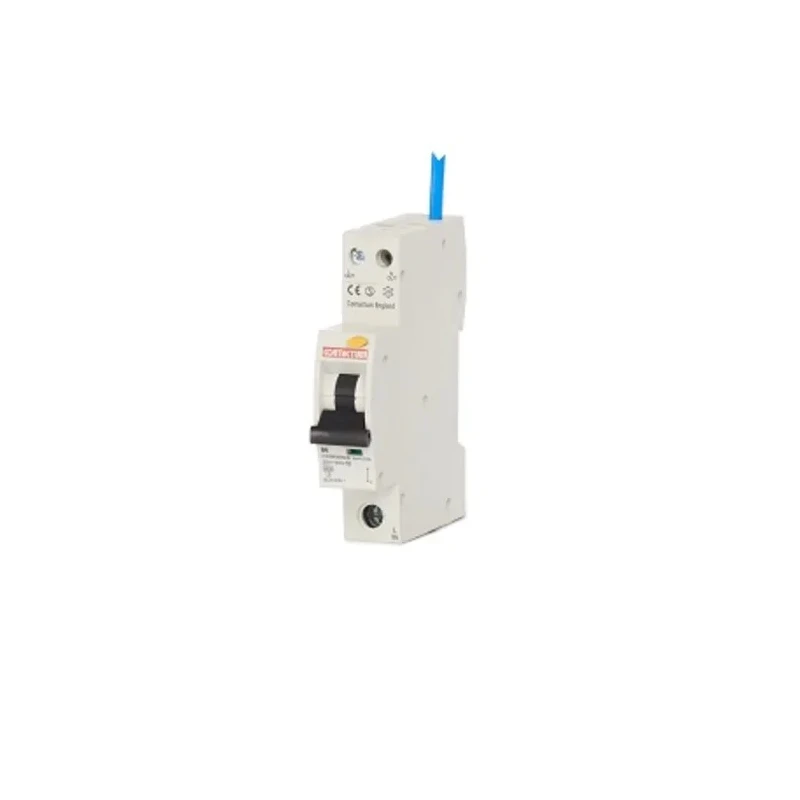

Contactum Residual Current Circuit Breaker with Overload Protection, 6A, 1-Pole, 30mA Sensitivity, DIN Rail, CCPBR0606AB
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 50-60Hz |
| Range | CCPBR |
| Brand | Contactum |
| Colour | White |
| Height | 90mm |
| Model | CCPBR0606AB |
| Depth | 75mm |
| Width | 19mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | Compact |
| Ambient Operating Temperature | -5 to 40°C (24hour average not exceeding 25°C) |
| Terminal type | Screw |
| Rated Voltage | 220-250V |
| Breaking Capacity | 6kA |
| Wiring System | 1 pole |
| Mounting Method | DIN Rail |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, IEC, CE |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
| ABC indicator | A |
| Associated standards | BS EN 61009 |
| Rated kA | 6 |
| Width in number of modular spacing's | 1 |
| Nature of supply | AC |
| Release characteristic | B |
| Contactum RCBO, 6A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type BBrand | Contactum |
Key Features
- Combines overload and earth leakage protection in a single RCBO device.
- Rated current of 6A suitable for residential and commercial circuits.
- Operates at 230V AC and supports frequency range of 50 - 60 Hz.
- Provides Type B tripping characteristics for sensitive protection against faults.
- 1-pole configuration with screw terminal connections for secure installation.
- DIN rail mounting for convenient integration into standard enclosures.
- 30mA trip sensitivity for enhanced personnel safety.
- Robust 6kA breaking capacity ensures safe interruption of fault currents.
Product Description
Contactum CCPBR0606AB Residual Current Circuit Breaker with Overload Protection is engineered to safeguard electrical circuits from overloads, short circuits, and earth leakage faults. It is well-suited for residential, commercial, and light industrial installations where sensitive fault protection is critical. The device ensures quick disconnection in case of earth leakage currents above 30mA, significantly reducing the risk of electric shock or fire.
Featuring a 6A current rating and a single-pole design, this RCBO operates on a 230V AC supply, compatible with 50 - 60 Hz systems. Its Type B tripping characteristic provides enhanced responsiveness to various fault conditions, making it ideal for protecting circuits supplying sockets, lighting, or critical appliances.
The RCBO incorporates a robust thermal magnetic tripping mechanism, ensuring dependable protection against both overcurrent and earth leakage issues. With a compact footprint of 90mm x 19mm x 75mm, it is designed for easy DIN rail mounting in standard electrical panels, maximizing space efficiency.
Combines overload and residual current protection for comprehensive circuit safety. 6A rated current is ideal for branch circuits and low-load applications. 30mA trip sensitivity offers high levels of personal protection against electric shock.
6kA breaking capacity accommodates high prospective fault currents in distribution boards. Type A earth leakage and Type B release characteristics support a wide range of installations. Lever reset actuator allows easy manual operation and reset after tripping.
Reliable operation from -5°C to 40°C, suitable for diverse installation environments. Meets stringent approval standards including RoHS, IEC, and CE.
The Contactum CCPBR0606AB is ideal for applications in homes, offices, retail stores, industrial control panels, and other environments where high reliability and safety in circuit protection are paramount. It is particularly useful for protecting personnel and sensitive equipment from dangerous earth faults and overloads.
Explore EnvMart for more Contactum circuit protection products and related accessories in the Residual Current Circuit Breaker category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 6A, making it suitable for branch circuits and low-load applications.
It features a trip sensitivity of 30mA, providing a high level of personal protection against electric shock.
The breaking capacity is rated at 6kA, allowing it to safely interrupt high prospective fault currents.
The dimensions of this unit are 90mm in height, 19mm in width, and 75mm in depth.
It supports DIN rail mounting, which allows for convenient integration into standard electrical panels.
It operates at a rated voltage of 230V AC, compatible with a frequency range of 50-60Hz.
This unit has Type B tripping characteristics, providing enhanced responsiveness to various fault conditions.
It operates reliably within an ambient temperature range of -5°C to 40°C.
It utilizes a thermal magnetic tripping mechanism to protect against both overload and earth leakage faults.
It meets several standards including RoHS, IEC, and CE, ensuring compliance with safety regulations.
This model is designed with a single pole configuration, suitable for various applications.
It features screw terminal connections, ensuring secure installation and connectivity.
