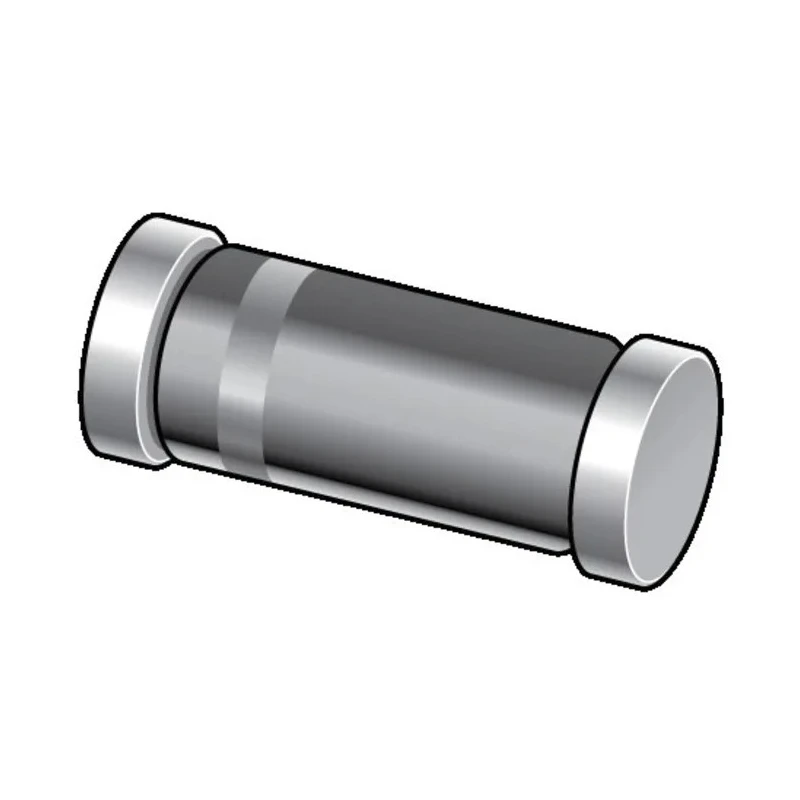

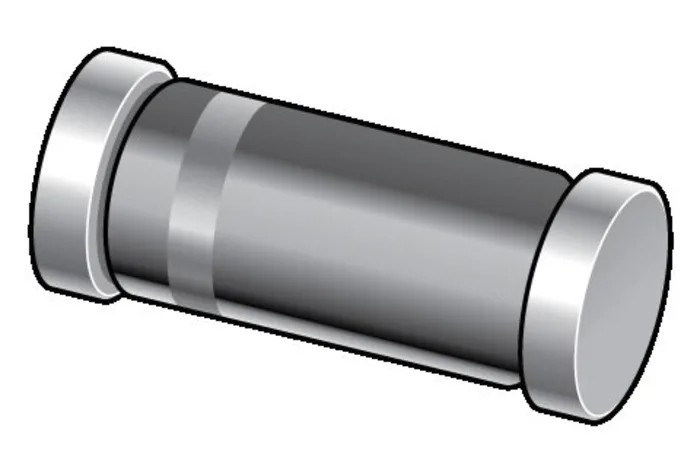

Nexperia 20.4 V 500 mW Single Zener Diode Voltage Regulator Surface Mount 2-Pin SOD-80 BZV55-B20,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 20.4 V 500 mW Single Zener Diode Voltage Regulator Surface Mount 2-Pin SOD-80 BZV55-B20,115

Name: Nexperia 20.4 V 500 mW Single Zener Diode Voltage Regulator Surface Mount 2-Pin SOD-80 BZV55-B20,115
Brand: Nexperia
SKU: 100025
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.6mm
Length	3.7mm
Model	BZV55-B20,115
Mount Type	Surface
Series	BZV55
Maximum Operating Temperature	200°C
Package Type	SOD-80
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	20.4V
Zener Type	Voltage Regulator
Maximum Zener Impedance	55Ω
Typical Voltage Temperature Coefficient	15.6mV/K
Total power dissipation	≤ 500 mW
Non-repetitive Peak reverse power dissipation	≤ 40 W
Two tolerance series	±2 % and ±5 %
Wide working voltage range	nominal 2.4 V to 75 V (E24 range)

Key Features

Nominal Zener voltage of 20.4 V with ±2% tolerance for precise voltage regulation.
Maximum power dissipation of 500 mW ensuring reliable performance in compact circuits.
Low maximum reverse leakage current of 50 nA reducing leakage losses.
Operates over a wide temperature range from -65°C to 200°C for industrial grade reliability.
Low maximum Zener impedance of 55 Ω delivering stable voltage regulation.
Compact surface mount design in hermetically sealed SOD-80 package for high density PCBs.
Test current rated at 5 mA for typical characterization conditions.
Non-repetitive peak reverse power dissipation up to 40 W offers transient protection capacity.

Product Description

The Nexperia BZV55-B20,115 is a surface mount Zener diode designed for voltage regulation in electronic circuits requiring stable voltage references and over-voltage protection.

With a nominal Zener voltage of 20.4 V and a precise ±2% tolerance, this diode provides reliable voltage regulation in low power applications up to 500 mW power dissipation. The compact SOD-80 2-pin package is hermetically sealed, making it suitable for high-density circuit designs requiring robust protection components. Its maximum reverse leakage current of 50 nA and maximum Zener impedance of 55 Ω ensure minimal loss and stable voltage delivery over the operating range.

This diode operates reliably in extreme conditions with a temperature range from -65°C to 200°C, suitable for industrial, laboratory, automotive, and consumer electronics where precise voltage regulation and over-voltage protection are required.

The BZV55-B20,115 supports general regulation and voltage reference functions and is ideal for circuits needing small, low-power voltage regulator diodes. It also provides transient protection with a non-repetitive peak reverse power dissipation rating up to 40 W.

Nexperia offers this diode as part of a broad portfolio covering a wide voltage range from 2.4 V to 75 V with ±2% and ±5% tolerance options to meet diverse design requirements. Nominal Zener voltage of 20.4 V and voltage regulator type diode.

Surface mount SOD-80 package with 2 pins for compact PCB layouts. Maximum power dissipation of 500 mW for low power applications. Wide operating temperature range from -65°C to 200°C for durability. Maximum reverse leakage current of 50 nA for efficiency.

Voltage temperature coefficient of 15.6 mV/K for stability over temperature. Non-repetitive peak reverse power dissipation of ≤ 40 W for transient handling.

This Zener diode is essential for voltage stabilization in industrial controls, power supplies, instrumentation, automotive electronics, and other commercial applications where tight voltage control is critical. Its surface mount design enables seamless integration into compact high-density PCB assemblies.

Explore more semiconductor and Zener diode options in EnvMart’s Electronics & Electricals category for your electronic component needs.

Explore more products in our Zener Diodes category.
