Wurth Elektronik 1210 Shielded Wirewound Surface Mount Inductor 22 μH ±20 % 5.3 A Idc WE-PD 7447709220

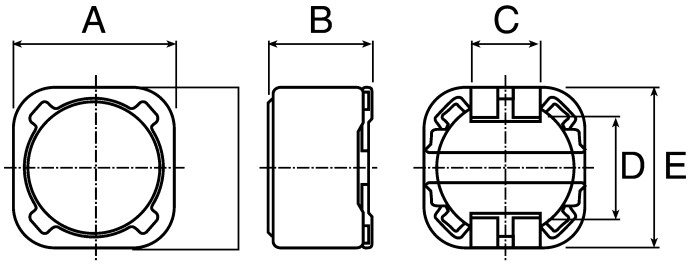

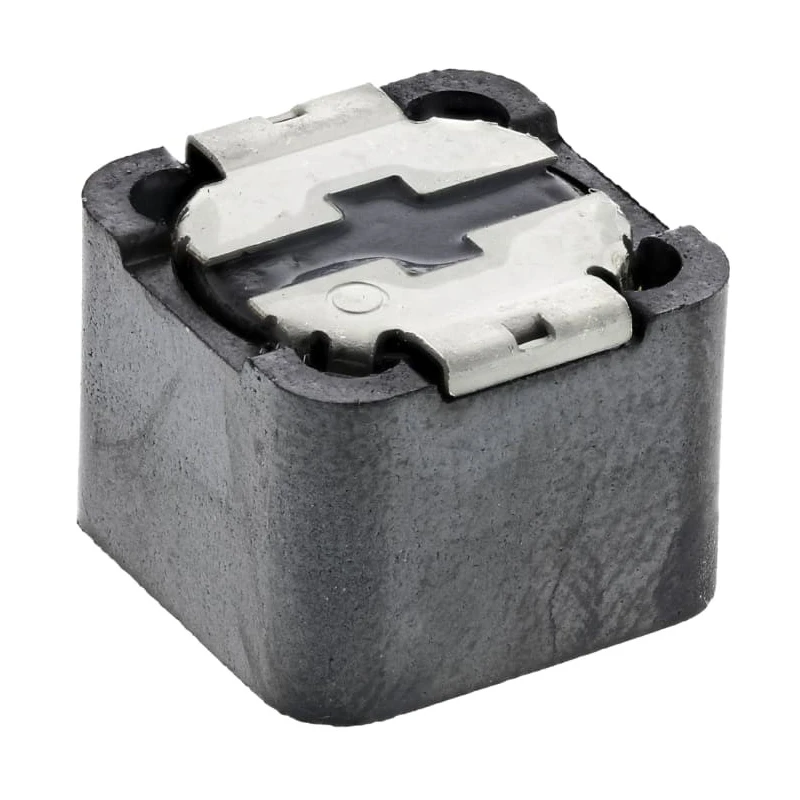

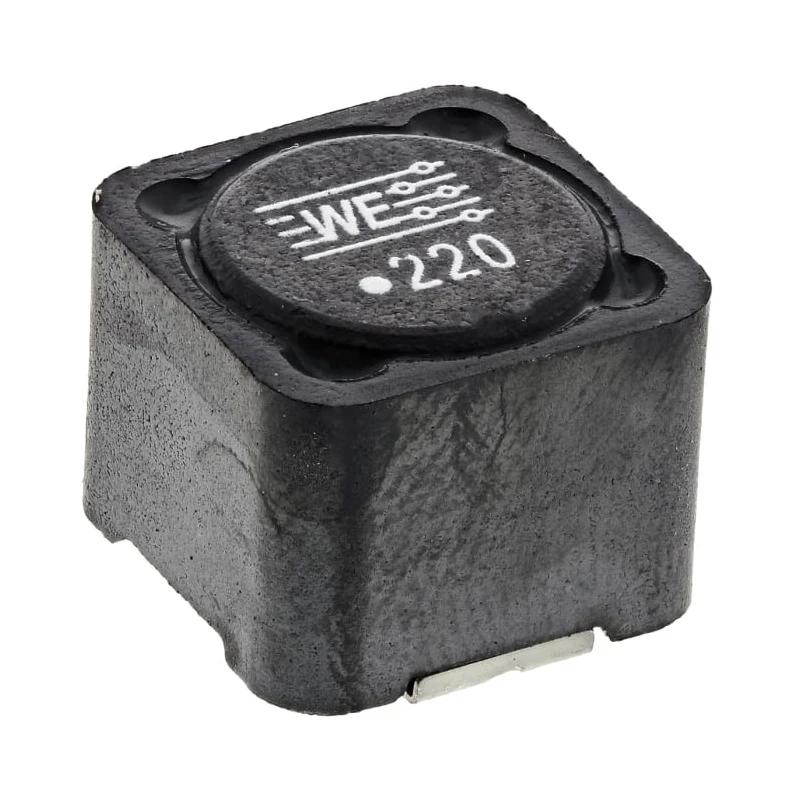

Wurth Elektronik model 7447709220 is a 1210 shielded wirewound surface mount inductor with a ferrite core, featuring an inductance of 22 μH ±20 % and capable of handling a maximum DC current of 5.3 A. This inductor is engineered for surface mount technology (SMT) offering a compact 1210 package size measuring 12 mm length, 12 mm depth, and 10 mm height.

The WE-PD series is magnetically shielded to minimize leakage fields, enabling low electromagnetic interference in electronic circuits. It is molded and designed with wirewound construction for enhanced inductance stability and low self-losses, making it optimal for high current loads in compact designs.

Operating temperature range is from -40°C to +125°C, making it suitable for demanding industrial, automotive, and commercial electronics environments. The product complies with rigorous industry standards such as JEDEC JS709B, RoHS, REACH, and IEC 62024-2-2020, ensuring safety and environmental compliance.

Packaging is tape and reel, supporting efficient automated insertion into printed circuit boards (PCB) during manufacturing. Recommended solder profile is reflow, compatible with standard SMT assembly processes.

Applications include switching regulators operating at low voltages, integrated DC/DC converters, and high-efficiency switching power supplies such as those used in graphics cards. Its robust build and shielding support high current densities with minimal losses, improving overall system performance.

Ferrite core enhances magnetic performance and stability. Shielded design reduces electromagnetic interference and leakage field. Wirewound construction provides low DC resistance and stable inductance. Complaints with automotive AEC-Q200 ensure suitability for automotive electronics.

High maximum DC current of 5.3 A supports demanding power applications. Wide operating temperature range from -40°C to 125°C suits varying environments. Molded for mechanical robustness and reliability in commercial and industrial use.

Tape and reel packaging facilitates automated PCB assembly lines. Meets multiple international compliance standards for quality and safety.

This Wurth Elektronik shielded wirewound surface mount inductor is ideal for industrial electronics manufacturing, power management modules, automotive applications, and advanced computing hardware requiring stable, efficient inductors.
