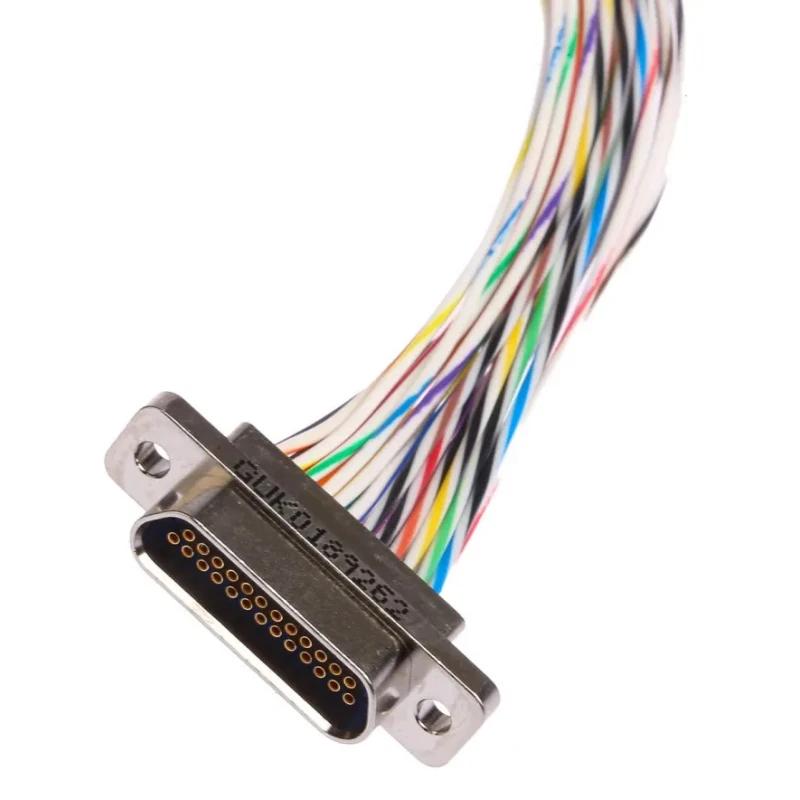

Glenair MWDM 25 Way Straight Through Hole Micro-D D-Sub Connector with Jack Screw Male MWDM2L-25S-6E5-18B
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 600V |
| Brand | Glenair |
| Orientation | Straight |
| Current | 3A |
| Model | MWDM2L-25S-6E5-18B |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Nickel |
| Series | MWDM |
| Mounting Hardware | Jack Screw |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Micro-D |
| RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector FemaleBrand | RS PRO |
| Glenair MWDM 25 Way Straight Panel Mount D-Sub Connector FemaleBrand | Glenair |
Key Features
- Features 25 contacts for secure connections.
- Supports continuous current up to 3 amps.
- Mount type is through hole with straight orientation.
- Constructed with liquid crystal polymer housing for durability.
- Contacts are gold plated TwistPin design with nickel material for corrosion resistance.
- Jack screw mounting hardware ensures secure fixture.
- Operates reliably between -55°C to 150°C temperature range.
- Connector gender and contact gender are male for equipment compatibility.
Product Description
Glenair MWDM2L-25S-6E5-18B is a high-performance 25 way straight through hole Micro-D D-Sub connector designed for robust electronic interface applications in commercial and military environments. Featuring a male connector gender with jack screw mounting, this D-Sub Connector provides a secure and reliable electrical connection capable of handling currents up to 3 amps and voltages of 600 volts.
The connector's body is molded from liquid crystal polymer, enhancing thermal and mechanical durability, and operates effectively across a wide temperature range from -55°C to 150°C. The gold plated TwistPin contacts with nickel material ensure low resistance and high corrosion resistance, suitable for demanding industrial and aerospace applications.
Built with Mil-PRF-83513 and BS9523-F0002 standards in mind, this MWDM series connector also features reliable epoxy and interfacial environmental sealing, making it resistant to shock, vibration, and environmental stresses common in military land, sea, and aerospace use cases.

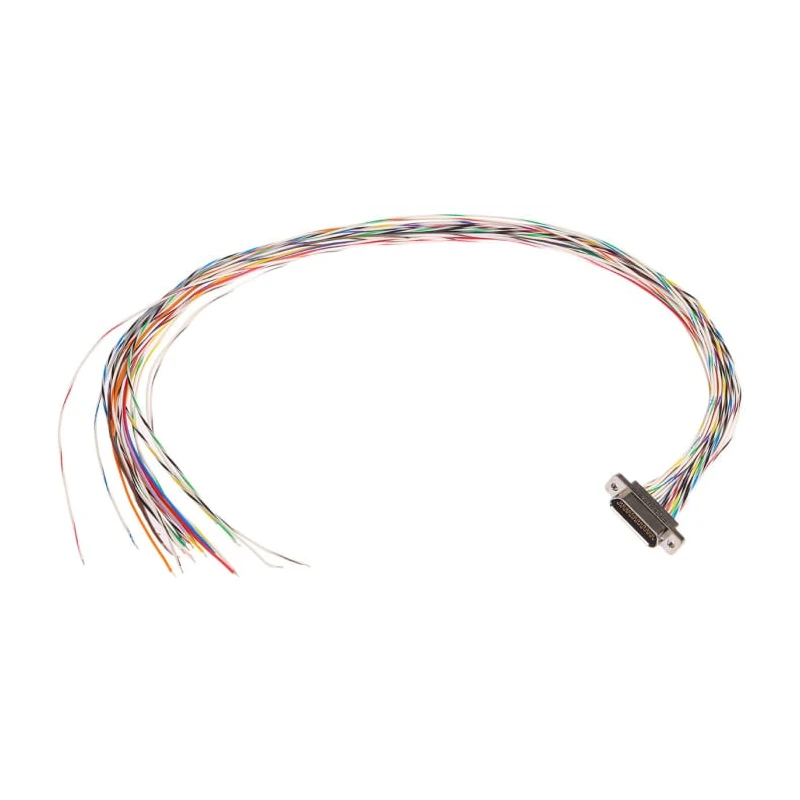

Its compact Micro-D 0.05 inch pitch and 18-inch pigtail wiring facilitate easy integration in high-density electronic systems and equipment requiring rugged performance. 25 contacts ensure comprehensive connectivity for complex systems.
3 amp current rating meets moderate electrical load requirements. Liquid crystal polymer housing for enhanced durability and heat resistance. Epoxy sealed for environmental protection against harsh conditions. Jack screw mounting hardware for secure and stable connection.
Gold plated TwistPin contacts provide low resistance and corrosion resistance. Wide operating temperature range of -55°C to +150°C supports diverse environments. Manufactured in the United Kingdom ensuring compliance with quality standards.
Ideal for military, aerospace, telecommunications, and industrial electronics. Compatible with pigtail wiring length of 18 inches and 26 AWG wire.
This Glenair MWDM series Micro-D connector is an ideal choice for applications demanding rugged reliability, high density connections, and resistance to vibration and environmental extremes. Explore more about Glenair connectors and other electronic components in our Electronics Components section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a continuous current of up to 3 amps.
It operates reliably between -55°C to 150°C, making it suitable for diverse environments.
This connector features 25 contacts for secure connections.
The housing is made from liquid crystal polymer, while the contacts are gold plated with nickel material for corrosion resistance.
It utilizes a through hole mounting type with jack screw mounting hardware for secure fixture.
This connector can handle voltages up to 600 volts.
Yes, it is designed for robust electronic interface applications in commercial and military environments, making it suitable for such uses.
This model has a compact Micro-D 0.05 inch pitch, facilitating integration in high-density electronic systems.
It is compatible with an 18-inch pigtail wiring length and 26 AWG wire.
It is built with Mil-PRF-83513 and BS9523-F0002 standards in mind, ensuring reliability in demanding conditions.
Both the connector gender and contact gender are male, ensuring compatibility with equipment.
This connector is manufactured in the United Kingdom, ensuring compliance with quality standards.
