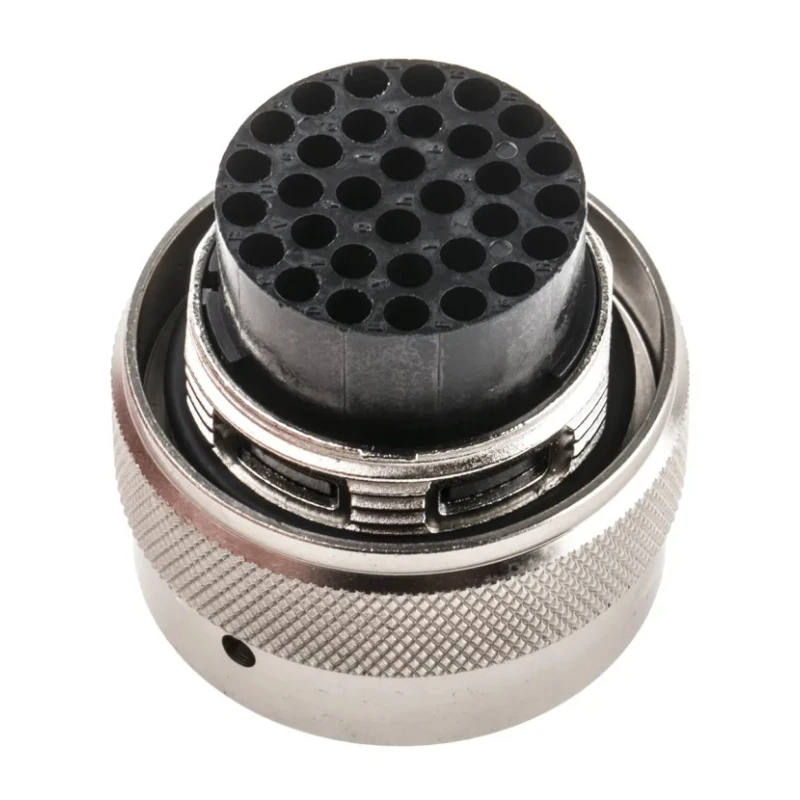

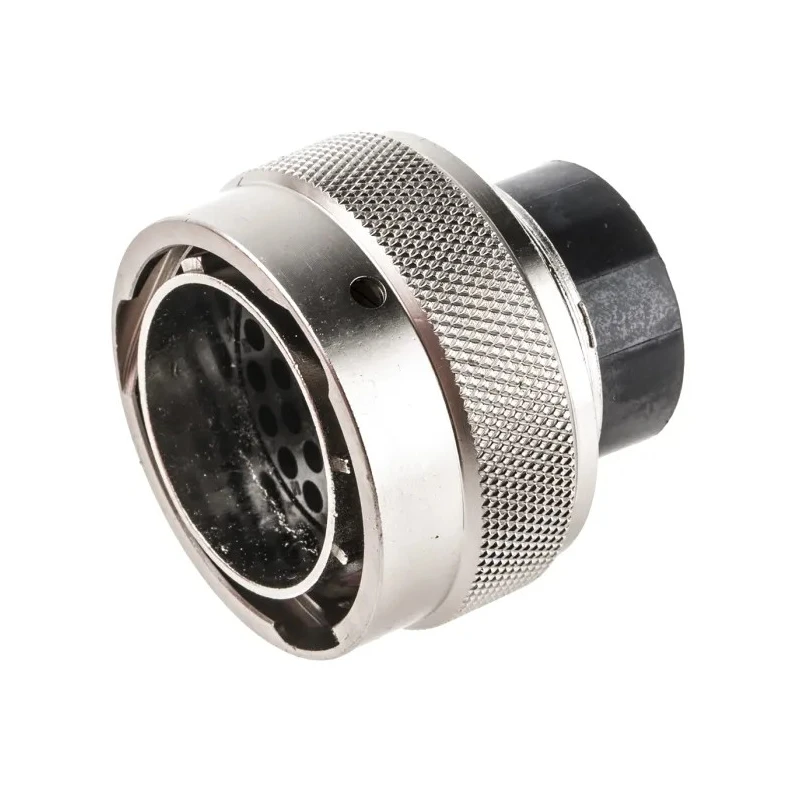

Souriau Sunbank by Eaton MIL Spec Circular Connector UTO Straight 32 Way Cable, Male Contacts, Shell Size 18 UT0W61832PH

Free Delivery in India | Lowest Global Shipping Charges

Souriau Sunbank by Eaton MIL Spec Circular Connector UTO Straight 32 Way Cable, Male Contacts, Shell Size 18 UT0W61832PH

Name: Souriau Sunbank by Eaton MIL Spec Circular Connector UTO Straight 32 Way Cable, Male Contacts, Shell Size 18 UT0W61832PH
Brand: Souriau Sunbank by Eaton
SKU: 192570
Price: 34.89 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Souriau Sunbank by Eaton Condition New

Specifications

Country of Origin	France
Brand	Souriau Sunbank by Eaton
Orientation	Straight
Model	UT0W61832PH
Mount Type	Cable
Housing Material	Aluminium Zinc Alloy
Series	UTO
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Contact Plating	Nickel
Number of Contacts	32
Contact Gender	Male
Connector Gender	Male
Shell Size	18
Military Standard	MIL-DTL-26482
Mating Type	Bayonet
Shell Plating	Nickel

Key Features

Complies with MIL-DTL-26482 military standard for reliability.
Constructed with aluminium zinc alloy housing and nickel plating for durability.
Features bayonet mating type for secure locking and up to 500 cycles.
Operates reliably between -40°C and 105°C temperature range.
Connector termination by crimp type ensuring firm cable connection.
Designed for high-density contact size and male contact gender.
Provides sealed cylindrical metal connectors rated IP68 for environmental protection.
Compatible with TRIM TRIO and UTP series connectors.

Product Description

Souriau Sunbank by Eaton UT0W61832PH Mil Spec Circular Connector features a 32-way straight cable configuration with male contacts and a shell size 18, designed to meet demanding industrial and military requirements. This connector complies with MIL-DTL-26482 standard, ensuring rugged performance and reliability in harsh environments.

The connector housing is made of high-quality aluminium zinc alloy with a nickel-plated shell and contacts, offering excellent corrosion resistance and electrical conductivity. It supports a cable mount type with crimp termination that guarantees a secure and stable cable connection.

The bayonet mating mechanism provides a secure locking system with up to 500 mating cycles, while the 5-pin guiding system ensures correct insertion and alignment. With an operating temperature range from -40°C to 105°C, this connector is suited for extreme environmental conditions.

The sealed cylindrical design delivers an IP68 rating for protection against dust and water ingress, making it ideal for industrial automation, military applications, aerospace, and harsh environment electrical connections.

Compatible with TRIM TRIO and UTP connector series, it allows system flexibility and interchangeability. Complies with MIL-DTL-26482 military standard for reliability. Constructed with aluminium zinc alloy housing and nickel plating for durability.

Features bayonet mating type for secure locking and up to 500 cycles. Operates reliably between -40°C and 105°C temperature range. Connector termination by crimp type ensuring firm cable connection. Designed for high-density contact size and male contact gender.

Provides sealed cylindrical metal connectors rated IP68 for environmental protection. Compatible with TRIM TRIO and UTP series connectors.

This high-performance circular connector is widely used in industrial, military, aerospace, and electronic component applications requiring robust, reliable electrical connections under extreme conditions. Explore more quality connectors and components at EnvMart.
