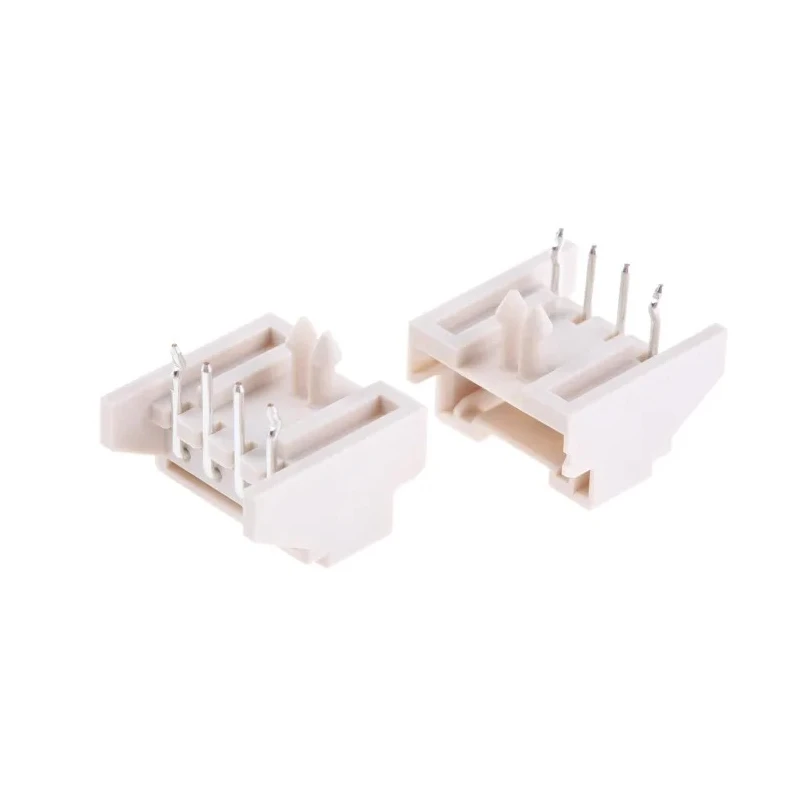

JST XA Series Right Angle Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 1 Row, Shrouded S04B-XASK-1 (LF)(SN)

JST S04B-XASK-1 (LF)(SN) right angle through hole PCB header provides a robust and secure wire-to-board connection solution for electrical and electronic devices. This model features 4 contacts spaced at a 2.5 mm pitch, configured in a single row. Its shrouded housing enhances protection while preventing misalignment during assembly, making it ideal for industrial, manufacturing, and laboratory PCB assemblies.

The connector includes a locking ramp device that firmly secures the mating connector, effectively reducing risk of disconnection caused by vibration or handling. The blue glass-filled PA66 nylon construction of the housing mitigates solder cracking issues, extending the reliability of PCB solder joints under mechanical stress.

Insertion guides and polarization bosses built into the housing further assist in precise alignment and easy insertion during PCB manufacturing processes, thus saving assembly time and reducing errors.

The contact material consists of copper alloy with tin plating, providing excellent electrical conductivity and corrosion resistance. Solder termination facilitates stable and durable PCB mounting. Designed to withstand a current rating of 3 amps and voltage up to 250 volts, this PCB header suits a wide array of low-voltage electronic products.

The connector's operating temperature range spans from -25°C to 85°C, ensuring dependable performance in diverse environmental conditions encountered in industrial and commercial equipment.

Manufactured in Japan, this high-quality JST XA series PCB header meets demanding standards for power and signal integrity in electronic component assemblies. The right angle form factor optimizes PCB space and routing options in compact devices.

This PCB header is designed with a locking ramp to ensure a reliable connection and prevent disconnection through vibration or assembly impacts. Its housing made from glass-filled PA66 nylon effectively prevents solder cracking on the PCB.

Insertion guides and polarization bosses facilitate accurate alignment and easy insertion into PCB sockets. Rated for a maximum current of 3 amps and a voltage of 250 volts, suitable for various electronic applications. The connector features tin-plated copper alloy contacts with solder termination and male contact gender.

Operates reliably within temperatures ranging from -25°C to 85°C. The connector system is wire-to-board with a single row and right angle orientation to optimize PCB layout. Manufactured in Japan, ensuring high quality and compliance with industrial standards.

The shrouded design adds protection and polarization to prevent misalignment or accidental disconnection.

This JST XA series PCB header is widely used for industrial electronics, telecommunications equipment, consumer electronics, and instrumentation. Its reliable connection and robust design make it suitable for assembly lines, manufacturing environments, and prototype development.
