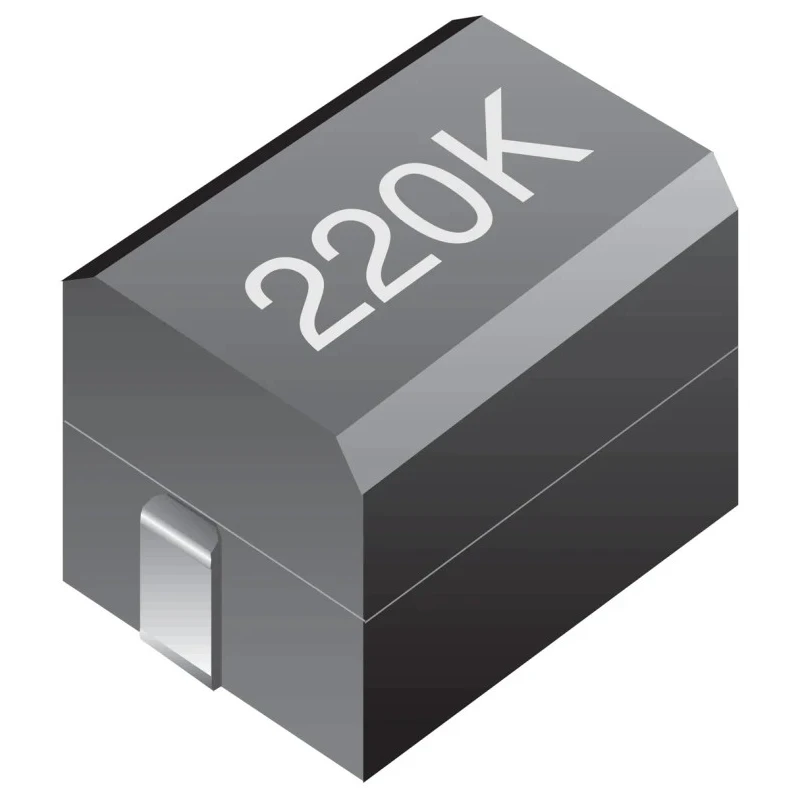

Bourns Shielded Wirewound Surface Mount Inductor 560μH ±10% 50mA Idc 3MHz Q30 CM453232

Bourns CM453232 shielded wirewound surface mount inductor offers 560μH inductance with a tolerance of ±10%, supporting a maximum DC current of 50mA. The device operates on a ferrite core, providing reliable inductive performance with low losses and stable frequency response up to 3MHz. Designed for surface mount technology (SMT) assembly, the inductor is housed in a compact 453232 case package measuring 4.5mm in length, 3.2mm in height, and 3.2mm in depth, making it suitable for space-constrained applications.

This inductor is designed for use in electronic devices requiring efficient filtering, energy storage, and noise suppression, such as power supplies, communication equipment, and automotive electronics. Its moulded wirewound construction ensures durability and stability under mechanical stress and temperature variation, functioning reliably from -20°C up to 100°C. The component complies with RoHS standards, endorsing its environmental safety.

Key technical features include a maximum DC resistance of 30Ω that contributes to minimal power loss, shielding to reduce electromagnetic interference, and a pin count of 4 for secure PCB mounting. The high quality factor of 30 ensures the device maintains effective inductance at its operational frequency range, making it suitable for demanding electronic circuit applications in industrial and consumer electronics.

The inductor employs a ferrite core for efficient magnetic performance. It is housed in a 453232 package case with 4.5mm length and 3.2mm height and depth dimensions. Operating temperature range from -20°C to 100°C suits various environmental conditions.

The inductor is RoHS compliant, moulded, and designed for surface mount termination style. It has a maximum DC resistance of 30Ω and a maximum self-resonant frequency of 3MHz. The device provides a minimum quality factor of 30 ensuring low losses at operating frequencies.

Constructed using wirewound technology for stable inductive characteristics. Pin count is 4, with shielding to minimize electromagnetic interference.

This product is ideal for use in electronic components, power and connectors, and surface mount inductors sectors. The CM453232 is a dependable choice in manufacturing, industrial electronics, and advanced electrical circuits. For more electronic components and Surface Mount Inductors, explore EnvMart’s extensive catalog.
