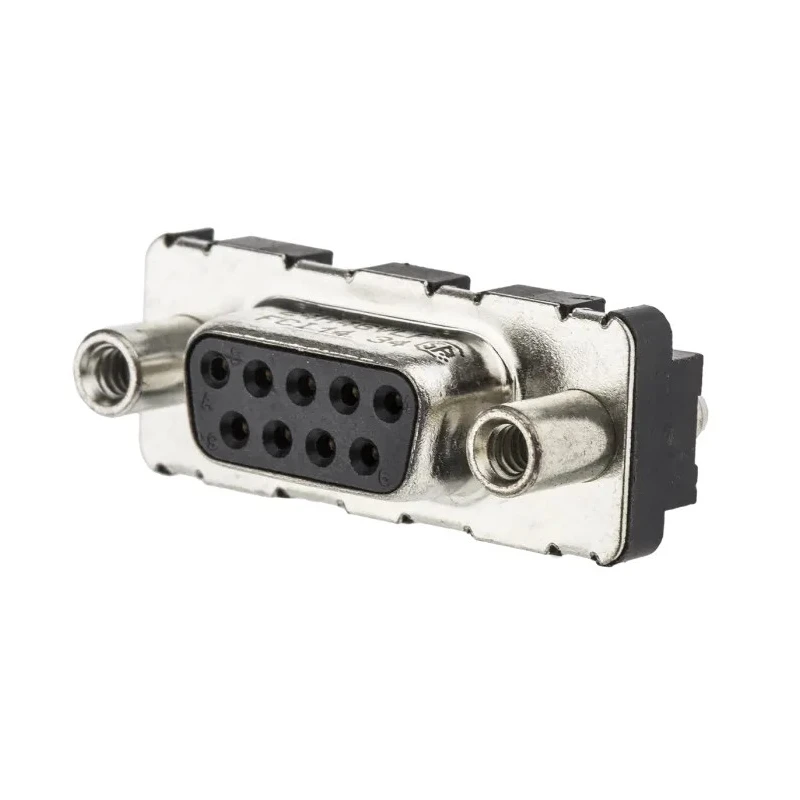

Amphenol Communications Solutions Delta D 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector Female D09S24A4GV00LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300.0V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 5A |
| Model | D09S24A4GV00LF |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Delta D |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | D |
| 9 WAY SOCKETBrand | FCI |
Key Features
- 9 contacts providing a secure and reliable electrical connection.
- Straight orientation suitable for PCB mounting.
- Through hole mounting type ensuring mechanical stability.
- Female connector gender with phosphor bronze contacts plated with gold over nickel.
- Polybutylene terephthalate housing material offers excellent durability and resistance.
- Rated for 5A current and 300 V voltage operation.
- Operating temperature range from -55°C to 125°C for versatile applications.
- Locking latch and 4-40 UNC jack posts for secure coupling and grounding continuity.
Product Description
Amphenol Communications Solutions model D09S24A4GV00LF is a Delta D series 9 Way Straight D-Sub Connector designed for through hole mounting on printed circuit boards (PCBs). It features a 2.74 mm pitch and a female connector gender that ensures compatibility with many industrial and commercial electronic applications.
The connector uses phosphor bronze contacts with a gold over nickel plating, enhancing electrical conductivity and providing corrosion resistance. Its housing is made from high-quality polybutylene terephthalate, providing durability and stability in varied operating environments.
This D-Sub Connector is rated for a current of 5A and operates at a voltage of 300 V, withstanding temperatures ranging from -55°C to 125°C. The shell size is D, and it includes a locking latch and 4-40 UNC jack posts to maintain secure connector coupling to the PCB during assembly and provide grounding continuity, rated for 200 mating cycles. The shell is tinned with dimpled plug shells to enhance grounding effectiveness.
Its solder termination type allows for stable PCB connections, making it suitable for demanding applications including military, industrial systems, commercial electronics, and complex computer interfaces. For IDC D types, the 'Speedbloc' range is recommended as an alternative series.
9 contacts for robust electrical connectivity. Straight orientation and through hole mount for secure PCB integration. Gold over nickel plated phosphor bronze contacts for enhanced conductivity and corrosion resistance. Durable polybutylene terephthalate housing suitable for harsh environments.
Rated for 5A current, 300 V voltage, and temperatures from -55°C to 125°C. Locking latch and 4-40 UNC jack posts provide secure coupling and grounding continuity. Shell size D with tinned, dimpled plug shells rated for 200 mating cycles.
Solder termination type for reliable connection. Applications include military, industrial, commercial, and computer interfacing. This product is new and sourced from Amphenol Communications Solutions, ensuring quality and performance for electronic component assemblies.
Explore EnvMart's Electronics Components category for more connectors and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 5A.
It can operate at a voltage of up to 300V.
The operating temperature range is from -55°C to 125°C.
This D-Sub connector features 9 contacts.
It uses a through hole mounting type, suitable for PCB integration.
The pitch size of the contacts is 2.74 mm.
The contacts are made of phosphor bronze with gold over nickel plating, while the housing is made from polybutylene terephthalate.
Yes, it includes a locking latch and 4-40 UNC jack posts for secure coupling.
The shell size is D.
The termination type is solder, allowing for stable PCB connections.
It is suitable for military, industrial systems, commercial electronics, and complex computer interfaces.
The connector is rated for 200 mating cycles, ensuring durability during use.
