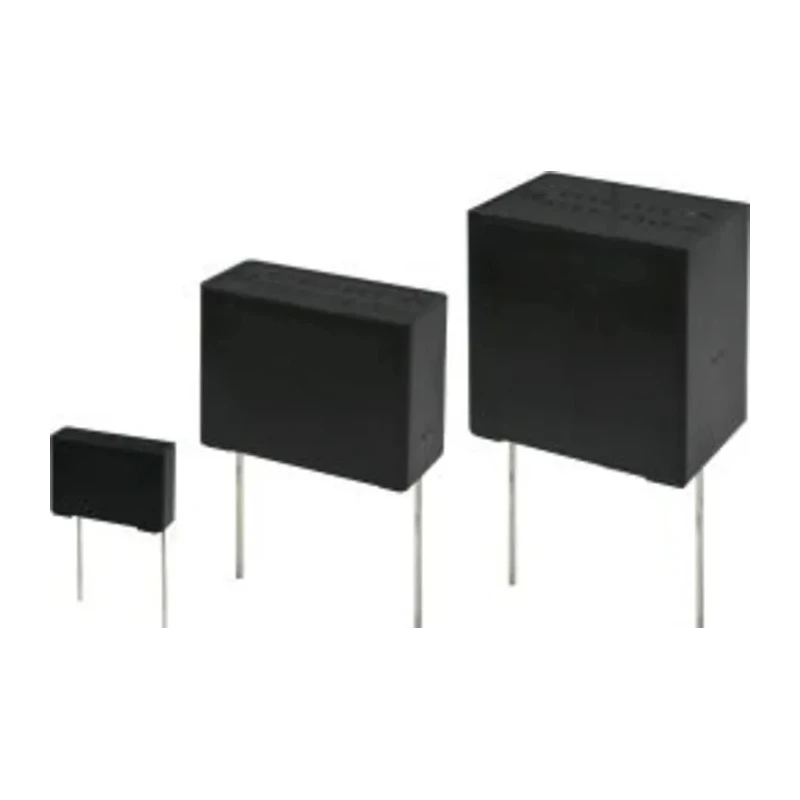

Panasonic ECQUA Film Capacitor X2, ±10 %, 150 nF 275V AC Through Hole ECQUAAF155TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 22mm |
| Length | 31mm |
| Model | ECQUAAF155TA |
| Packaging | Bag |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±10 % |
| Capacitance | 150nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Dissipation Factor | 0.1% |
| Lead Length | 4mm |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 27.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| High humidity resistance (THB test | 85 °C, 85 %, 240 V.AC, 1000 h ) |
Key Features
- Capacitance tolerance is ±10 % ensuring reliable performance.
- Rated AC voltage of 275V AC suitable for automotive and electronic applications.
- Mount type is Through Hole with solder terminal for secure PCB installation.
- Automotive standard AEC-Q200 certified for high reliability in harsh environments.
- Operating temperature range from -40°C to 110°C supports diverse conditions.
- Lead pitch is 27.5mm with lead length of 4mm and diameter 0.8mm for easy assembly.
- Flame-retardant plastic case with non-combustible resin enhances safety.
- High humidity resistance and thermal shock resistance ensures durability.
Product Description
Panasonic ECQUAAF155TA Film Capacitor X2 is a high safety, through-hole film capacitor designed for interference suppression in automotive and electronic applications. It offers a capacitance of 150 nF with a tolerance of ±10 % and a rated AC voltage of 275V AC.
This capacitor meets stringent automotive standard AEC-Q200, ensuring reliable operation in automotive systems and harsh environments. The device is built with a flame-retardant plastic case and non-combustible resin, providing enhanced safety and durability.
Operating temperature ranges from -40°C to 110°C, with high humidity resistance verified by THB testing (85 °C, 85%, 240 V.AC, 1000 hours) and high thermal shock resistance (-40 °C to 85 °C, 1000 cycles) to ensure stable performance under extreme conditions.
Mechanical features include a lead pitch of 27.5 mm, lead length of 4 mm, and lead diameter of 0.8 mm, facilitating easy insertion and soldering on PCBs. The compact size of 31 mm length, 22 mm height, and 12 mm width supports space-efficient electronic designs.
Capacitance tolerance is ±10 % ensuring reliable performance. Rated AC voltage of 275V AC suitable for automotive and electronic applications. Through Hole mount type with solder terminal for secure PCB installation. Automotive standard AEC-Q200 certified for high reliability in harsh environments.
Operating temperature range from -40°C to 110°C supports diverse conditions. Flame-retardant plastic case and non-combustible resin provide enhanced safety. High humidity and thermal shock resistance ensures durability and reliability.
Low dissipation factor of 0.1% enhances efficiency. Compact dimensions fit tight electronic assembly spaces.
This capacitor is ideal for interference suppression applications in automotive electronics, industrial electronics, power supplies, and other demanding environments. Designed to meet UL 60384-14, CSA E60384-14, and EN 60384-14 standards, it provides dependable performance for critical electrical systems.
Explore more Panasonic Film Capacitors and electronic components in EnvMart's Electronics Components category for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 150 nF with a tolerance of ±10%.
It has a rated AC voltage of 275V AC, making it suitable for automotive and electronic applications.
The capacitor has dimensions of 31 mm in length, 22 mm in height, and 12 mm in width.
This unit uses a through-hole mount type with solder terminals for secure PCB installation.
The lead pitch is 27.5 mm, with a lead diameter of 0.8 mm, facilitating easy assembly.
It meets the automotive standard AEC-Q200 and is designed to comply with UL 60384-14, CSA E60384-14, and EN 60384-14 standards.
The capacitor is built with a flame-retardant plastic case and non-combustible resin, enhancing safety and durability.
The dissipation factor is 0.1%, which enhances the efficiency of the capacitor.
This model is designed for interference suppression in automotive electronics, industrial electronics, and power supplies.
The lead length of this capacitor is 4 mm, aiding in easy insertion and soldering on PCBs.
