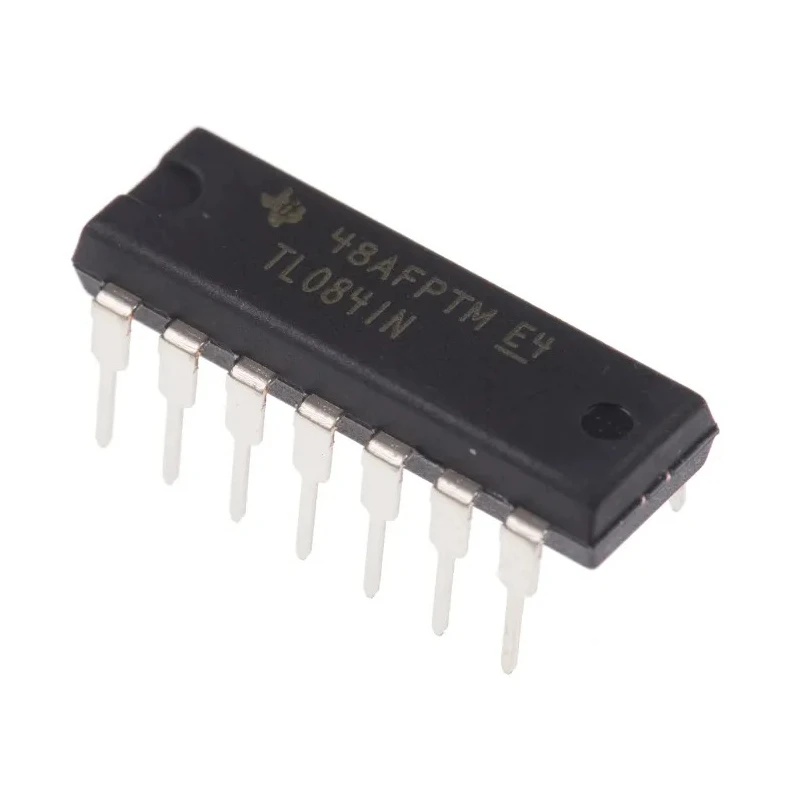

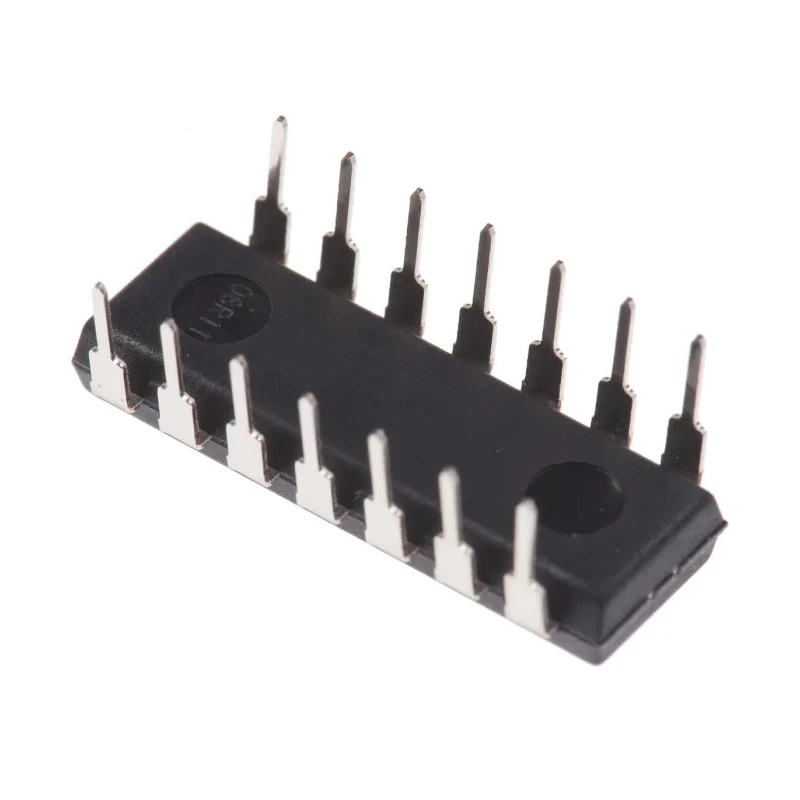

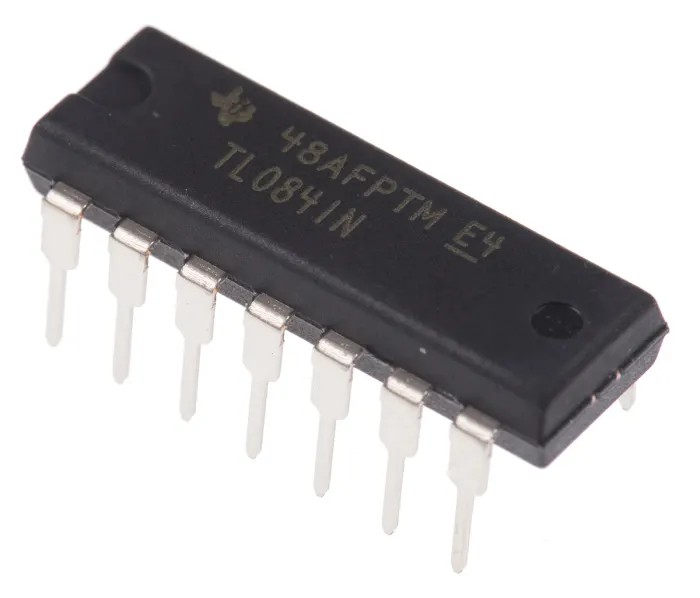

Texas Instruments Operational Amplifier 3 MHz 14-Pin 15V PDIP TL084IN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL084IN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL084 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 10 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- Offers low input bias current with JFET input stage for high impedance.
- Wide supply voltage range from ±5 V to ±15 V for flexible use.
- High slew rate of 13 V/μs ensures fast signal response.
- Low total harmonic distortion of 0.003% provides clean amplification.
- Operates reliably between -40°C and 85°C for industrial applications.
- Four channels in a single package enhance versatility in circuit design.
- Input offset voltage typical value of 9 mV allows precise operability.
- Compatible with through hole mounting in 14-pin PDIP package.
Product Description
The Texas Instruments TL084IN operational amplifier is a quad-channel, JFET input device designed for high-performance applications. Featuring a gain bandwidth product of 3 MHz and a high slew rate of 13 V/μs, it provides excellent signal fidelity and fast response times essential in audio and signal processing circuits.
This device supports a wide supply voltage range from ±5 V to ±15 V, making it adaptable for various industrial and commercial power supply configurations. The low input bias current and offset current improve signal accuracy and minimize loading effects, ideal for precision measurement and control systems.
With operating temperature limits from -40°C to 85°C and compliance with the automotive AEC-Q100 standard, the TL084IN is suited for robust environments including automotive electronics, industrial instrumentation, and laboratory equipment.
The 14-pin PDIP package supports through-hole mounting, facilitating easy integration into printed circuit boards with standard assembly processes. The quad op amp configuration allows multiple signal channels in compact designs.
Low input bias current with JFET inputs for minimized signal distortion. Wide supply voltage range enhances operational flexibility. High slew rate for rapid signal changes and accurate waveform reproduction. Low harmonic distortion ensures clean audio and signal output.
Extended temperature range suitable for industrial and automotive applications. Four channels in one package optimize space and cost efficiency. Input offset voltage and current suited for precision analog design. Through-hole PDIP package compatible with traditional manufacturing methods.
Automotive AEC-Q100 standard supports stringent reliability requirements.
This operational amplifier is ideal for use in industrial control systems, audio equipment, instrumentation, and automotive signal processing. Its combination of high performance, robustness, and multiple channels makes it a versatile choice for a broad range of electronic design projects.
EnvMart offers this Texas Instruments TL084IN Operational Amplifier for professionals demanding reliable and precise analog performance in their electronic circuits.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TL084IN is 3 MHz, which facilitates high-performance signal processing applications.
The input offset voltage for the TL084IN is typically 9 mV, allowing for precise operability in analog designs.
This model supports a wide supply voltage range from ±5 V to ±15 V, making it adaptable for various applications.
The TL084IN features four channels in a single package, optimizing space and cost efficiency in circuit designs.
The typical slew rate of the TL084IN is 13 V/μs, ensuring fast signal response and accurate waveform reproduction.
This operational amplifier operates reliably between -40°C and 85°C, suitable for industrial and automotive applications.
The TL084IN comes in a 14-pin PDIP package, which is compatible with through-hole mounting for easy integration into circuit boards.
The input bias current for this model is 20 nA, which helps improve signal accuracy and minimize loading effects.
The TL084IN has a low total harmonic distortion of 0.003% typical, providing clean amplification for audio and signal processing.
This operational amplifier complies with the automotive AEC-Q100 standard, ensuring reliability in automotive applications.
The height of the TL084IN is 4.57 mm, which is important for fitting within specific design constraints in electronic circuits.
The input offset current for this operational amplifier is 10 nA, contributing to its precision in analog applications.
