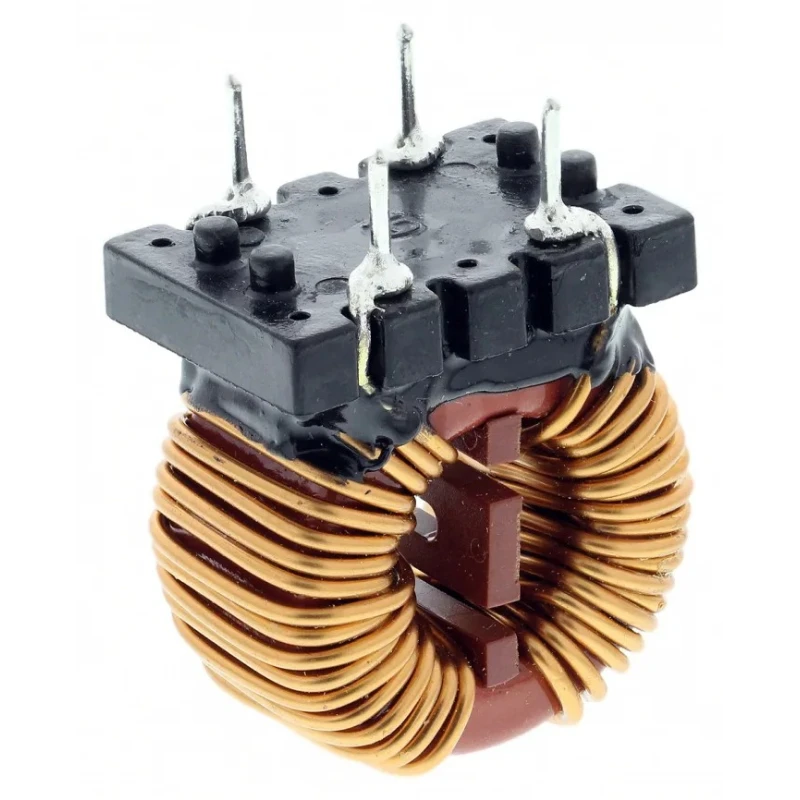

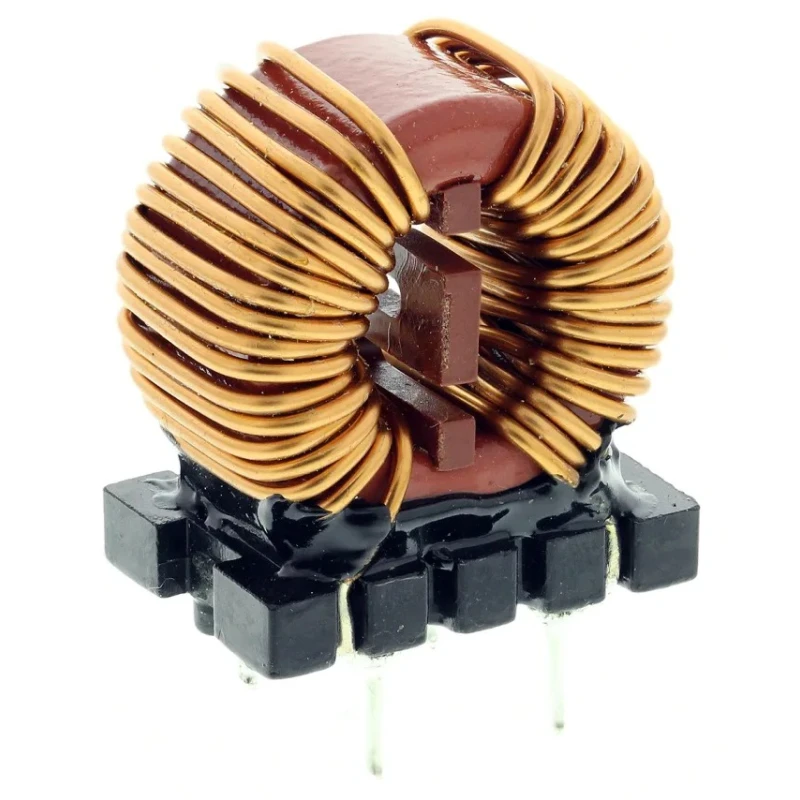

Wurth Elektronik 2.2 mH Manganese Zinc Leaded Inductor 6 A IDC 20 mΩ RDC 250V AC WE-CMB 744824622

Wurth Elektronik 744824622 is a 2.2 mH manganese zinc leaded inductor optimized for use in power electronics and EMI noise suppression. It supports a maximum DC current of 6 A and has a low DC resistance of 20 mΩ, which minimizes power dissipation during operation.

The inductor features a robust radial mount design with a lead pitch of 10 mm, making it suitable for easy insertion and soldering in PCB assemblies. The termination style is solder, ensuring reliable electrical connections. This component operates safely at voltages up to 250 V AC and is capable of functioning within a wide temperature range from -40°C to 125°C, suitable for various industrial and electronic applications.

The magnetic core is constructed from manganese zinc material, contributing to compact size and efficient performance. The component dimensions are 27.5 mm in length and diameter, 33 mm in height, and 18.5 mm in depth, facilitating integration into diverse electronic devices.

It conforms to EN 61760-1:2006 standards and has a climatic category rating of 40/125/21 for durability. The low inductance tolerance of ±30% ensures stable operation in filtering, power line input/output filters, and suppression of radio interference in motor-driven devices.

Wurth Elektronik WE-CMB series offers a compact solution delivering high suppression of asymmetrical interferences, making this inductor ideal for industrial, power electronics, construction, laboratory equipment, and HVAC applications.

Features a manganese zinc core material for high reliability. Maximum DC current rating of 6 amperes for robust performance. Maximum DC resistance of 20 milliohms ensures low power loss. Compact leaded design with radial mount and 10 mm lead pitch.

Operating voltage up to 250 volts AC with ±30% inductance tolerance. Wide operating temperature range from -40°C to 125°C. Dimensions of 27.5 mm length, 27.5 mm diameter, 33 mm height and 18.5 mm depth. Compliance with EN 61760-1:2006 safety standards ensures product quality.

This Wurth Elektronik leaded inductor is a trustworthy component for designers seeking effective EMI suppression and robust performance in demanding environments. Explore more electronics components and passive Inductors for your projects at EnvMart.
