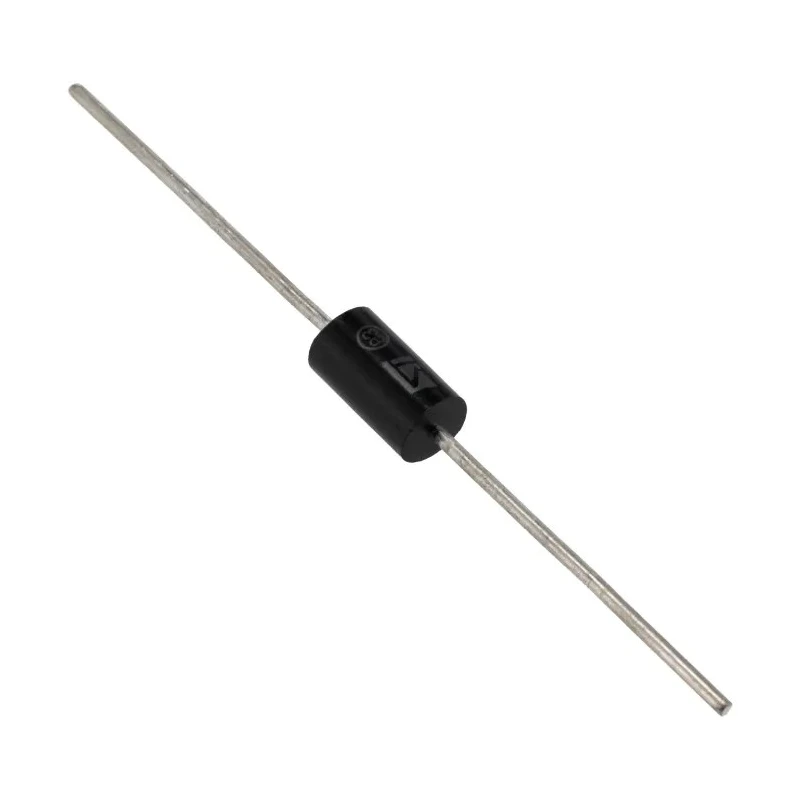

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW Peak Pulse Power, 2-Pin DO-201 1.5KE33CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE33CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 59V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 31.4V |
| Maximum Reverse Stand-off Voltage Vwm | 28.2V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 169A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for bi-directional transient voltage suppression applications.
- Single diode configuration with a minimum breakdown voltage of 31.4 V.
- Maximum reverse stand-off voltage of 28.2 V for stable operation.
- High peak pulse current capability of 169 A ensures robust surge protection.
- Compact DO-201 through-hole package with precise dimensions of 9.5 mm length and 5.3 mm diameter.
- Wide operating temperature range from -65°C to 175°C for harsh environments.
- Clamping voltage of 59 V ensures effective spike suppression.
- Low maximum reverse leakage current of 1 μA to minimize power loss.
Product Description
STMicroelectronics 1.5KE33CA is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode that provides effective protection against transient voltage spikes in electronic circuits. Rated to handle peak pulse power dissipation of 1.5 kW, it is housed in a compact 2-pin DO-201 through-hole package suitable for a variety of electronic and industrial applications.
This single diode features a minimum breakdown voltage of 31.4 V and a maximum reverse stand-off voltage of 28.2 V, ensuring operational stability in transient conditions. It offers high peak pulse current up to 169 A along with a clamping voltage of 59 V to actively suppress voltage spikes and protect sensitive components.
The device operates reliably in a wide temperature range from -65°C to 175°C, making it suitable for demanding environments. The low maximum reverse leakage current of 1 μA reduces power consumption, enhancing energy efficiency within the circuit.
With precise physical dimensions of 9.5 mm length, 5.3 mm width, height, and diameter, the STMicroelectronics 1.5KE33CA diode is ideal for through-hole mounting and integration into existing PCB designs.
Typical applications span across industrial electronics, power supplies, semiconductor devices, and electronic component protection systems. This new condition product ensures reliable performance and durability.
Designed for bi-directional transient voltage suppression applications. Single diode configuration with a minimum breakdown voltage of 31.4 V. Maximum reverse stand-off voltage of 28.2 V for stable operation. High peak pulse current capability of 169 A ensures robust surge protection.
Compact DO-201 through-hole package with precise dimensions of 9.5 mm length and 5.3 mm diameter. Wide operating temperature range from -65°C to 175°C for harsh environments. Clamping voltage of 59 V ensures effective spike suppression.
Low maximum reverse leakage current of 1 μA to minimize power loss. Suitable for electronic components, power & connectors, and semiconductor applications. New product condition, suitable for industrial and laboratory use.
Explore more TVS Diode products from STMicroelectronics in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics 1.5KE33CA has a peak pulse power dissipation rating of 1.5 kW.
This diode features a minimum breakdown voltage of 31.4 V.
The maximum reverse stand-off voltage for this model is 28.2 V, ensuring stable operation.
The clamping voltage of this diode is 59 V, which helps in effectively suppressing voltage spikes.
It can handle a maximum peak pulse current of 169 A.
The diode is housed in a DO-201 package with dimensions of 9.5 mm in length and 5.3 mm in diameter.
This model operates within a wide temperature range from -65°C to 175°C.
The maximum reverse leakage current is 1 μA, which helps minimize power loss.
The STMicroelectronics 1.5KE33CA features a single diode configuration with one element per chip.
This model supports through-hole mounting, making it suitable for integration into PCB designs.
The country of origin for this product is India.
This diode is suitable for industrial electronics, power supplies, semiconductor devices, and electronic component protection systems.
