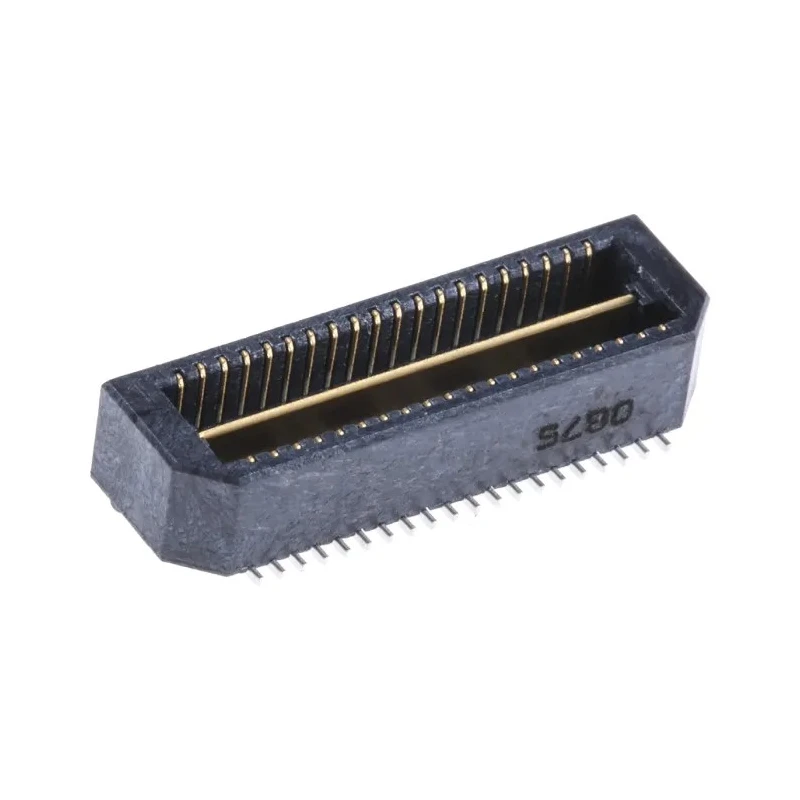

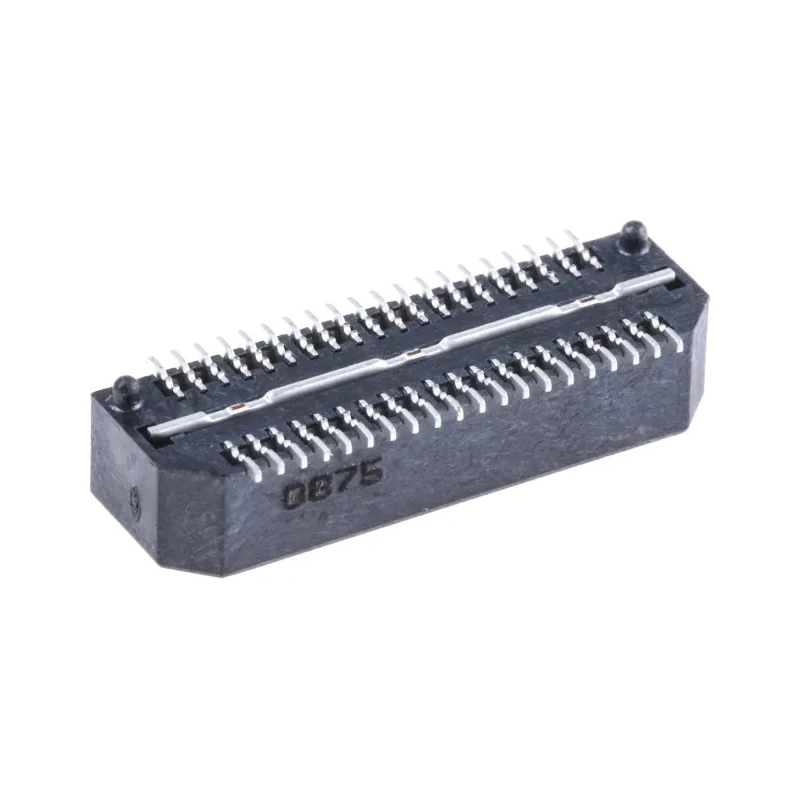

Samtec QTE Series Straight Surface PCB Header, 40 Contacts, 0.8 mm Pitch, 2 Row, Shrouded QTE-020-01-L-D-A

Samtec QTE-020-01-L-D-A is a high-performance straight surface mount PCB header featuring 40 contacts arranged in 2 rows with an industry-standard 0.8 mm pitch.

The connector's phosphor bronze contacts are plated with 0.25 μm gold on the contact surfaces and tin on the tails, ensuring excellent electrical conductivity and corrosion resistance. The polymer housing provides mechanical strength and durability while facilitating simple and secure mounting on PCB surfaces.

Rated for a maximum current of 10A and voltage of 225V, the QTE-020-01-L-D-A operates efficiently within a temperature range of -55°C to 125°C, making it suitable for various industrial electronics, power supply modules, and communication equipment.

This header supports solder termination and features a male contact gender with a shrouded design that prevents damage to the contacts and enhances connector alignment during assembly. Its straight orientation is beneficial for compact design layouts requiring robust electrical connections.

Applications include industrial control systems, telecom infrastructure, computing devices, and other electronic manufacturing fields where reliable board-to-board connection solutions are critical.

High speed ground plane board-to-board header with 40 contacts. 0.8 mm pitch with gold plated phosphor bronze contacts for durability and conductivity. Rated 10A current and 225V operating voltage for robust performance.

Polymer housing with surface mount type and shrouded male contacts for secure fitting. Operational temperature range -55°C to 125°C suitable for harsh environments. Solder termination type supports standard PCB assembly processes.

Straight orientation for versatile PCB layout design. Applicable for industrial, manufacturing, electronics, and communication systems. Explore the range of Samtec PCB Headers for superior connectivity solutions on EnvMart.
