| Country of Origin | Thailand |
|---|---|
| Brand | ROHM |
| Height | 0.4mm |
| Length | 0.91mm |
| Model | RB520CM-30T2R |
| Width | 0.65mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-923 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 10mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 0.5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 0.5A |
| Maximum Forward Voltage Vf | 0.45V |

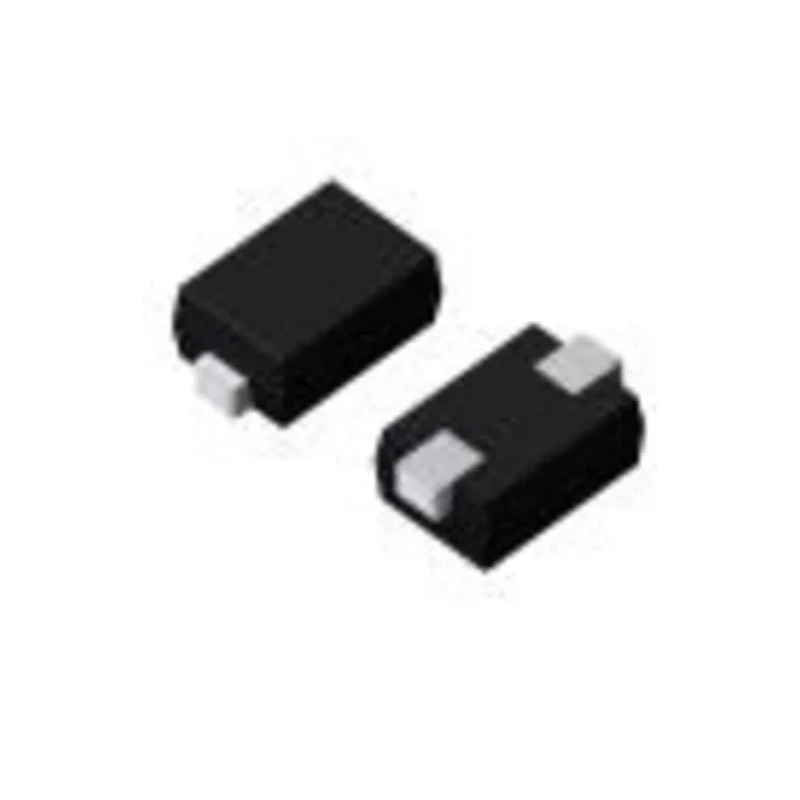

ROHM RB520CM-30T2R is a high reliability Schottky barrier diode designed for general rectification and low forward voltage applications. It comes in a compact SOD-923 surface mount package, measuring 0.91 mm in length, 0.65 mm in width, and 0.4 mm in height, making it suitable for space-constrained electronic assemblies.
This diode supports a maximum continuous forward current of 10 mA and can withstand a peak reverse repetitive voltage of 30 V, ensuring robust operation in various electronic circuits. The Schottky barrier technology enables fast switching with a maximum forward voltage drop of 0.45 V, which reduces power dissipation.
Operating temperature range from -40°C to 150°C allows usage in diverse environmental conditions. The device also provides peak non-repetitive forward surge current capability of 0.5 A and maintains low leakage with a peak reverse current of just 0.5 µA.
Manufactured under RoHS standards in Thailand, this diode meets environmental compliance requirements, making it ideal for industrial, laboratory, communication, and consumer electronic applications that demand efficient rectifiers or clamping diodes.
The diode has a maximum continuous forward current of 10 mA. Maximum peak reverse voltage of 30 V assures operational safety. Compact SOD-923 surface mount package suitable for dense PCB layouts. Low forward voltage drop minimizes energy loss during operation.
Wide operating temperature range from -40°C to 150°C for reliable performance. Low peak reverse current leakage enhances efficiency and reduces heat. Supports surge currents up to 0.5 A ensuring transient tolerance. RoHS compliant ensuring adherence to environmental standards.
Manufactured in Thailand with high-quality control standards. Explore more Schottky diodes and rectifiers in the Electronics & Electricals category at EnvMart for your next electronic design project.
