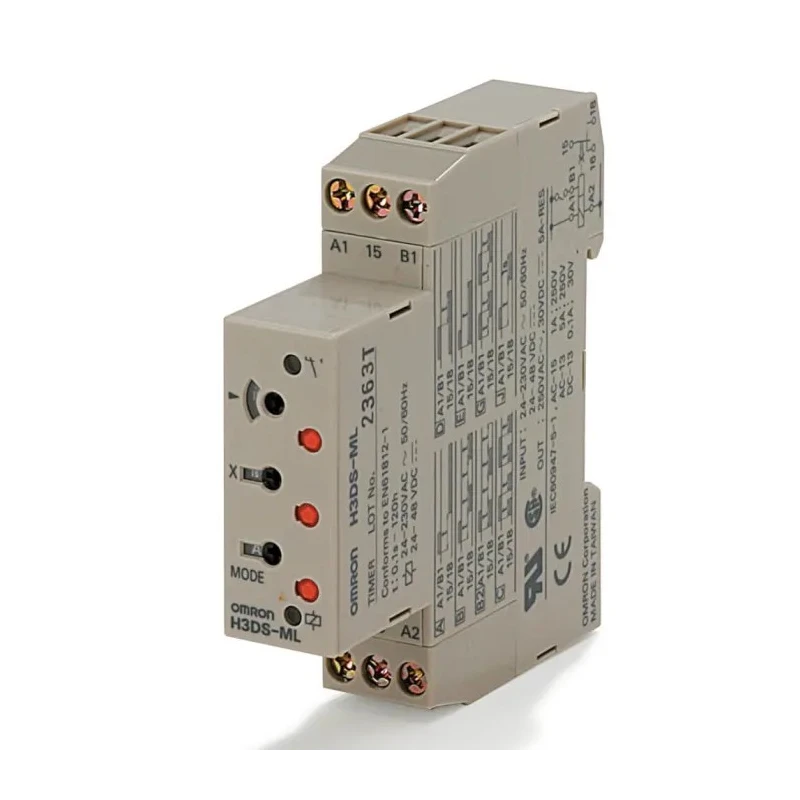

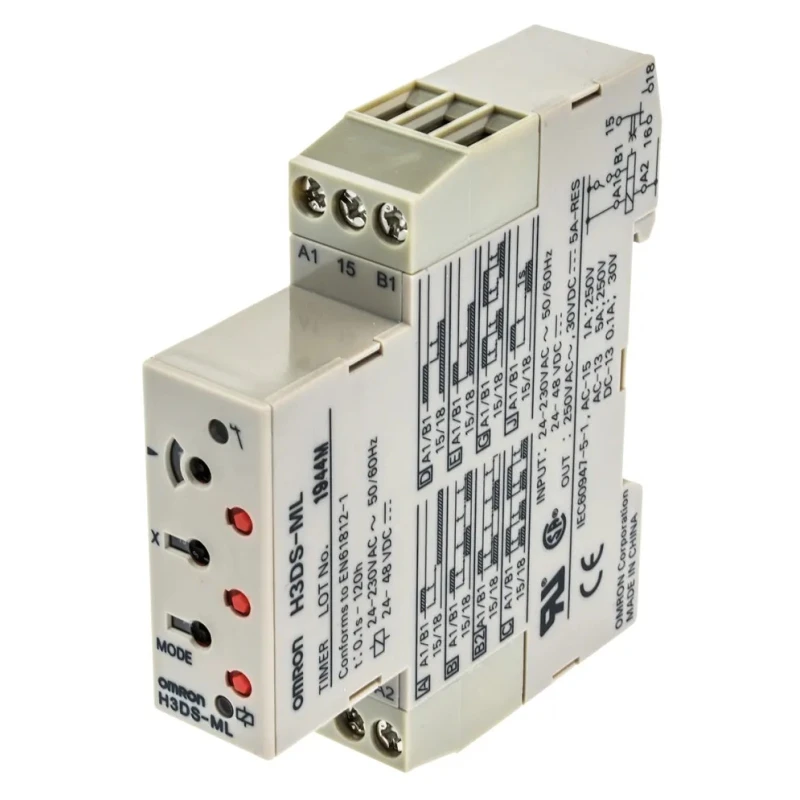

Omron EF7616 Series DIN Rail Timer Relay 1-Contact 48 V dc 230 V ac 24 V ac 0.1 s to 120 h Multifunction

Omron EF7616 DIN Rail Timer Relay, model H3DS-ML AC/DC, is a high-precision multifunction timer relay suitable for diverse industrial automation and control applications. It supports a broad time range from 0.1 seconds up to 120 hours, allowing precise time delay adjustments in seconds, minutes, or hours.

This device operates with supply voltages of 48 V dc, 230 V ac, and 24 V ac, providing flexibility for integration into various power systems. It features a single-pole double-throw (SPDT) contact configuration rated for a maximum contact current of 5 A, catering to numerous switching needs.

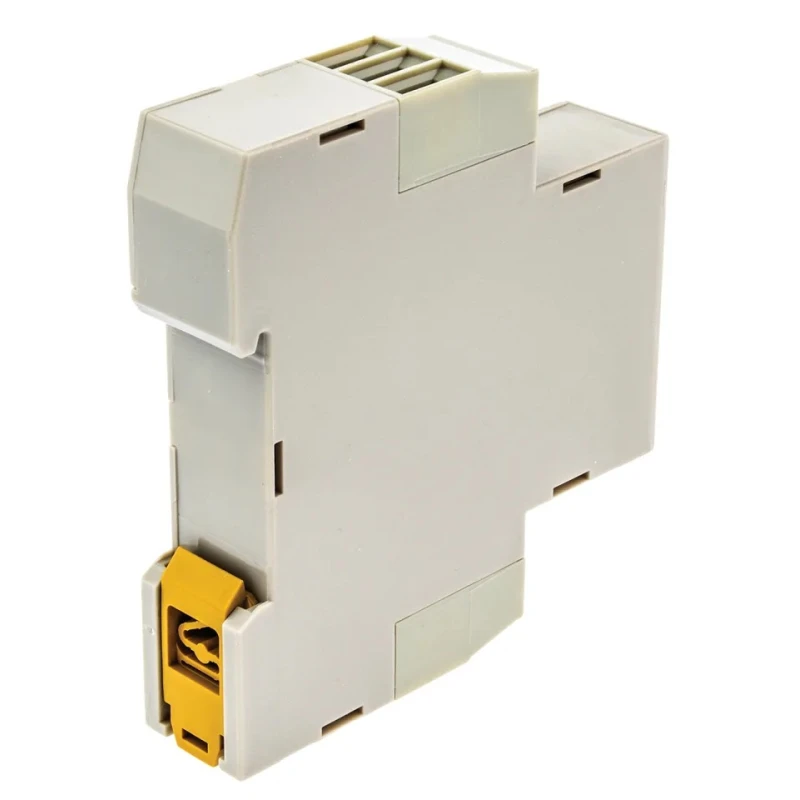

The timer relay is designed to mount conveniently on DIN rails and includes screw terminal connections, ensuring stable and secure electrical connections. Its compact dimensions of 80 mm length, 17.5 mm width, and 73 mm height allow for efficient panel space utilization.

Engineered for durability, the EF7616 relay offers a mechanical lifespan of 10 million operations and is rated IP30 for protection against small solid material ingress. It maintains reliable performance within the temperature range of -10°C to 55°C, with built-in shock and vibration resistance.

The relay incorporates two LED indicators facilitating immediate visual status checks of power and relay operation. It is compliant with UL, CSA, and EN safety standards, ensuring trusted quality and safety. Applications include agricultural machinery automation, bottling plant controls, process control systems, and HVAC control units.

With these features, the Omron EF7616 timer relay is ideal for industrial, manufacturing, and process control environments requiring versatile timing functions and dependable performance.
