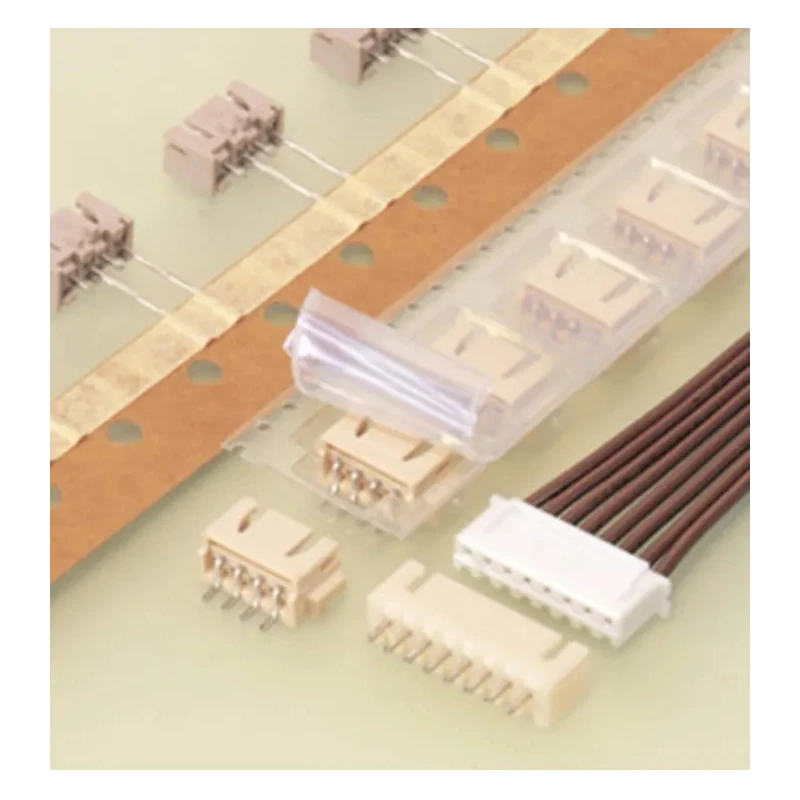

JST XH Series Right Angle Surface PCB Header 6 Contacts 2.5 mm Pitch 1 Row Shrouded (Q)S6B-XH-SM4-TB (LF)(SN)
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 1000V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 3A |
| Model | (Q)S6B-XH-SM4-TB (LF)(SN) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | XH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Copper, Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
Key Features
- Constructed with polyamide housing for durability and insulation.
- Copper alloy contacts provide reliable electrical conductivity.
- Contact plating of copper and tin enhances corrosion resistance.
- Rated for a current of 3 amps and operating voltage up to 1000V.
- Designed for board-to-board connector systems with solder termination.
- Operating temperature range from -25°C to 85°C ensures performance in varied environments.
- Tail pins are 3 mm in length and male contact gender.
- Shrouded design offers protection and prevents misalignment during installation.
Product Description
JST (Q)S6B-XH-SM4-TB (LF)(SN) is a high-quality XH series right angle surface mount PCB header designed for electronic component interconnections on printed circuit boards. With 6 contacts arranged in a single row at a 2.5 mm pitch, this shrouded connector features robust polyamide housing for mechanical strength and electrical insulation. The copper alloy contacts with copper and tin plating provide excellent conductivity and resistance to corrosion, making it suitable for a variety of electronic applications.
Rated for 3A current and 1000V voltage, it supports reliable signal transmission in board-to-board systems. Its solder termination ensures secure mounting, and the 3 mm tail pin length is designed for precise and stable solder connections. The operating temperature range from -25°C to 85°C allows this connector to function effectively in diverse industrial, laboratory, and manufacturing environments.
The shrouded design prevents incorrect mating and protects contacts, enhancing operational safety. This connector is manufactured in Korea and adheres to industry standards, ensuring consistent performance and durability.
Applications include electronic manufacturing, instrumentation, industrial control systems, communication devices, and any context requiring compact, reliable board-to-board connectivity solutions.
Constructed with polyamide housing for insulation and durability. Copper alloy contacts with copper and tin plating offer high conductivity and corrosion resistance. Right angle, single row configuration for compact circuit designs.
Rated for 3A current and 1000V operating voltage. Surface mount design with solder termination ensures secure attachment to PCBs. Wide operating temperature range from -25°C to 85°C suits various environments. Shrouded design improves contact protection and prevents misalignment.
Explore the range of JST PCB Headers and connectors for advanced electronic projects and industrial applications on EnvMart.
