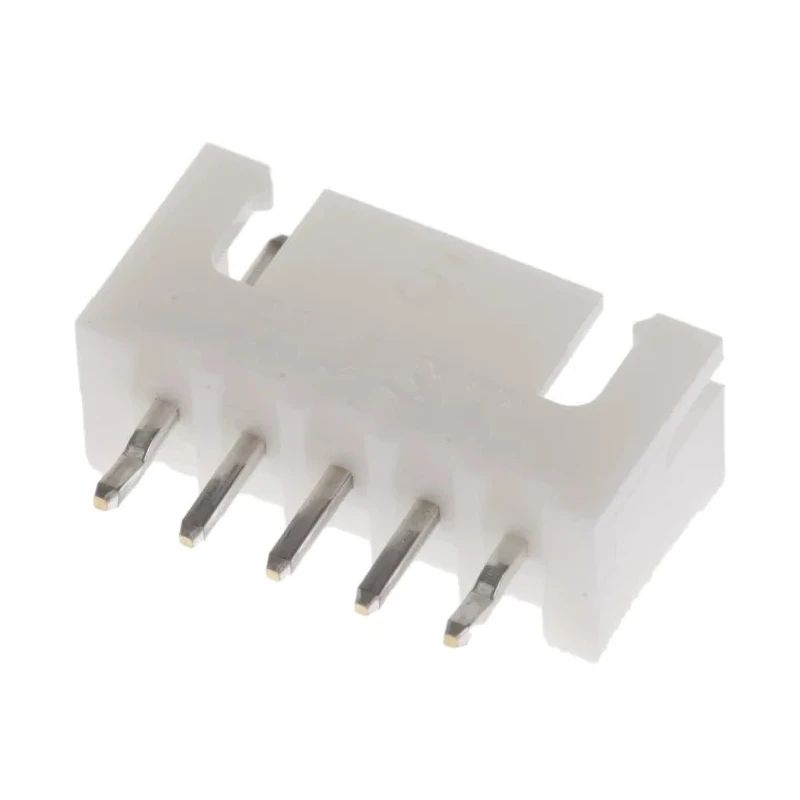

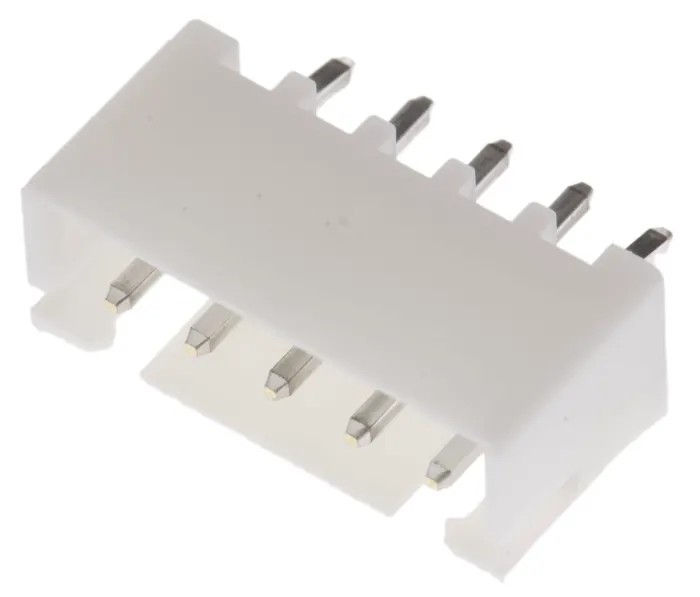

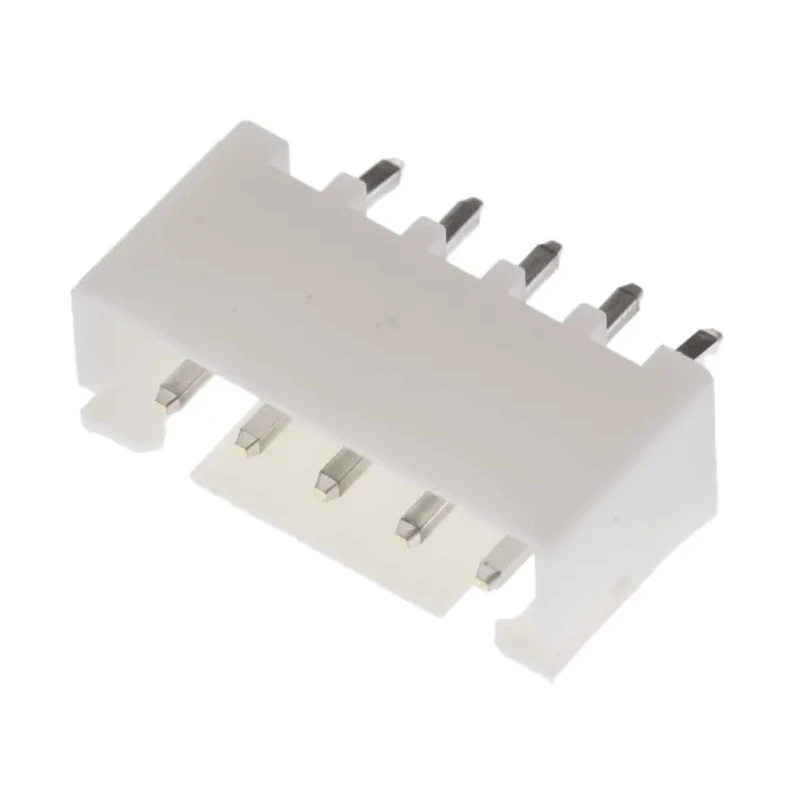

JST XH Series Straight Through Hole PCB Header, 5 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded B5B-XH-A(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Straight Through Hole PCB Header, 5 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded B5B-XH-A(LF)(SN)



Category PCB Connectors & Wire Housings Brand JST Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B5B-XH-A(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	XH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.4mm

Key Features

Features a single row of 5 male contacts with a 2.5 mm pitch spacing.
Made with a polyamide housing material providing durability and flame resistance.
Supports a current rating of 3A and voltage rating up to 250V.
Shrouded design offers secure mating and protection for contacts.
Suitable for through hole mounting with solder termination.
Contact material is brass with tin plating to ensure good conductivity and corrosion resistance.
Operates reliably from -25°C to a maximum of 85°C.
Includes 3.4 mm mating pin length for consistent connection integrity.

Product Description

JST B5B-XH-A(LF)(SN) PCB Header is a high-quality straight through hole connector designed with 5 male contacts arranged in a single row with 2.5 mm pitch. This shrouded header is constructed with a polyamide housing rated UL 94V-0 for flame resistance, offering durability and safety in demanding environments.

The contact pins are made of brass with a tin plating finish to provide excellent electrical conductivity and corrosion resistance. It supports a current of 3A and a voltage rating of 250V, making it suitable for various industrial electronic applications.

The connector mounts through hole on PCBs and features a solder termination type, ensuring a strong and durable mechanical connection. This PCB header is designed to operate within a temperature range of -25°C to 85°C, suitable for many industrial and commercial environments.

The shrouded design provides protection for the contacts and ensures stable mating with corresponding XH series receptacle housings. Single row, 5 contacts with 2.5 mm pitch. Polyamide housing with UL 94V-0 rating. Brass contact with tin plating.

Through hole mount with solder termination. Operating temperature: -25°C to 85°C. Rated for 3A current and 250V voltage. 3.4 mm mating pin length.

This JST XH Series PCB header is ideal for use in industrial electronic component assembly, manufacturing, power and signal distribution, and other wire-to-board connection applications.

Explore more reliable electronics components and connectors in our extensive PCB Connectors & Wire Housings category at EnvMart.

Explore more products in our PCB Connectors & Wire Housings category.
