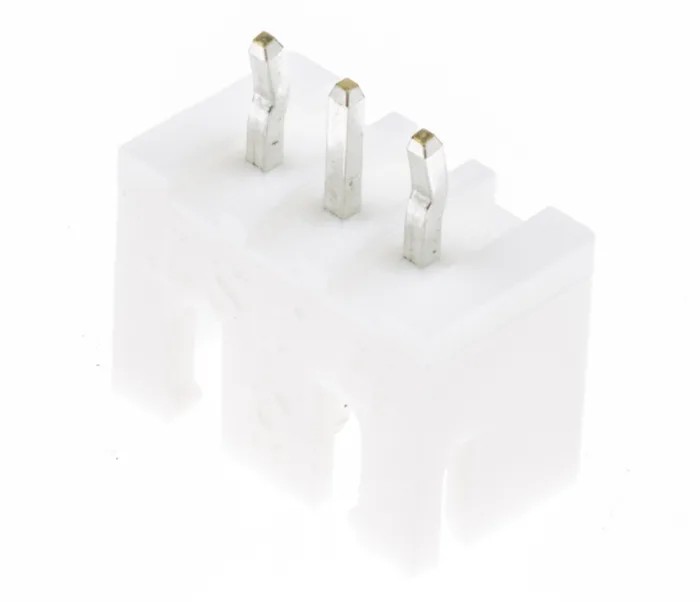

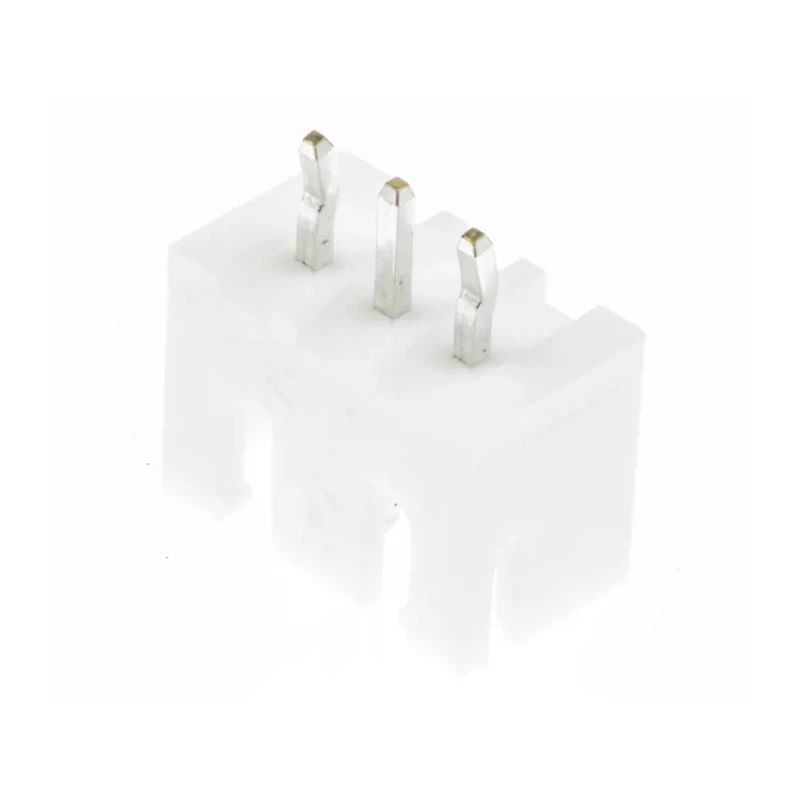

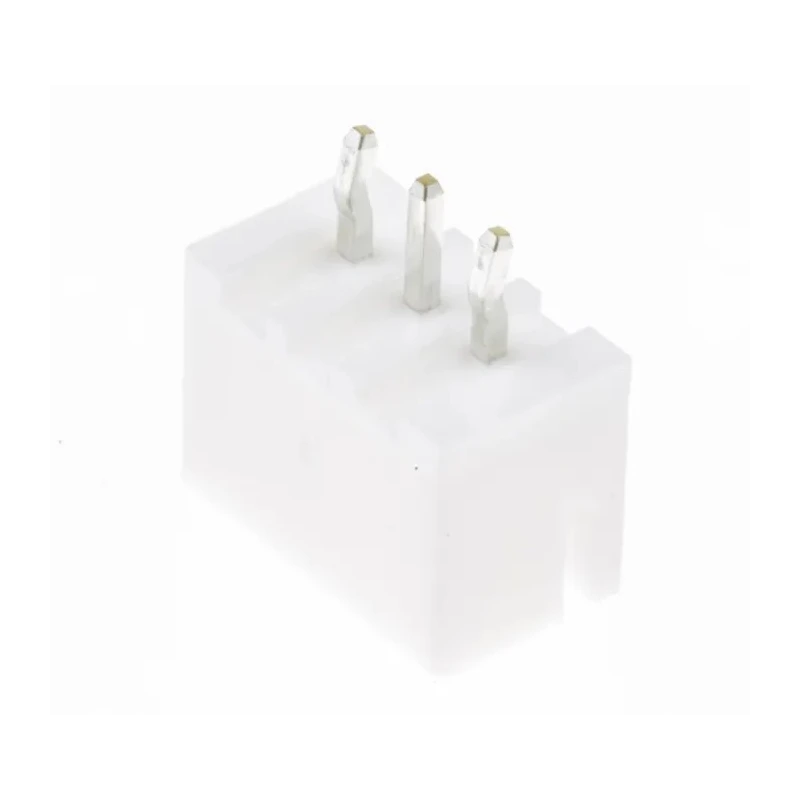

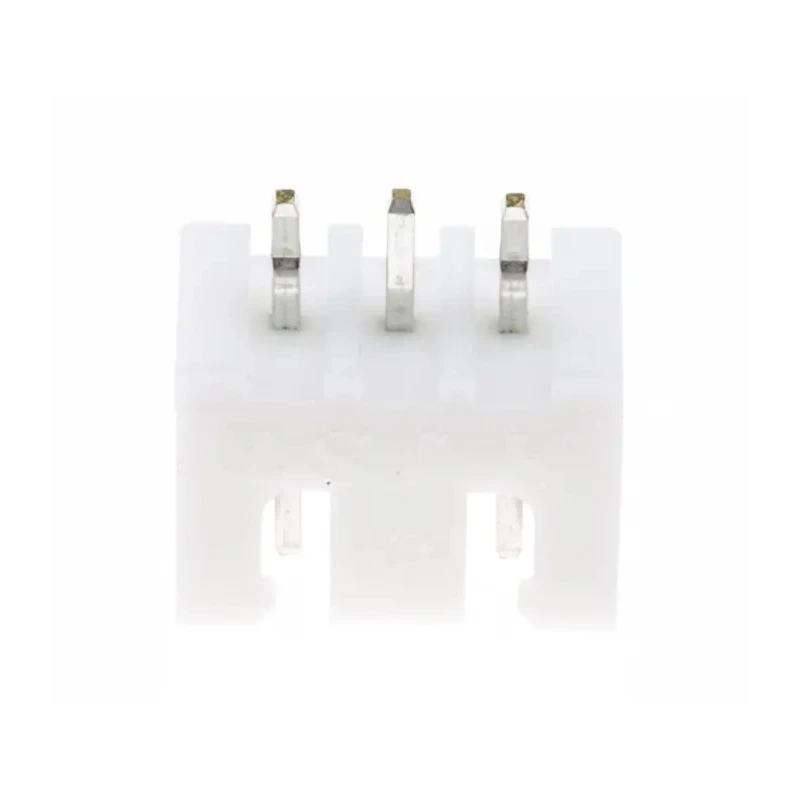

JST XH Series Straight Through Hole PCB Header, 3 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded B3B-XH-A(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Straight Through Hole PCB Header, 3 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded B3B-XH-A(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B3B-XH-A(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	XH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.4mm

Key Features

Constructed with polyamide housing for durability and UL 94V-0 rating.
Contact material is brass with tin plating ensuring reliable conductivity.
Operates at voltage rating of 250V and current of 3A.
Suitable for operating temperatures from -25°C to 85°C.
Features a single row configuration with 3.4mm tail pin length for solder termination.
Designed for industrial applications requiring robust electrical connections.
Wire size compatibility ranges from 30 AWG to 22 AWG for versatile use.

Product Description

JST B3B-XH-A(LF)(SN) is a shrouded, straight through hole PCB header from the XH series, featuring 3 contacts with a 2.5 mm pitch in a single row configuration. This PCB header is designed with polyamide housing that meets UL 94V-0 flame retardant standards, making it suitable for demanding industrial environments.

The connector system supports wire-to-board applications, with male brass contacts plated in tin for enhanced electrical performance and corrosion resistance. It is rated for a maximum current of 3A and voltage up to 250V, with operating temperatures ranging from -25°C to 85°C, ensuring reliability in various electrical and electronic assemblies.

This XH Series PCB header is designed for through-hole mounting and solder termination to provide a secure mechanical and electrical connection. The tail pins are 3.4 mm long, compatible with standard PCB layouts. The housing's shrouded design enhances pin protection and prevents accidental damage during handling or installation.

Ideal for industrial uses, this connector supports wire sizes from 30 AWG to 22 AWG and a range of wiring configurations. JST's precision manufacturing ensures consistent quality and dependable operation in electronics, telecommunications, and control systems.

Applications include industrial equipment, computer hardware, automation systems, and any scenario requiring reliable wire-to-board interconnections. The connector's robust design and high-quality materials guarantee longevity and safe electrical performance.

Constructed with polyamide housing for durability and UL 94V-0 rating. Contact material is brass with tin plating ensuring reliable conductivity. Operates at voltage rating of 250V and current of 3A. Suitable for operating temperatures from -25°C to 85°C.

Features a single row configuration with 3.4mm tail pin length for solder termination. Designed for industrial applications requiring robust electrical connections. Wire size compatibility ranges from 30 AWG to 22 AWG for versatile use.

Explore a wide selection of PCB Header connectors and related electronic components at EnvMart for your industrial and manufacturing needs.
