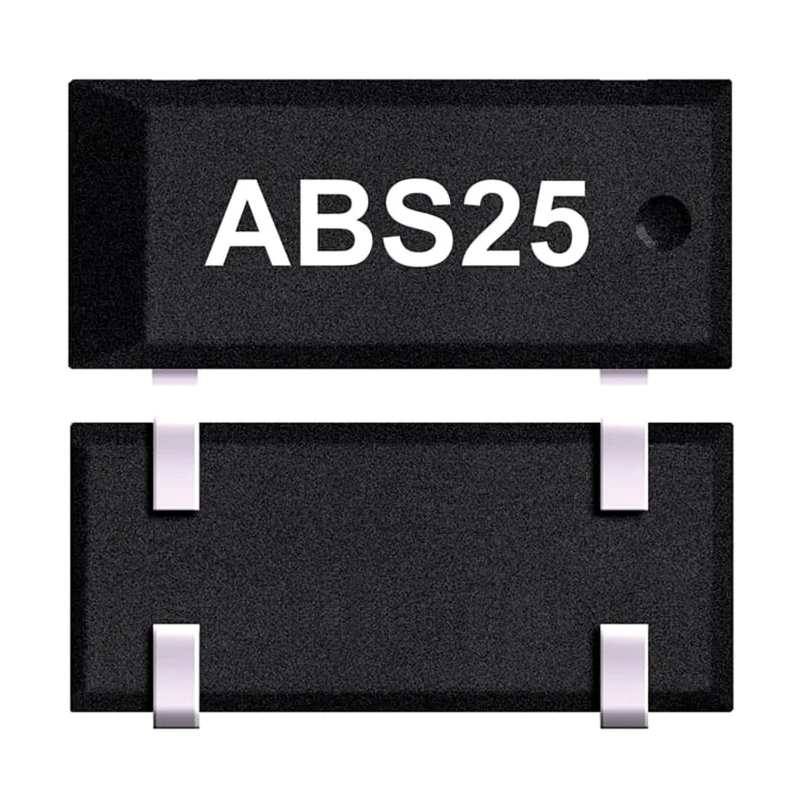

Abracon 32.768 kHz Crystal Unit ±30 ppm Surface Mount 4-Pin 2.5 mm x 8 mm x 3.8 mm ABS25-32.768KHZ-4-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.5mm |
| Length | 8mm |
| Model | ABS25-32.768KHZ-4-T |
| Packaging | Tape & Reel |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | ABS35 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 4 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 50kΩ |
Key Features
- Standard frequency of 32.768 kHz suitable for precise timing applications.
- Compact dimensions of 2.5 mm height, 8 mm length, and 3.8 mm width for surface mounting.
- Load capacitance of 12.5 pF to ensure stable oscillation.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Series resistance of 50 kΩ minimizes signal degradation.
- Compliant with RoHS and REACH standards for environmental safety.
- Packaging format is tape and reel for efficient automated assembly.
- Ideal for microprocessor clocks, remote controls, mobile phones, and consumer electronics.
Product Description
Abracon ABS25-32.768KHZ-4-T is a highly stable 32.768 kHz crystal unit designed for surface mount applications. This 4-pin oscillator features a frequency tolerance of ±30 ppm and is housed in a compact package measuring 2.5 mm in height, 8 mm in length, and 3.8 mm in width, facilitating easy PCB integration.
The unit has a load capacitance of 12.5 pF and a series resistance of 50 kΩ, which contribute to its low resonant impedance and efficient signal integrity. Its operating temperature range from -40°C to 85°C ensures dependable functionality across various environmental conditions.
Designed to meet RoHS and REACH standards, this crystal unit is suitable for a wide range of applications including microprocessor clocks, remote controls, DVD and CD-ROM drives, mobile phones, and other electronic consumer devices. Packaging is provided in tape and reel format compatible with automated pick-and-place manufacturing processes.
The ABS25 series crystal unit offers high performance and durability in a surface mount package, ideal for precision timing in industrial, consumer electronics, and communication equipment.
Standard frequency: 32.768 kHz. Frequency tolerance: ±30 ppm. Load capacitance: 12.5 pF. Operating temperature range: -40°C to 85°C. Series resistance: 50 kΩ. Package dimensions: 2.5 mm (H) x 8 mm (L) x 3.8 mm (W). Surface mount with 4 pins.
RoHS and REACH compliant. Packaging: Tape & Reel. Explore more Crystal Units and electronic components on EnvMart to find the perfect fit for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 32.768 kHz, making it suitable for precise timing applications.
This model has compact dimensions of 2.5 mm in height, 8 mm in length, and 3.8 mm in width, designed for surface mounting.
The load capacitance of this crystal unit is 12.5 pF, which helps ensure stable oscillation.
It operates within a temperature range of -40°C to 85°C, ensuring reliable performance across various environmental conditions.
The series resistance of this crystal unit is 50 kΩ, which minimizes signal degradation.
It is packaged in tape and reel format, which is compatible with automated assembly processes.
Yes, it is compliant with RoHS and REACH standards for environmental safety.
This model features a 4-pin configuration for surface mounting.
It is suitable for a wide range of applications including microprocessor clocks, remote controls, and consumer electronics.
The model number of this crystal unit is ABS25-32.768KHZ-4-T.
This unit uses a surface mount type, facilitating easy integration onto PCBs.
The country of origin for this crystal unit is India.
