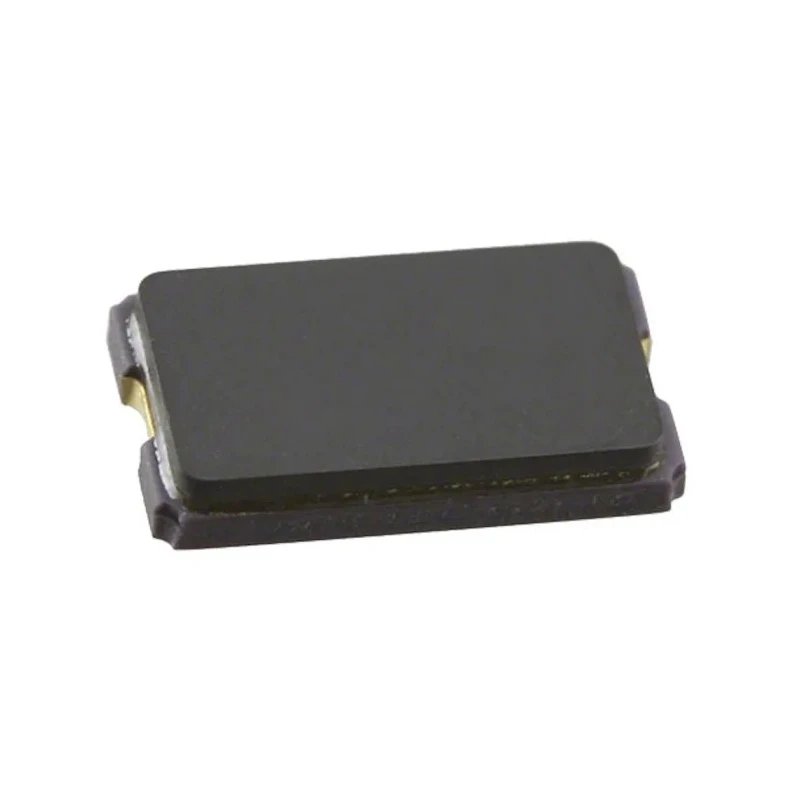

Abracon 16 MHz Crystal Surface Mount 5 mm x 3.2 mm x 1.3 mm ±20 ppm Frequency Tolerance ABM3

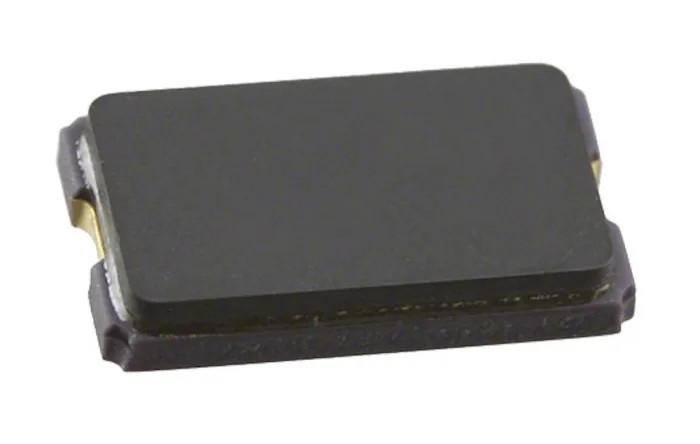

Abracon ABM3 16 MHz crystal is a miniature ceramic surface mount device designed for applications requiring high-precision frequency control. The hermetically glass-sealed ceramic package ensures long-term stability and reliability in demanding environments. The crystal utilizes an AT-cut fundamental or third overtone mode.

With a standard frequency of 16 MHz and frequency tolerance of ±20 ppm, this component maintains excellent frequency stability of ±30 ppm, making it suitable for cellular telephones, pagers, PCMCIA, wireless communications, and general communication and test equipment.

The compact surface mount package measures 5 mm in length, 3.2 mm in width, and 1.3 mm in height, allowing for efficient PCB layout and automated assembly. Its load capacitance is set at 18 pF with a series resistance of 40 Ω, carefully balanced for stable oscillations.

This crystal is rated to operate within a temperature range from -40°C minimum to 85°C maximum, ensuring functionality across a variety of environmental conditions. It is compliant with REACH and RoHS directives, ensuring it meets current environmental and safety standards.

Supplied in tape and reel packaging, it facilitates smooth manufacturing processes and is sourced from Taiwan, Province of China. This crystal is ideal for industrial automation, telecommunications, and consumer electronics manufacturing.

Features ±20 ppm frequency tolerance for stable performance. Compact dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height. Surface mount package suitable for automated PCB assembly. Load capacitance rated at 18 pF for optimal circuit matching.

Operates reliably from -40°C to 85°C working temperature range. Hermetically sealed ceramic package ensures durability and long life. Series resistance of 40 Ω supports stable oscillation. Complies with REACH and RoHS standards for environmental safety.

Supplied in tape and reel packaging optimized for manufacturing usage. Explore Abracon components and other Crystal Unit products for your electronics manufacturing needs on EnvMart.
