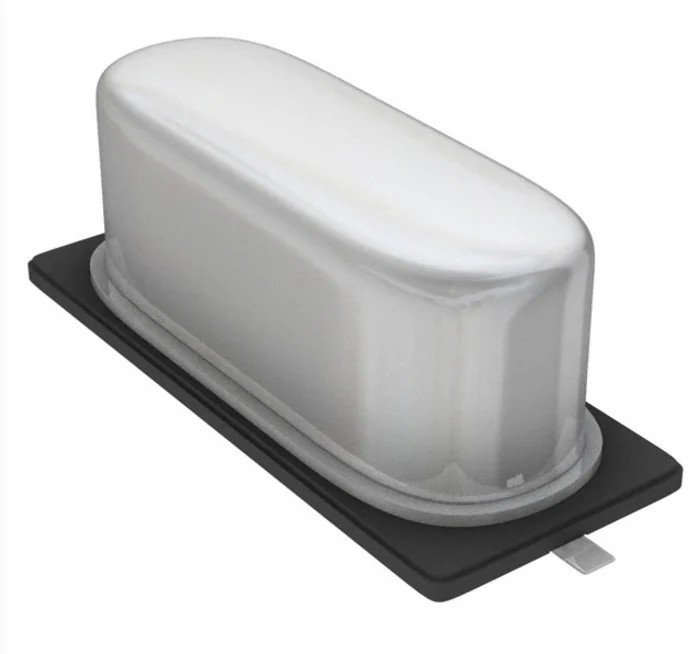

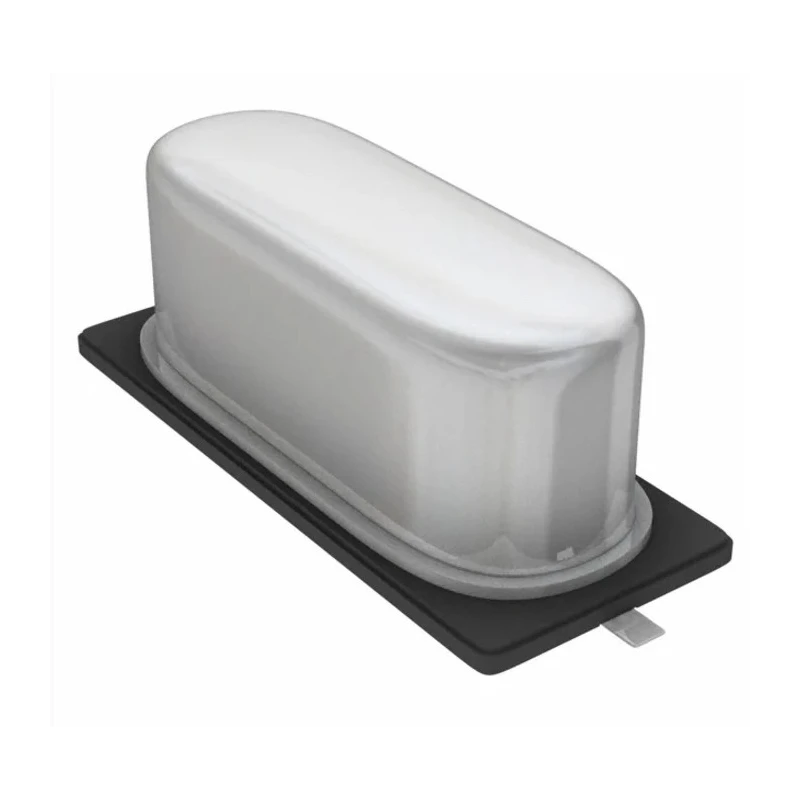

Abracon 16 MHz Surface Mount HC-49 Crystal ±30 ppm Frequency Tolerance 18pF Load Capacitance ABLS2-16.000MHZ-D4Y-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 3.3mm |
| Length | 11.4mm |
| Model | ABLS2-16.000MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS2 |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- Standard frequency of 16 MHz ensures precise operation.
- Surface mount design with compact HC-49 package enhances PCB integration.
- Load capacitance specified as 18pF for accurate frequency stability.
- Operating temperature range from -40°C to 85°C supports harsh environments.
- Series resistance of 40Ω optimizes signal integrity.
- Packaging in tape and reel format facilitates automated assembly.
- Ideal for use in computers, modems, microprocessors, and wireless devices.
- Compliant with REACH and RoHS environmental standards.
Product Description
The Abracon ABLS2-16.000MHZ-D4Y-T is a high-quality 16 MHz crystal oscillator designed for surface mount applications. Featuring a HC-49 package with dimensions 11.4 mm length, 4.7 mm width, and 3.3 mm height, this crystal offers a compact footprint suitable for dense PCB layouts. Its ±30 ppm frequency tolerance and stability ensure precise timing in sensitive electronic circuits.
Designed to operate over a temperature range from -40°C to 85°C, this crystal is ideal for industrial and commercial electronics operating in varied environmental conditions. The 18pF load capacitance allows for accurate load matching to oscillator circuits, while the series resistance of 40Ω aids in maintaining signal purity and reducing noise.
This crystal belongs to the ABLS2 series, noted for low profile microprocessor crystals with tight stability. It is commonly used in communications equipment such as modems and wireless applications, as well as in computing devices and microprocessor systems.
The product is supplied in tape and reel packaging, streamlining automated manufacturing processes. It complies with REACH and RoHS standards, reflecting environmental and safety assurances.
Standard frequency of 16 MHz with ±30 ppm tolerance. Surface mount HC-49 package fits compact designs. Load capacitance of 18pF for oscillator accuracy. Wide operating temperature range from -40°C to 85°C. Series resistance of 40Ω for optimized performance.
ABLS2 series known for reliability and stability in microprocessor applications. Tape and reel packaging supports automated assembly. Compliant with REACH and RoHS regulations. Applications include computers, modems, microprocessors, and wireless devices.
This Abracon Crystal Unit is well suited for industrial, electronic manufacturing, and laboratory use cases requiring precise timing components. Browse EnvMart’s electronics components for related crystal oscillators and resonance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz, ensuring precise operation in electronic circuits.
The load capacitance specified for this model is 18pF, which is important for accurate frequency stability in oscillator circuits.
This crystal operates within a temperature range from -40°C to 85°C, making it suitable for harsh environments.
The dimensions of the HC-49 package are 11.4 mm in length, 4.7 mm in width, and 3.3 mm in height.
The series resistance of this crystal unit is 40Ω, which helps optimize signal integrity.
It is packaged in tape and reel format, facilitating automated assembly processes in manufacturing.
This crystal belongs to the ABLS2 series, known for low profile microprocessor crystals with tight stability.
The crystal complies with REACH and RoHS environmental standards, reflecting its safety and environmental assurances.
This crystal unit is suitable for use in computers, modems, microprocessors, and wireless devices.
This model features a surface mount design, which enhances PCB integration in electronic devices.
The frequency tolerance of this crystal unit is ±30 ppm, ensuring precise timing in sensitive electronic circuits.
The country of origin for this crystal unit is China.
