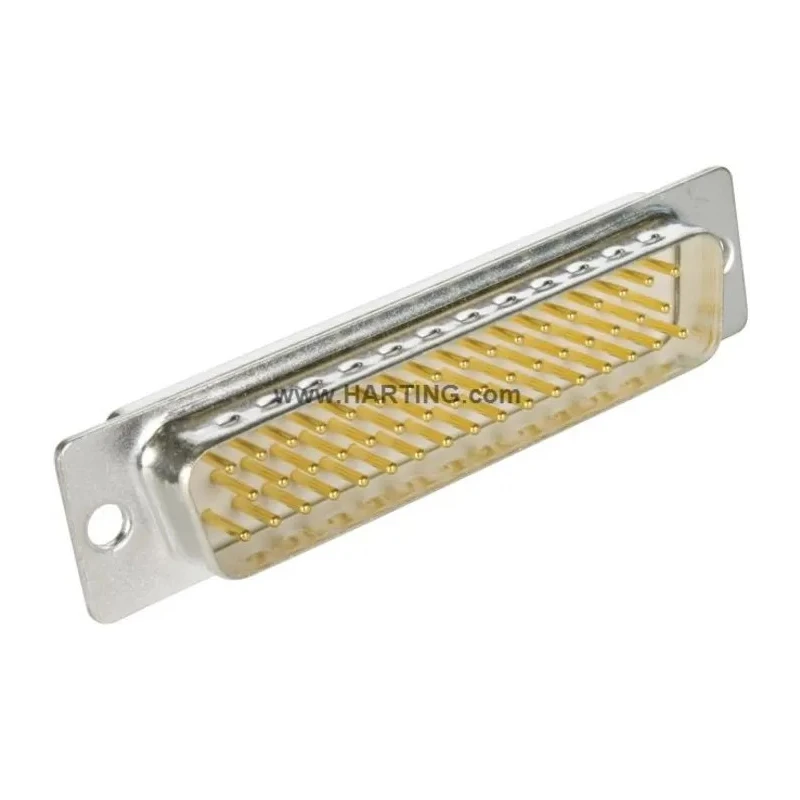

HARTING D-Sub 50 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male 09670505604
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Copper |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | D |
| Provertha TMC 50 Way Panel Mount D-sub Connector PlugBrand | Provertha |
| HARTING 50 Way Panel Mount D-sub Connector Plug, 2.77mm PitchBrand | HARTING |
Key Features
- Features 50 contacts enabling high-density connection.
- Supports a current rating of 7.5A for robust electrical performance.
- Constructed with metal housing for durability and EMI-RFI compliance.
- Pitch size of 2.77 mm ensures precise connection spacing.
- Designed for panel mount applications with a straight orientation.
- Contacts are copper alloy with copper plating for optimal conductivity.
- Operation supported from -55°C to 125°C for varied environments.
- Termination type is solder, securing solid electrical joints.
Product Description
HARTING 09670505604 is a high-quality D-Sub Connector featuring 50 contacts arranged with a 2.77 mm pitch, designed for panel mount installations. This straight male connector ensures robust and reliable connections in demanding electrical applications, with a metal housing providing excellent mechanical strength and EMI-RFI screening compliance.
The connector supports a current of 7.5A and operates safely between -55°C and 125°C, making it suitable for use in diverse industrial environments including manufacturing, electronics assembly, and telecommunications. The solder termination type offers a secure and lasting electrical joint, while copper alloy contacts with copper plating ensure optimal conductivity and corrosion resistance.
The male connector includes grounding fingers that guarantee consistent electrical and shielding continuity when mated, helping maintain signal integrity in sensitive applications. With a voltage rating of 1 kV and compliance to standards such as NFC 93425 - type HE 5 - DIN 41652 MIL-C-24308, this connector package balances performance and durability for critical electronic systems.
Industry use cases encompass industrial automation, laboratory instrumentation, telecommunications equipment, and electronic control panels where secure signal transmission and noise immunity are essential. The product is made in Germany, reflecting strong quality standards and precision engineering.
Features 50 contacts arranged with 2.77 mm pitch spacing. Metal housing ensures excellent mechanical durability and EMI-RFI compliance. Suitable for panel mount applications with a straight orientation. Capable of carrying 7.5A current safely.
Solder termination type provides secure electrical connections. Copper alloy contacts with copper plating optimize conductivity. Operates in a temperature range from -55°C to 125°C. Grounding fingers provide reliable electrical and screening continuity.
Voltage rating up to 1 kV for high-voltage applications. Manufactured in Germany, ensuring quality and precision.
Explore the full range of D-Sub Connectors at EnvMart for comprehensive electronic component solutions designed for industrial, construction, telecommunications, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 7.5A, ensuring robust electrical performance in various applications.
The contacts are arranged with a pitch size of 2.77 mm, allowing for precise connection spacing.
It operates safely within a temperature range of -55°C to 125°C, making it suitable for diverse environments.
This model features a solder termination type, which provides secure and lasting electrical joints.
The contacts are made of copper alloy with copper plating, optimizing conductivity and corrosion resistance.
It has a voltage rating of 1 kV, suitable for high-voltage applications.
The housing is constructed from metal, providing excellent mechanical durability and EMI-RFI compliance.
Yes, it is specifically designed for panel mount applications with a straight orientation.
It features 50 contacts, enabling high-density connections.
It is manufactured in Germany, reflecting strong quality standards and precision engineering.
It is suitable for use in industrial automation, laboratory instrumentation, telecommunications equipment, and electronic control panels.
The connector includes grounding fingers that guarantee consistent electrical and shielding continuity, helping to maintain signal integrity.
