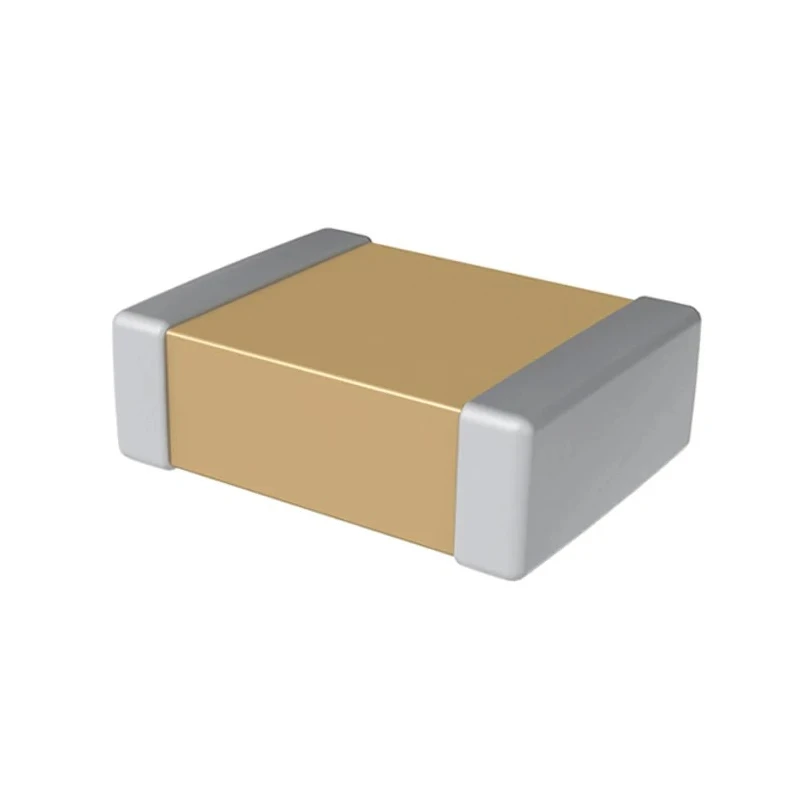

KEMET 10 nF 1 kV dc ±5 % C0G Dielectric Multilayer Ceramic Capacitor Surface Mount 1812 Case C1812C103JDGACAUTO

KEMET C1812C103JDGACAUTO Multilayer Ceramic Capacitor is a precision passive component designed for high voltage and high stability applications. This 10 nF capacitor supports a DC voltage rating of 1 kV, providing reliable performance in demanding electronic circuits.

Featuring a C0G (Class I) dielectric, it offers exceptional temperature compensation, minimal capacitance drift, and low losses, making it ideal for resonant circuits and timing applications where capacitance stability and accuracy are critical.

The capacitor is built with a stacked multilayer ceramic construction in a surface mount 1812 case measuring 4.5 mm by 3.2 mm by 2 mm. Its solder termination type with 100% pure matte tin finish ensures excellent solderability and corrosion resistance.

This component conforms to the automotive AEC-Q200 standard, attesting to its robustness and suitability for harsh automotive environments. The wide operating temperature range from -55°C to 125°C guarantees reliable operation in industrial, automotive, and high-reliability applications.

The device offers high ripple current capacity, extremely low equivalent series resistance (ESR) and equivalent series inductance (ESL), and no piezoelectric noise, enhancing signal integrity and device longevity.

The capacitor is delivered in tape & reel packaging for easy use in automated assembly lines, supporting cost-effective manufacturing.

Manufactured in Mexico to stringent quality standards, this capacitor is well suited for applications in industrial electronics, automotive systems, power supplies, telecommunications, and other demanding sectors.

This capacitor uses C0G dielectric, known for excellent temperature stability and low capacitance variation. It is packaged in an 1812 case with dimensions 4.5 mm length, 3.2 mm width, and 2 mm height. The device complies with automotive industry standard AEC-Q200 for quality and durability.

It features lead-free matte tin-plated terminations suitable for solder mounting. The capacitor operates reliably across a temperature range from -55°C to 125°C. Its construction is stacked multilayer ceramic for enhanced capacitance and performance.

This non-polar component exhibits negligible ESR and ESL, eliminating piezoelectric noise. Provided on tape and reel packaging, facilitating automated high-volume assembly processes. Manufactured in Mexico under strict quality standards for industrial and automotive applications.
