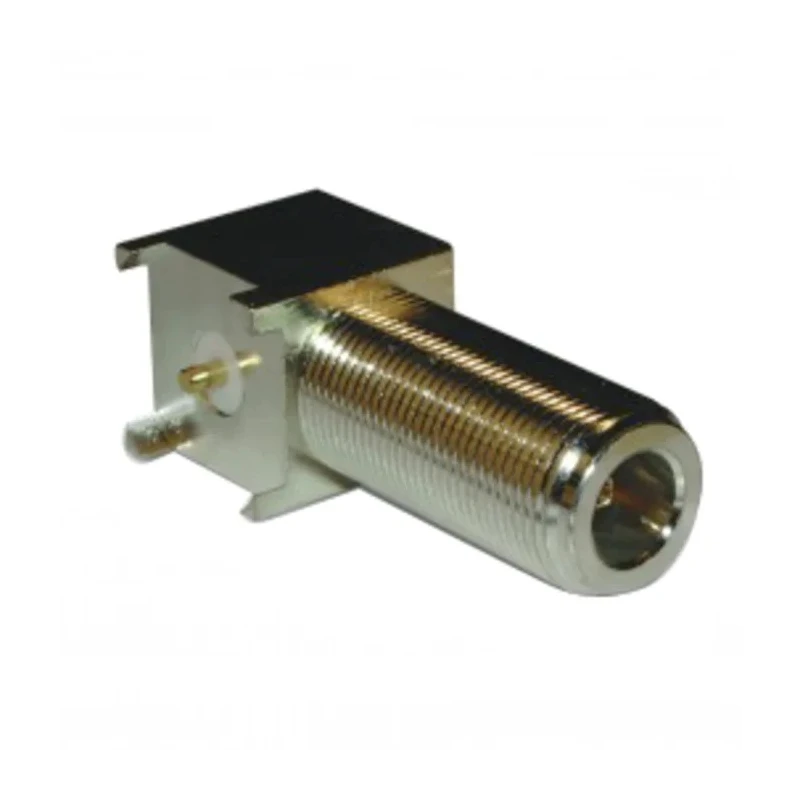

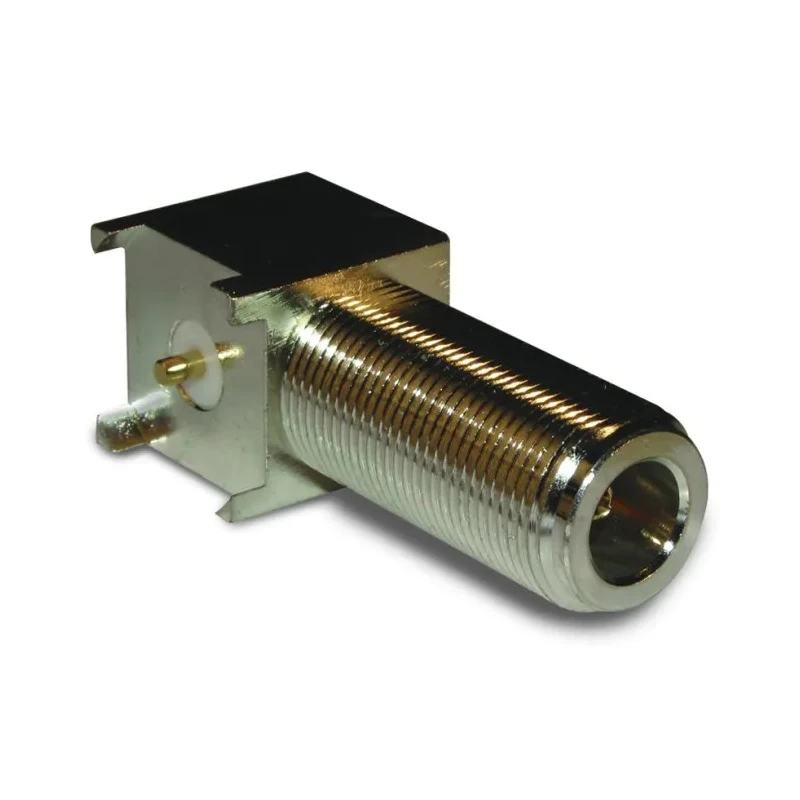

Amphenol RF N Type Series Coaxial Connector Through Hole Male N Connector 50 Ω Right Angle Body Solder 172234
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Right Angle |
| Model | 172234 |
| Mount Type | Through Hole |
| Operating Frequency | 11GHz |
| Contact Material | Brass |
| Series | N Type |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | N Connector |
| Body Plating | Tin |
Key Features
- Designed for durable, weatherproof RF connections up to 11 GHz frequency.
- Features threaded coupling mechanism for secure attachment and vibration resistance.
- Male connector gender with solder termination for coaxial cable.
- Constructed with brass contact material and gold-plated contacts for reliable conductivity.
- Suitable for industrial and commercial applications requiring consistent RF and mechanical performance.
- Body plating is tin to protect against corrosion and environmental factors.
- Operates reliably between -65°C and 165°C temperature range.
- Normal polarity and standard size ensure compatibility with various RF systems.
Product Description
Amphenol RF model 172234 is an N Type Series Coaxial Connector designed for use as a through hole male N connector with a right angle body solder termination. This connector supports an impedance of 50 Ω and operates up to a frequency of 11 GHz, making it ideal for applications demanding excellent RF performance and durability.
The connector features a threaded coupling mechanism that ensures secure connections resistant to vibration and environmental factors. The body plating is tin, which protects against corrosion, while the contact material is brass with gold plating to guarantee superior electrical contact and reliability.
This N Type connector is designed to meet the MIL-C-39012 specification standards for interchangeability and performance in military, industrial, and commercial environments. It maintains normal polarity and standard sizing to fit a broad range of coaxial cable systems.
Operating temperatures range from -65°C to 165°C, allowing use in harsh environments. Its through hole mount type and right angle orientation make it suitable for PCB and other assembly configurations where space optimization and reliability are critical.
Durable, weatherproof design suitable for industrial, laboratory, and manufacturing use. Threaded coupling mechanism for vibration resistance and secure connectivity. High performance up to 11 GHz ensuring excellent RF transmission.
Gold-plated brass contacts for reliable signal integrity and corrosion resistance. Wide operating temperature range enables use in diverse environmental conditions.
This Amphenol RF coaxial connector is widely applied in telecommunications, broadcast equipment, and other RF transmission systems. It offers ease of installation and dependable performance for demanding industrial requirements.
Explore our extensive range of Coaxial Connectors and related components in the Electronics & Electricals category at EnvMart for professional-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 11 GHz, making it suitable for applications requiring high RF performance.
The impedance rating of this connector is 50 Ω, which is standard for many RF applications.
It operates reliably within a temperature range of -65°C to 165°C, allowing for use in various environmental conditions.
This connector features a solder termination type, which is designed for secure connections with coaxial cables.
The contact material is brass with gold plating for reliable conductivity, while the body is tin-plated for corrosion resistance.
It features a threaded coupling mechanism that ensures secure attachment and resistance to vibration, enhancing connection reliability.
This model has a right angle orientation, making it suitable for applications where space optimization is important.
Yes, it meets the MIL-C-39012 specification standards, making it suitable for military, industrial, and commercial environments.
This connector uses a through hole mount type, which is ideal for PCB and other assembly configurations.
The connector is a male type, designed for compatibility with corresponding female connectors in RF systems.
It is widely applied in telecommunications, broadcast equipment, and other RF transmission systems requiring dependable performance.
The country of origin for this connector is China.
