ETA Thermal Magnetic Circuit Breaker 1-Pole 500mA Current Rating DIN Rail Mount 250V AC 65V DC 201-0.5A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	India
Range	201
Brand	ETA

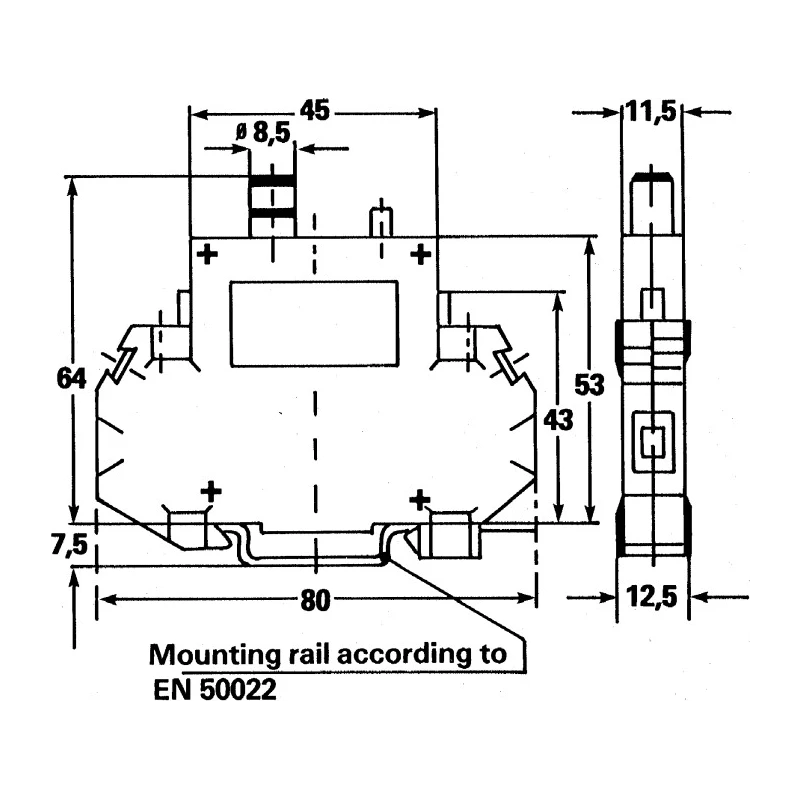

Height	64mm
Model	201-0.5A
Depth	80mm
Width	80mm
Mount Type	DIN Rail
Current Rating	500mA
Series	201
Terminal type	Recessed Terminal
Breaking Capacity	200A
Number of Poles	1
Standards/Approvals	CSA, LROS, VDE, DEMKO, ABS, BV, UL
Rated AC Voltage	250V ac
Rated DC Voltage	65V dc
Tripping Characteristics	Thermomagnetic, current characteristic depends on ambient temperature, time
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Button
Mount Hole Size	8.5 mm
ETA 2210 Thermal Circuit Breaker -, 500mA Current Rating 1-Pole, DIN RailBrand	ETA

Key Features

Rated for 250V AC and 65V DC operation with a breaking capacity of 200A.
Compact 12.5mm width housing suitable for professional equipment/system protection.
Thermal magnetic tripping mechanism with current characteristics dependent on ambient temperature and time.
Twin button operation with black reset and red trip for clear status indication.
Trip-free and tease-free operation ensures reliable performance under fault conditions.
Recessed terminal type providing secure and safe connections.
Mount hole size of 8.5 mm for secure DIN Rail installation.

Product Description

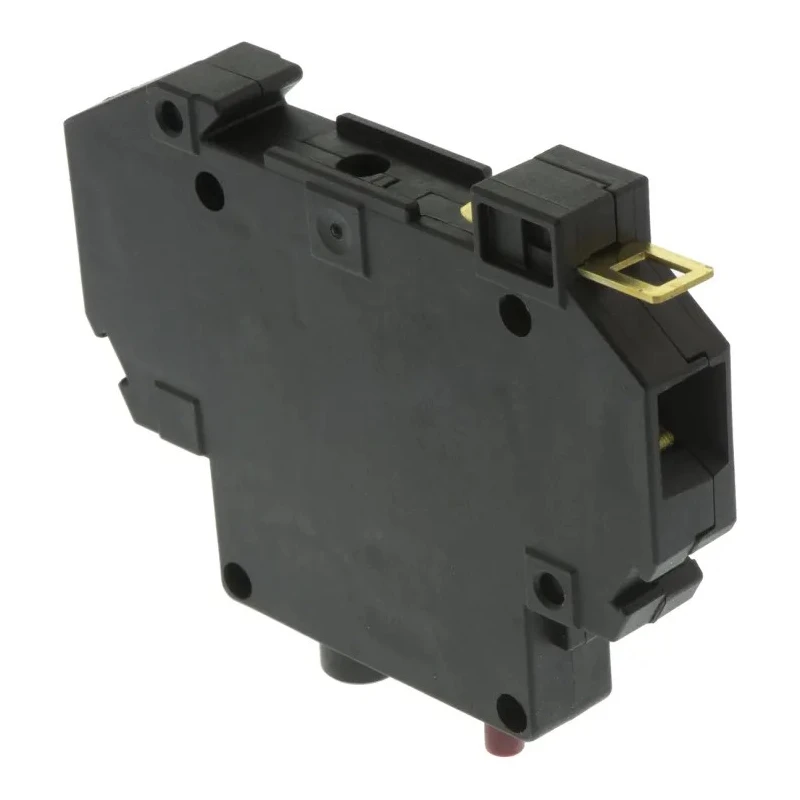

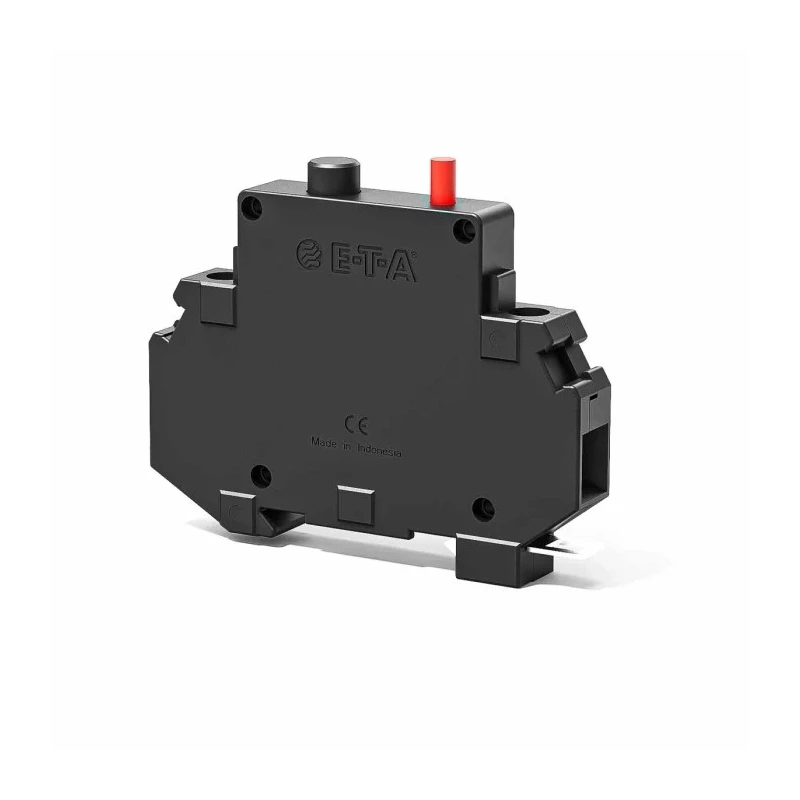

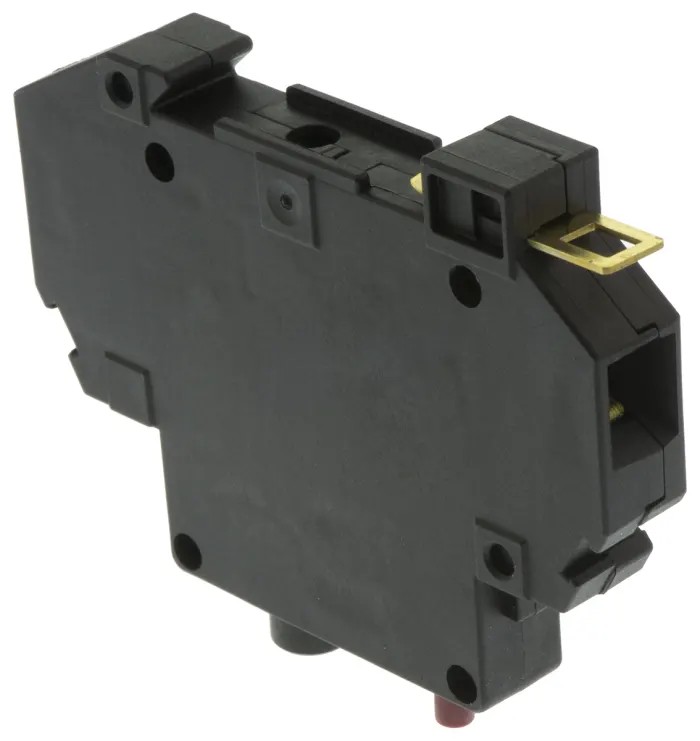

ETA 201-0.5A Thermal Magnetic Circuit Breaker is a single-pole device designed for protection of electrical equipment and systems. It features a thermal magnetic tripping mechanism with a 500mA current rating, supporting AC voltage of 250V and DC voltage of 65V. The circuit breaker is part of the ETA 201 series and is intended for mounting on standard DIN Rail in modular enclosures compliant with DIN 43 880 standards.

This circuit breaker offers close tolerance overload characteristics that allow finely tuned protection performance ideal for professional and industrial environments. The compact width of only 12.5mm is significantly narrower than conventional miniature Circuit Breakers that typically measure 17.5mm wide, allowing efficient use of panel space.

The tripping mechanism uses thermomagnetic characteristics where response depends on ambient temperature and the duration of the overload, providing precision protection. The breaker has a breaking capacity of 200A, suitable for handling fault currents and protecting circuits effectively.

Operation is facilitated by twin buttons including a black reset button and a red trip indication button, enabling clear visual status and easy manual reset. The breaker guarantees trip-free and tease-free operation, ensuring the contacts open reliably during fault conditions without the possibility of manual override.

Recessed terminals provide safe and secure connections that comply with electrical safety standards. The recommended mounting is by DIN Rail with a hole size of 8.5 mm ensuring rigid installation in electrical panels.

Rated AC Voltage: 250V. Rated DC Voltage: 65V. Current Rating: 500mA. Breaking Capacity: 200A. Number of Poles: 1. Width: 12.5 mm. Mount Type: DIN Rail. Reset Type: Button.

This thermal magnetic circuit breaker is suitable for use in electrical automation, industrial manufacturing, and other commercial applications where reliable circuit protection and compact panel design are critical. It meets multiple standards and approvals including CSA, LROS, VDE, DEMKO, ABS, BV, and UL, ensuring compliance and quality.
