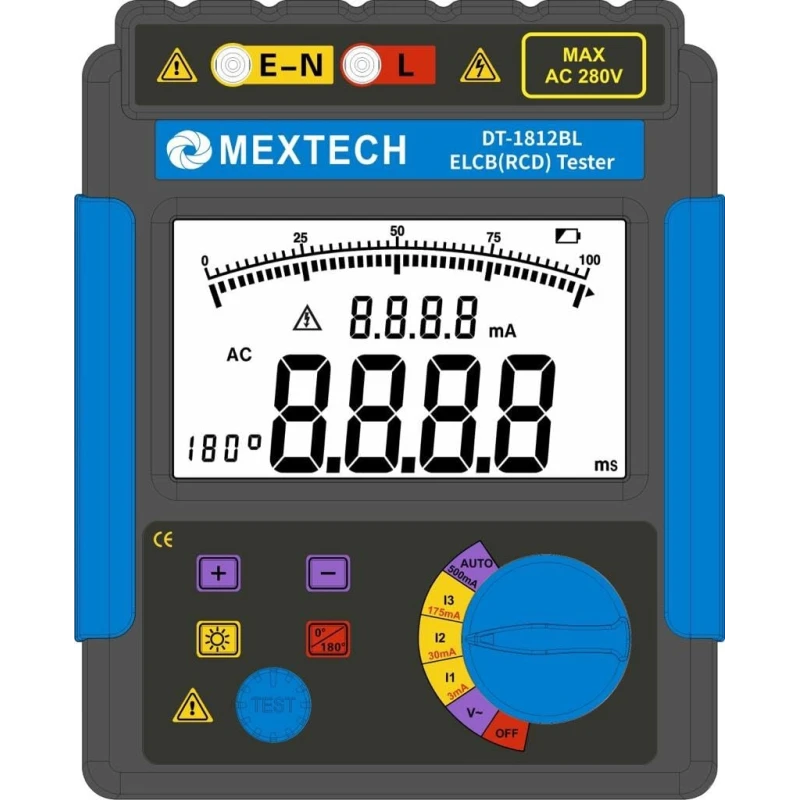

Mextech ELCB Testers DT1812BL
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Host / Meter Bag / Probe Test lines 2pcs / Alligator Clip / Instruction Manual. |
| AC Voltage Range | 0-600V |
| Test Mode | Manual |
| Brand | Mextech |
| Model | DT1812BL |
| Current Accuracy | ±10%rgt±5dgt |
| AC Voltage Accuracy | 2%rgt±5%dgt |
| Insulation Strength | ≥100MΩ / AC 2kV/rms(between the shell and the screw). |
| Rated Voltage | AC 220V |
| Leakage Current Gears | 3mA / 5mA / 7mA / 10mA / 15mA / 20mA / 30mA / 35mA / 50mA / 100mA / 125mA / 150mA / 175mA / 250mA / 275mA / 300mA / 375mA / 500mA. |
| Rotary Knob Gear | OFF- V- X1- X2- X3- Auto(6gears) |
| Leakage Initiating Time Range | 0-999ms. |
| Leakage Initiating Time Accuracy | 5%rgt±3%dgt |
| Phase Select | 0°/180° |
Key Features
- Display Mode: 4 digital large LCD Display, white screen backlight
- Data Hold: After testing finish, the interface will hold the test result automatic
- Failure Information Indication: LCD display “999” over time indication, it is possible that the rated initiating current grade of tested is too small or the leakage protector is faulty.
- Battery Voltage: when the battery voltage lower than 7.4V, low battery voltage symbol display
- Working Current: 100mA Max.
- Operating Temperature & Humidity: -10°C – 40°C, Below 80% RH.
- Storage Temperature & Humidity: -10°C – 60°C, below 70% RH.
- Power Supply: 1.5V X 6PCS (DC 9V)
- Test wire Length: 1.5M
- Unit Size: 215 X 178 X 83 mm.
- Weight – 2kg (including all accessories)
Product Description
Mextech DT1812BL ELCB Tester is a specialized instrument designed to ensure the safe and reliable operation of Earth Leakage Circuit Breakers. This portable tester allows electricians and safety inspectors to quickly verify ELCB functionality by simulating fault conditions and checking trip times and current leakage levels. It supports different voltage ranges and trip current values, making it compatible with a wide range of residential, commercial, and industrial systems. The bright digital display and intuitive interface ensure ease of use, even in dim environments. Built for durability and accuracy, this tester is a must-have for compliance verification, routine maintenance, and safety audits.
Available on EnvMart, these Circuit Breakers are designed to protect electrical circuits from overloads and short circuits. Mextech Circuit Breakers offer reliability and durability, making them ideal for both residential and industrial applications.
