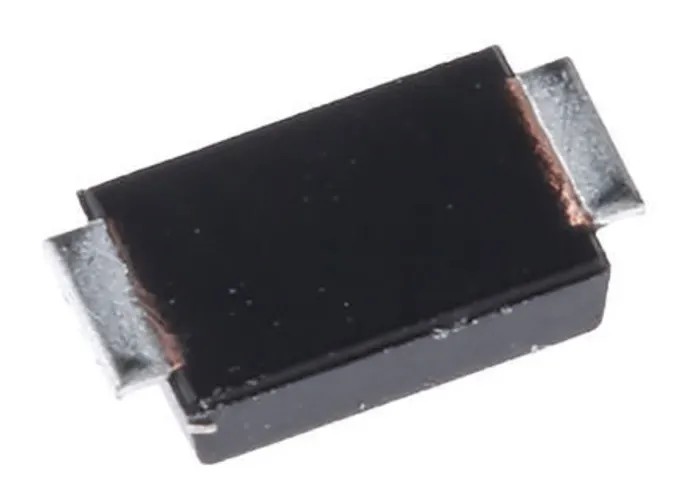

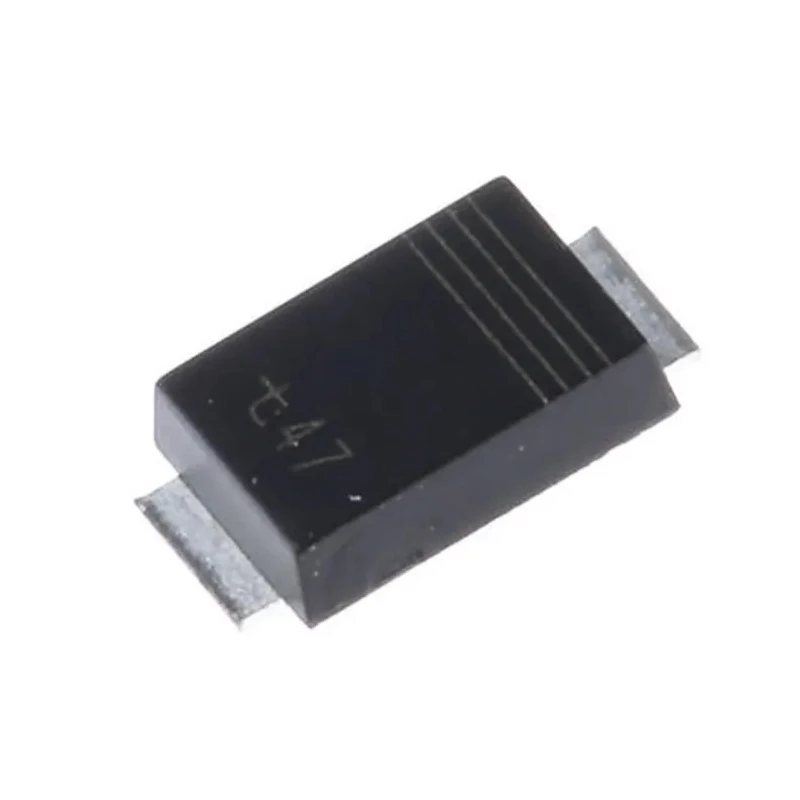

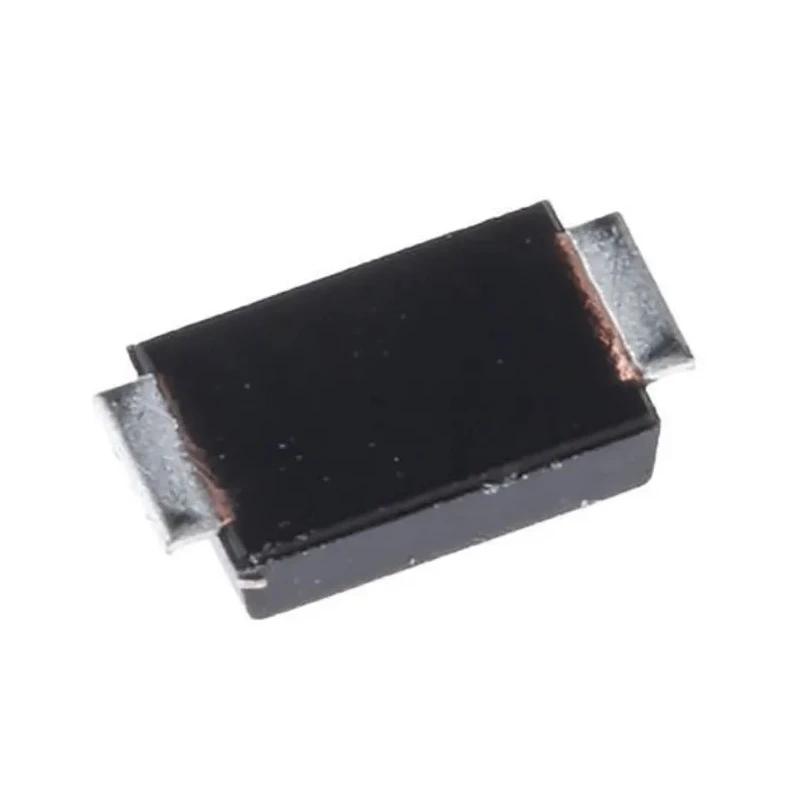

ROHM Schottky Barrier Diode 60V 1A SOD-323HE Surface Mount RB160VAM-60TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.5mm |
| Length | 2mm |
| Model | RB160VAM-60TR |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | RB160VAM-60 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323HE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 40mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 17A |
| Maximum Forward Voltage Vf | 670mV |
| Peak Reverse Recovery Time trr | 5.8ns |
Key Features
- Reliable Schottky barrier diode suitable for high-efficiency rectification applications.
- Rated for a maximum continuous forward current of 1A and peak reverse repetitive voltage of 60V.
- Surface mount design with SOD-323HE package provides compact installation.
- Two-pin configuration ensures straightforward PCB integration and assembly.
- Low forward voltage of 670mV and fast reverse recovery time of 5.8ns support high-speed switching.
- Operating temperature range from -55°C to 150°C for robust performance in diverse environments.
- Peak non-repetitive forward surge current rated at 17A for transient load capability.
- Peak reverse current of 40mA enables reliable protection against leakage.
Product Description
ROHM RB160VAM-60TR is an advanced Schottky barrier diode engineered for high-efficiency and fast-switching rectification tasks. Featuring a surface mount SOD-323HE package, this diode offers a maximum continuous forward current of 1A and supports a peak reverse repetitive voltage of 60V, making it suitable for demanding power and signal management circuits.
The RB160VAM-60TR incorporates a two-pin configuration which simplifies integration with printed circuit boards and surface mount technology. It is optimized for low forward voltage (670mV), enhancing efficiency and minimizing power loss. The device’s fast reverse recovery time of 5.8ns ensures rapid switching performance, crucial for high-frequency and sensitive electronic applications.
Reliable Schottky barrier diode suitable for high-efficiency rectification applications. Rated for a maximum continuous forward current of 1A and peak reverse repetitive voltage of 60V. Surface mount design with SOD-323HE package provides compact installation.
Two-pin configuration ensures straightforward PCB integration and assembly. Low forward voltage of 670mV and fast reverse recovery time of 5.8ns support high-speed switching. Operating temperature range from -55°C to 150°C for robust performance in diverse environments.
Peak non-repetitive forward surge current rated at 17A for transient load capability. Peak reverse current of 40mA enables reliable protection against leakage.
Its operational temperature range spans from -55°C up to 150°C, granting dependable reliability even under extreme conditions. The height, length, and width are 0.5mm, 2mm, and 1.4mm respectively, allowing compact configuration for spatially constrained assemblies. This product is part of the RB160VAM-60 series and is not classified under automotive standards, making it most suitable for industrial, commercial, laboratory, and high-frequency applications such as power supplies, signal conditioning, and switching circuits.
Discover more industrial semiconductor products in the Schottky Diodes & Rectifiers category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the RB160VAM-60TR is 1A.
This model supports a peak reverse repetitive voltage of 60V.
The maximum forward voltage drop for this diode is 670mV.
The reverse recovery time for the RB160VAM-60TR is 5.8ns.
The dimensions of the RB160VAM-60TR are 0.5mm in height, 2mm in length, and 1.4mm in width.
The operating temperature range for this diode spans from -55°C to 150°C.
This model features a two-pin configuration.
The peak non-repetitive forward surge current rating for this diode is 17A.
The RB160VAM-60TR uses a SOD-323HE package type for surface mounting.
The peak reverse current for the RB160VAM-60TR is rated at 40mA.
This Schottky diode is suitable for high-efficiency rectification applications, including power supplies and signal conditioning.
The RB160VAM-60TR is manufactured in India.
