Nexperia Resistor-Equipped NPN Transistor, 100mA, 50V, Surface Mount, DFN1110D-3 Package PDTC114YQBZ

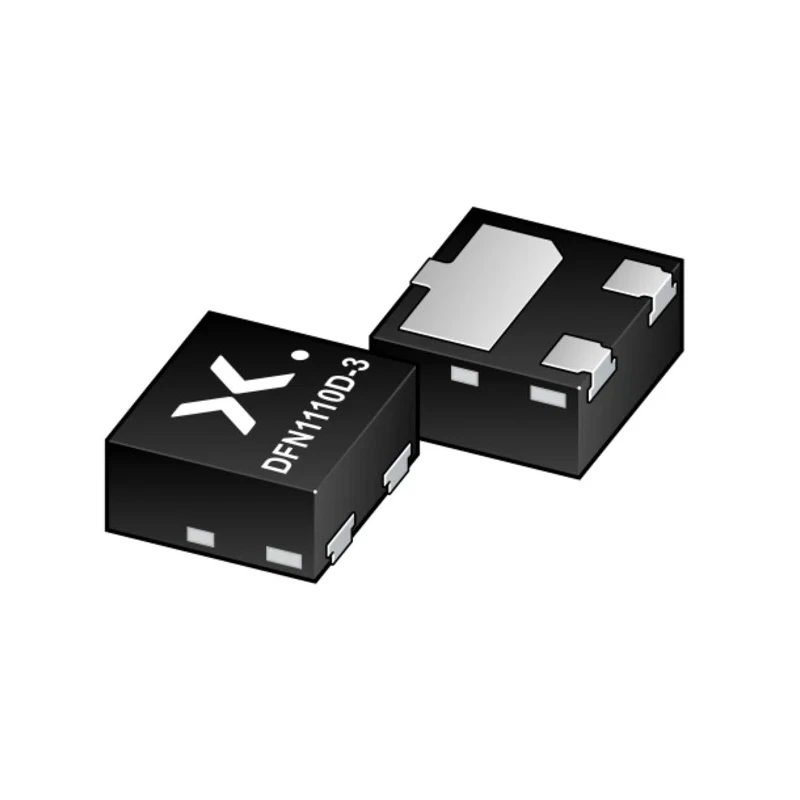

The Nexperia PDTC114YQBZ is an NPN resistor-equipped transistor housed in a compact DFN1110D-3 (SOT8015) plastic package. Designed for demanding digital applications, this device supports a maximum collector current of 100mA and can withstand collector-emitter voltages up to 50V. Key features include integrated base and input resistors, which simplify circuit design, reduce external component count, and lower assembly costs.

The DFN1110D-3 leadless package offers an ultra-low 0.5mm profile and is suited for high-density surface-mount designs. Its side-wettable flanks support automated optical inspection (AOI) of solder joints in manufacturing lines.

The PDTC114YQBZ is qualified to automotive standard AEC-Q101, making it highly reliable for automotive and industrial applications where elevated quality standards are critical.

A high transition frequency of 230MHz ensures fast switching responses in digital circuits. With a minimum DC current gain (hFE) of 100, it ensures consistent performance across a wide range of control and switching tasks.

The built-in resistors allow this device to serve as a direct interface for IC logic inputs, power load switching, signal inverters, and other discrete switching functions. It operates over a temperature range from -55°C to +150°C and is RoHS compliant for eco-friendly designs.

Industrial and laboratory use cases include automated equipment, digital control circuits, automotive modules, and compact PCB assemblies that require reliable and efficient signal switching without excess board space.

For those seeking a cost-saving, compact alternative to standard transistor-discrete resistor designs, the Nexperia PDTC114YQBZ delivers performance and space efficiency. Explore additional surface-mount and automotive-qualified Bipolar Transistors in the EnvMart semiconductor and electronics categories.
