Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 4 Channels 200 MHz MSO24 2-BW-200

Free Delivery in India | Lowest Global Shipping Charges

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 4 Channels 200 MHz MSO24 2-BW-200

Name: Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 4 Channels 200 MHz MSO24 2-BW-200
Brand: TEKTRONIX
SKU: 92917



Category Oscilloscope Brand TEKTRONIX Condition New

Specifications

Country of Origin	China
Display Type	Capacitive Touch Display
Brand	Tektronix
Battery Life	8h
Battery type	Lithium-ion
Height	210mm
Model	MSO24 2-BW-200
Depth	40.4mm
Width	344mm
Bandwidth	200MHz
Series	2 Series MSO
Screen Size	10.1 in
Number Of Channels	4
Vertical Resolution	8 bit
Interface Type	CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB
Oscilloscope Type	Ultra Compact
Digital Channels	16
Standards/Approvals	CE, RoHS, UL
Safety Category Level	CAT II
Oscilloscope Form	Mixed Signal
Lightweight and Portable	Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs)
Award Winning Touchscreen UI	Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function
Compact	Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm
Battery Powered	Optional battery pack supports two hot-swappable batteries for hours of unplugged testing
Bench Space Saver	VESA mount compatible with many off-the shelf VESA accessories
Built-in VNC Server	View and control your oscilloscope from PC, Tablet or Phone
Optional Extras Includes	Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below)

Key Features

200 MHz bandwidth for versatile signal testing and analysis.
Four analog channels plus optional 16 digital channels for comprehensive mixed signal measurements.
10.1-inch intuitive capacitive touchscreen enables easy navigation and configuration.
Lithium-ion battery support with long operational life for portable, bench, or field use.
Compact, lightweight design (1.8 kg) maximizes bench space and portability.
VESA mount compatibility enables flexible installation and workspace optimization.
Advanced connectivity including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB interfaces.
Includes TPP0200 200 MHz probes (one per channel), stand, power supply, calibration certificate, and translated manuals.

Product Description

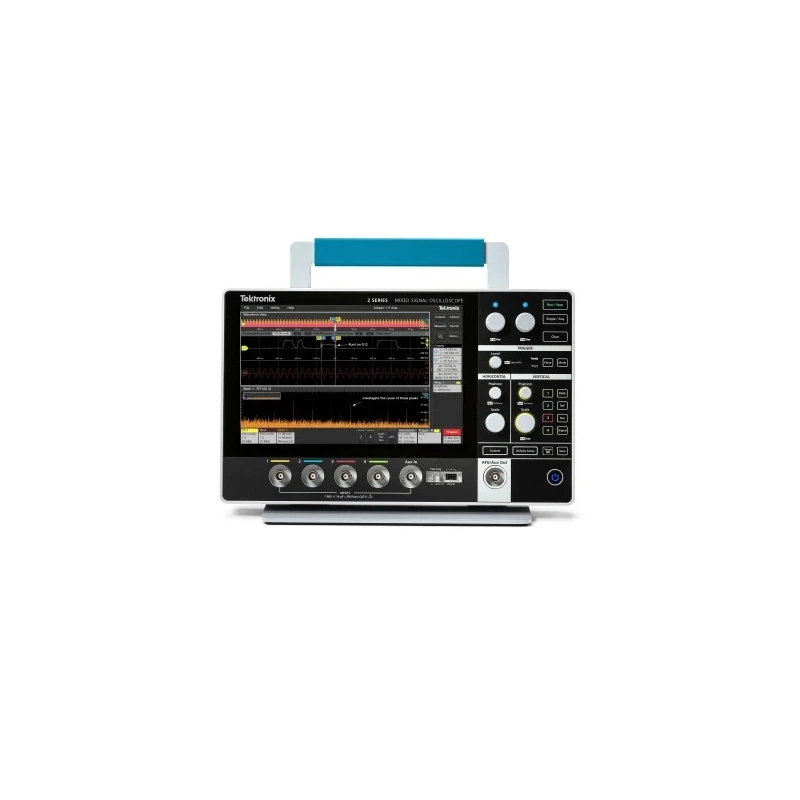

Tektronix MSO24 2-BW-200 2 Series MSO Ultra Compact Mixed Signal Oscilloscope, featuring a 200 MHz bandwidth and four analog channels, stands as an advanced instrument for electronic debug, test, and analysis. Designed to suit laboratory, industrial, manufacturing, and field applications, this oscilloscope blends performance and versatility in a portable, space-saving package.

The MSO24 2-BW-200 supports a wide range of connectivity standards including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, enabling protocol decoding and seamless integration into electronics test environments. Its capacitive touchscreen UI is highly intuitive, allowing users to access functions swiftly and configure complex measurements efficiently. The mixed signal design offers comprehensive analysis by combining analog and optional digital channels in a single unit.

200 MHz bandwidth with up to 2.5 GS/s sample rate provides precise waveform capture. Four analog channels and optional extras like 16 digital MSO channels for flexible signal analysis. 10.1 in capacitive color touchscreen delivers vivid display and responsive touch interface.

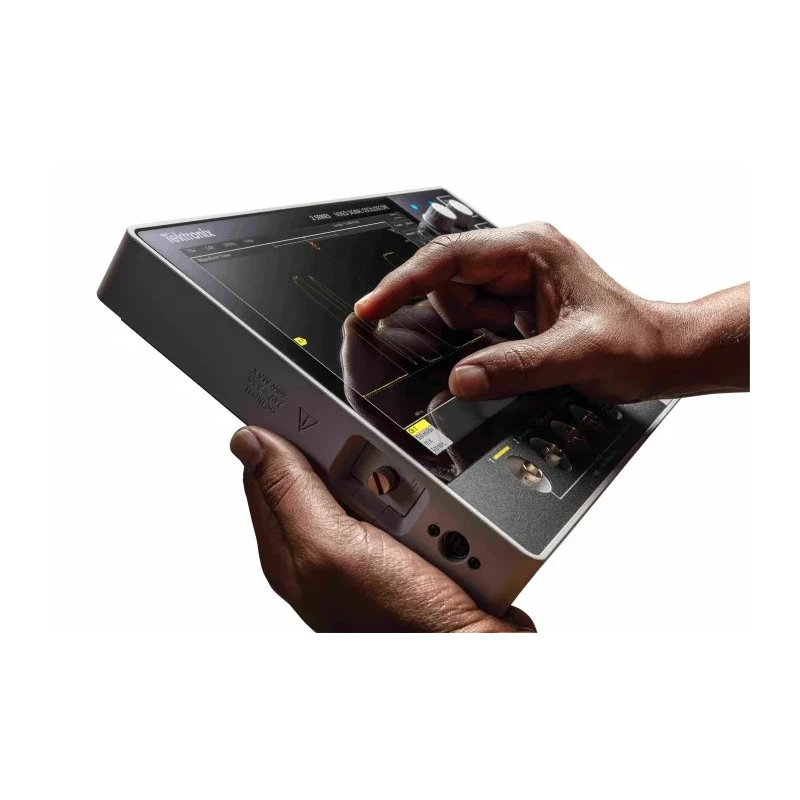

Lightweight (1.8 kg instrument only) and ultra-compact dimensions (H 210 mm × W 344 mm × D 40.4 mm) make relocation easy. Lithium-ion battery (optional) supports hot-swappable batteries and up to 8 hours operation, ideal for mobile testing.

Includes advanced triggers, protocol decode, digital pattern generator, and optional frequency counter and DVM functions. Bench space saver with VESA mount compatibility for flexible installation.

Ships with TPP0200 probes (one per channel), stand, external power supply, embedded help, translated safety manual, and calibration certificate (traceable to national standards and ISO9001/ISO17025 registration).

Safety rated to CAT II with CE, RoHS, and UL compliance.

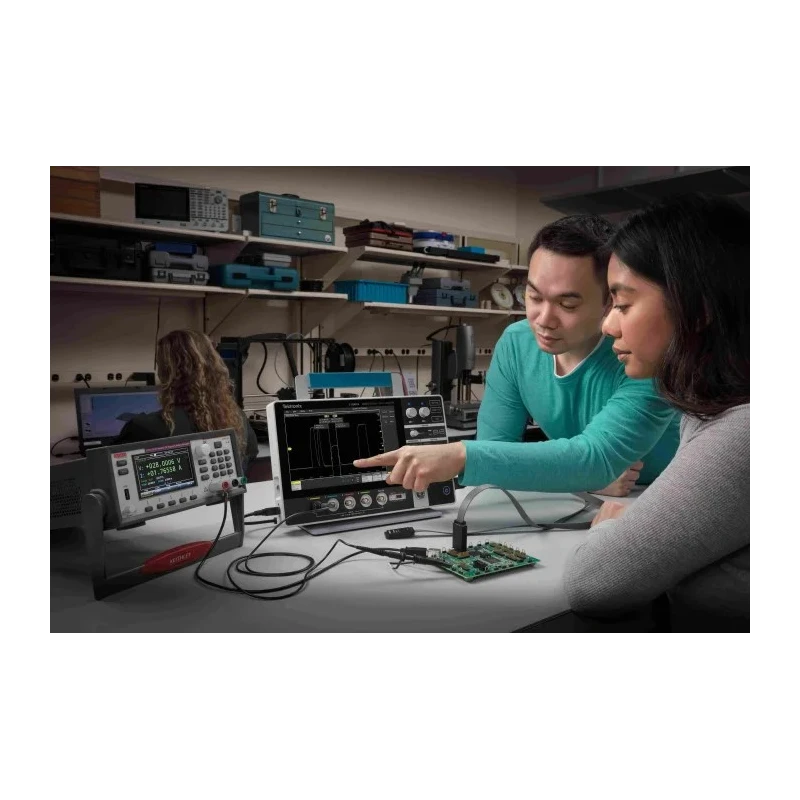

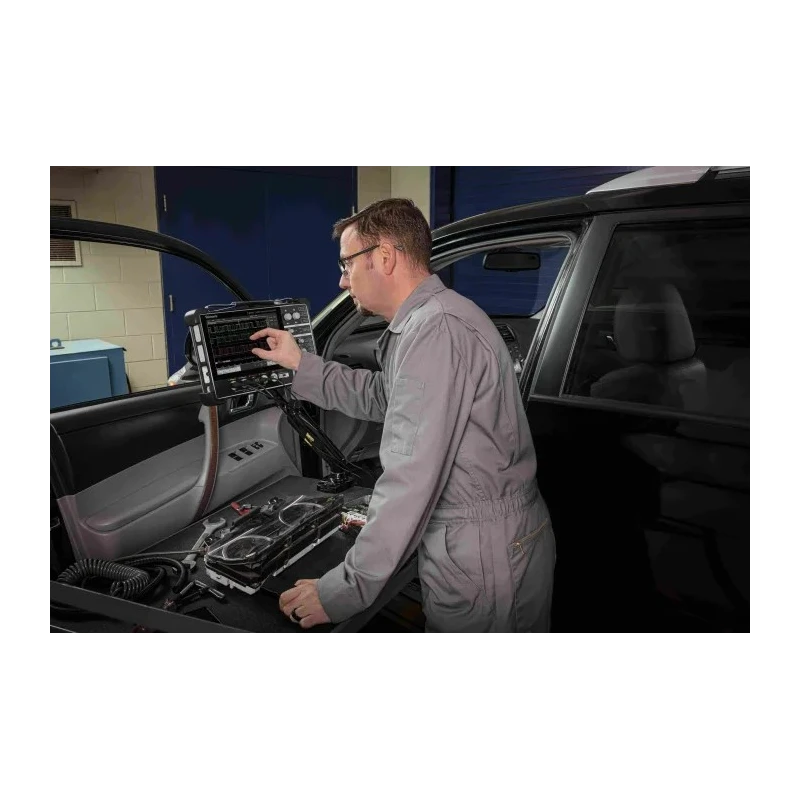

Typical industrial applications include electronics manufacturing, R&D, process troubleshooting, automotive CAN bus diagnostics, and field service. Laboratory users benefit from protocol analysis, high sample rate, and mixed signal capabilities. The oscilloscope is equally suited for portable use thanks to battery operation and VESA mounting.

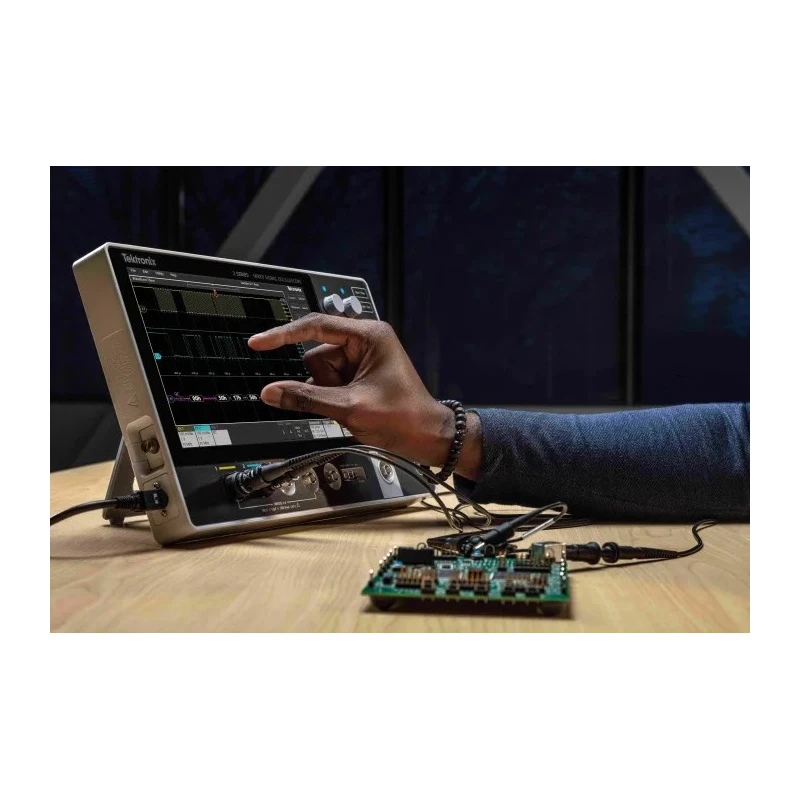

Tektronix's award-winning touchscreen user interface ensures effortless operation and reduces training time, while built-in VNC server capability enables remote viewing and control from PCs, tablets, or smartphones.

Whether performing bench measurements or mobile diagnostics, the Tektronix MSO24 2-BW-200 streamlines workflow and enhances productivity across industrial, laboratory, and commercial environments. Explore more industry-leading oscilloscopes and measurement solutions in the EnvMart Oscilloscope category.
