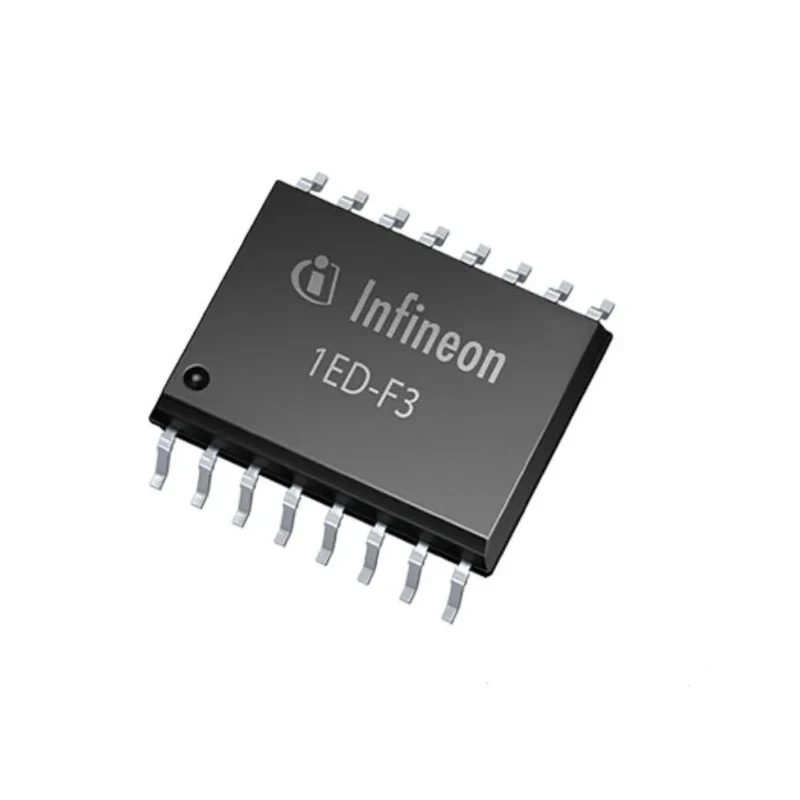

Infineon MOSFET Gate Driver 8.5 A, 16-Pin, 5V, PG-DSO-16 1ED3322MC12NXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 1ED3322MC12NXUMA1 |
| Output Current | 8.5A |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-DSO-16 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Fall Time | 20ns |
| Driver Type | MOSFET |
Key Features
- Single-channel isolated MOSFET gate driver with short-circuit protection.
- Peak output current of 8.5 A ensures reliable switching in power circuits.
- Operates with supply voltages from 3.3 V to 5 V for flexible integration.
- Features a 16-pin PG-DSO-16 package suitable for automated assembly.
- Active Miller clamp and soft-off functions improve safety and performance.
- Wide operating temperature range from -40°C to 150°C for harsh environments.
- High common-mode transient immunity for robust signal integrity.
- Designed for use with IGBTs, Si, and SiC MOSFETs in industrial power systems.
Product Description
Infineon 1ED3322MC12NXUMA1 MOSFET Gate Driver combines advanced protection and isolation features to provide reliable driving of industrial power transistors. Engineered for use in demanding power management and inverter systems, this gate driver delivers a peak output current of 8.5 A from a compact 16-pin PG-DSO-16 package, optimizing the performance of IGBTs, Si, and SiC MOSFETs. The device ensures operational flexibility thanks to a wide supply voltage range of 3.3 V - 5 V and is compatible with both unipolar and bipolar operation modes.
Safety and reliability are built in through integrated short-circuit protection (DESAT), active Miller clamp, soft-off capability, and active shutdown. These features work together to guard power circuits against voltage spikes, misfiring, and electrical faults, making the 1ED3322MC12NXUMA1 ideal for use in industrial motor drives, photovoltaic inverters, and high-voltage power supplies.
Single-channel galvanically isolated gate driver with high transient immunity. Supports up to +6 A sourcing and -8.5 A sinking typical peak output current. Absolute maximum output supply voltage of 40 V. Propogation delay tight matching with a maximum of 15 ns, enhancing timing reliability in complex assemblies.
Suitable for automated reel supply and machine insertion for production efficiency. Wide operating temperature range enables usage in extreme environments, from -40°C to 150°C. No automotive standard compliance, focused on industrial and commercial use cases.
The Infineon 1ED3322MC12NXUMA1 offers robust protection features ideal for industrial and electronic power applications such as industrial drives, HVAC systems, power management ICs, and renewable energy equipment. Its high common-mode transient immunity ensures signal integrity even in noisy electrical environments.
Explore more MOSFET Gate Drivers and power management solutions in the Semiconductors category on EnvMart. Infineon is a trusted name for advanced electronic components catering to professional electronics, automation, and industrial sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Infineon 1ED3322MC12NXUMA1 MOSFET gate driver has a peak output current of 8.5 A, ensuring reliable switching in power circuits.
This gate driver operates with supply voltages ranging from 3.3 V to 5 V, providing flexibility for integration into various systems.
The device comes in a 16-pin PG-DSO-16 package, which is suitable for automated assembly processes.
It operates effectively in a wide temperature range from -40°C to 150°C, making it suitable for harsh environments.
This model includes short-circuit protection (DESAT), an active Miller clamp, and soft-off capability to enhance safety and reliability in power circuits.
It is designed for use with IGBTs, silicon (Si), and silicon carbide (SiC) MOSFETs in industrial power systems.
The absolute maximum output supply voltage for the 1ED3322MC12NXUMA1 is 40 V.
The fall time for this model is specified at 20 ns, contributing to its performance in timing-sensitive applications.
It features high common-mode transient immunity, which helps maintain robust signal integrity even in noisy electrical environments.
This MOSFET gate driver has a pin count of 16, allowing for various connections in circuit designs.
No, the 1ED3322MC12NXUMA1 is not compliant with automotive standards and is focused on industrial and commercial use cases.
It is suitable for use in industrial motor drives, photovoltaic inverters, and high-voltage power supplies, among other power management applications.
