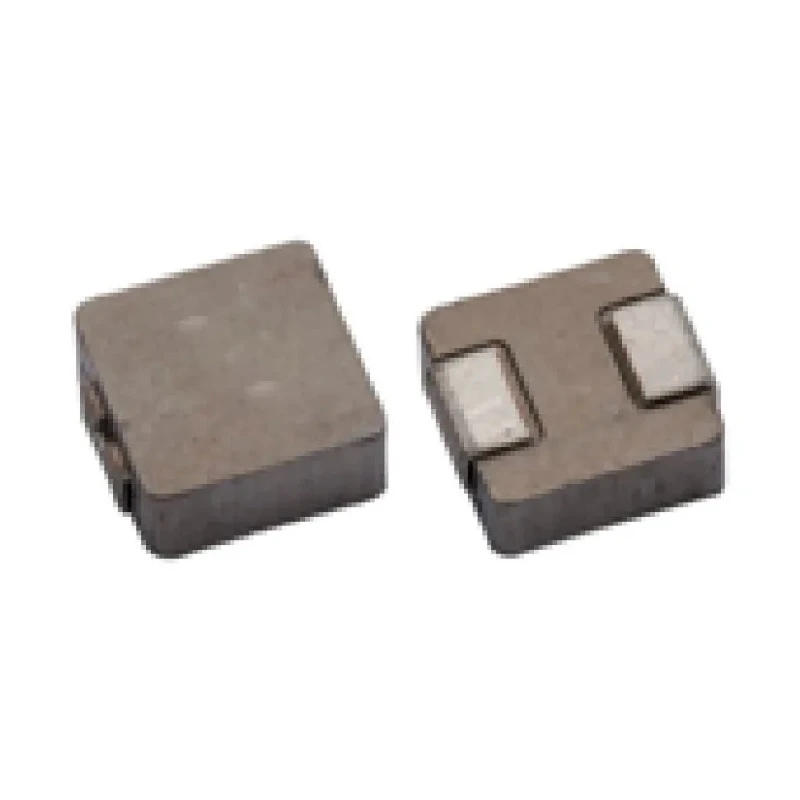

Abracon Shielded Surface Mount Inductor Iron Core 6.8μH ±20% 4.5A Flat Wire ASPI-0630LR-6R8M-T15
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 7.2mm |
| Model | ASPI-0630LR-6R8M-T15 |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | ASPI-0630LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 4.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 60mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Inductance value of 6.8μH with ±20% tolerance.
- Maximum DC current rating of 4.5A enables usage in high-current power supplies.
- Shielded construction provides enhanced EMI protection.
- Iron core material ensures high saturation current capability.
- Surface mount package, ideal for tape and reel assembly.
- RoHS compliant and suitable for modern electronics manufacturing.
Product Description
Abracon ASPI-0630LR-6R8M-T15 is a shielded surface mount inductor featuring a robust iron core with flat wire winding for optimal performance in DC/DC converters. With a 6.8μH inductance and ±20% tolerance, it provides reliable operation for power electronics.
The device supports a maximum DC current of 4.5A, making it well-suited for notebook, netbook, desktop, and server power supply circuits. Its shielded design ensures minimal electromagnetic interference, crucial for densely packed electronic assemblies.
Inductance value of 6.8μH with ±20% tolerance. Maximum DC current rating of 4.5A enables usage in high-current power supplies. Shielded construction provides enhanced EMI protection. Iron core material ensures high saturation current capability.
Surface mount package, ideal for tape and reel assembly. RoHS compliant and suitable for modern electronics manufacturing.
Constructed with flat wire winding, the inductor offers low resistance and high reliability, supporting frequency applications up to 3 MHz. Its compact size, with 7.2mm length and 3mm height and depth, fits a range of PCB layouts for industrial equipment, laboratory instruments, and advanced consumer electronics.
The ASPI-0630LR-6R8M-T15 series is typically used in DC/DC converters, low-profile and high-current power supplies, and is compatible with reflow soldering methods. Adherence to RoHS standards ensures quality and environmental compliance.
Abracon is known for precision passive components, and this model combines quality shielding and advanced iron core technology, meeting demanding power electronics requirements. Explore Surface Mount Inductor components from Abracon and other brands for efficient design and energy management in your applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 6.8μH with a tolerance of ±20%.
It has a maximum DC current rating of 4.5A, making it suitable for high-current power supplies.
The ASPI-0630LR-6R8M-T15 features a shielded construction with flat wire winding, which enhances its performance and minimizes electromagnetic interference.
This model has a length of 7.2mm and a height and depth of 3mm.
The inductor operates within a temperature range of -55°C to 125°C.
The core material of this inductor is iron, which contributes to its high saturation current capability.
It is packaged in tape and reel format, which is ideal for automated assembly processes.
The ASPI-0630LR-6R8M-T15 is RoHS compliant, ensuring it meets environmental regulations for electronics manufacturing.
The maximum DC resistance is 60mΩ, which supports efficient operation in power applications.
This inductor is commonly used in DC/DC converters and high-current power supplies for notebooks, desktops, and servers.
This model has a pin count of 2, suitable for surface mount applications.
The flat wire winding design contributes to low resistance and high reliability, enhancing performance in various frequency applications up to 3 MHz.
