Omron Timer Relay , 1-Contact, Multifunction, 0.1 s - 10 min, SPDT, IP40, Socket Type H3RN

Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin Japan
Brand Omron
Height 53.4mm
Length 31.2mm
Model H3RN
IP Rating IP40
Mode Multifunction
Width 12.8mm
Series H3RN
Maximum Operating Temperature 55°C
Contact Configuration SPDT
Minimum Operating Temperature -10°C
Operating Modes ON delay, Flicker OFF start, Flicker ON start
Time Range 0.1 s to 10 min
Terminal type Socket
Standards/Approvals CSA, UR, EN
Number of Contacts 1
Number of Timer Functions Multifunction
Switching Voltage 24V dc
Contact Current 3A
Supply DC Voltage 48 V dc
Supply AC Voltage 24V ac
Omron Socket For Use With H3RN SeriesBrand Omron
Omron Plug In Timer Relay, 24V dc, 2-Contact, 0.1 → 600s, SPDTBrand Omron

Key Features

  • Features multifunction timer operation for flexible automation applications.
  • SPDT contact configuration ensures reliable switching performance.
  • Wide timing range from 0.1 seconds to 10 minutes enables precise interval control.
  • Plug-in socket design simplifies installation and maintenance.
  • Rated for 24VDC and compatible 48V DC/24V AC supply voltages.
  • IP40 enclosure provides basic dust protection for industrial environments.
  • Supports ON delay, Flicker OFF start, and Flicker ON start operation modes.
  • Used in industrial automation, electronic systems, and process scheduling.

Product Description

Omron H3RN-1 24VDC timer relay is a compact multifunction device designed for precise interval timing and automated control in industrial, electronic, and electrical systems. This relay offers single-contact SPDT switching and a wide timing range of 0.1 seconds to 10 minutes, making it versatile for a broad range of process control tasks.

With a plug-in socket design, the H3RN-1 24VDC facilitates quick installation and easy replacement, ensuring reduced downtime and maintenance costs. Rated for 24VDC operation with compatibility for 48 VDC and 24 VAC supply voltages, it adapts readily to various power systems. The relay delivers a maximum contact current of 3A, suitable for handling moderate loads in industrial control panels.

Its multifunction timer functionality encompasses ON delay, Flicker OFF start, and Flicker ON start modes, providing customizable performance. The relay is protected by an IP40 enclosure, keeping out basic dust and debris typical to industrial environments.

Features multifunction timer operation for flexible automation applications. SPDT contact configuration ensures reliable switching performance. Wide timing range from 0.1 seconds to 10 minutes enables precise interval control.

Plug-in socket design simplifies installation and maintenance. Rated for 24VDC and compatible 48V DC/24V AC supply voltages. IP40 enclosure provides basic dust protection for industrial environments. Supports ON delay, Flicker OFF start, and Flicker ON start operation modes.

Used in industrial automation, electronic systems, and process scheduling.

Applications include interval timing in industrial automation, controlling processes in electronic devices, time delay trigger functions in electrical equipment, and scheduling in mechanical systems. Omron's H3RN-1 24VDC timer relay is employed wherever precise, reliable timing operations are required in manufacturing, water treatment plants, HVAC systems, laboratories, and commercial process control.

Explore more Omron Timer Relays and advanced automation solutions from EnvMart's Electronics & Electricals catalogue.

Omron Timer Relay , 1-Contact, Multifunction, 0.1 s - 10 min, SPDT, IP40, Socket Type H3RN
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a timing range from 0.1 seconds to 10 minutes, allowing for precise interval control in various applications.

The timer relay has a single-contact SPDT (Single Pole Double Throw) configuration, which ensures reliable switching performance.

It supports multiple operating modes including ON delay, Flicker OFF start, and Flicker ON start, providing flexibility for different timing applications.

The maximum contact current for this unit is 3A, making it suitable for handling moderate loads in industrial control panels.

This model is rated for 24V DC operation and is also compatible with 48V DC and 24V AC supply voltages.

The timer relay has an IP40 enclosure rating, providing basic dust protection for use in industrial environments.

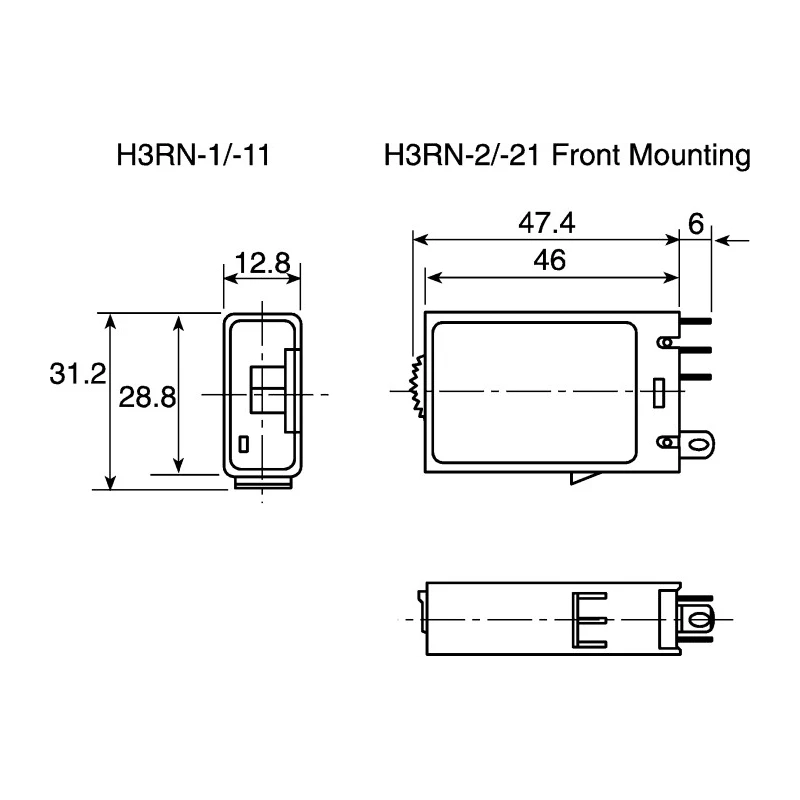

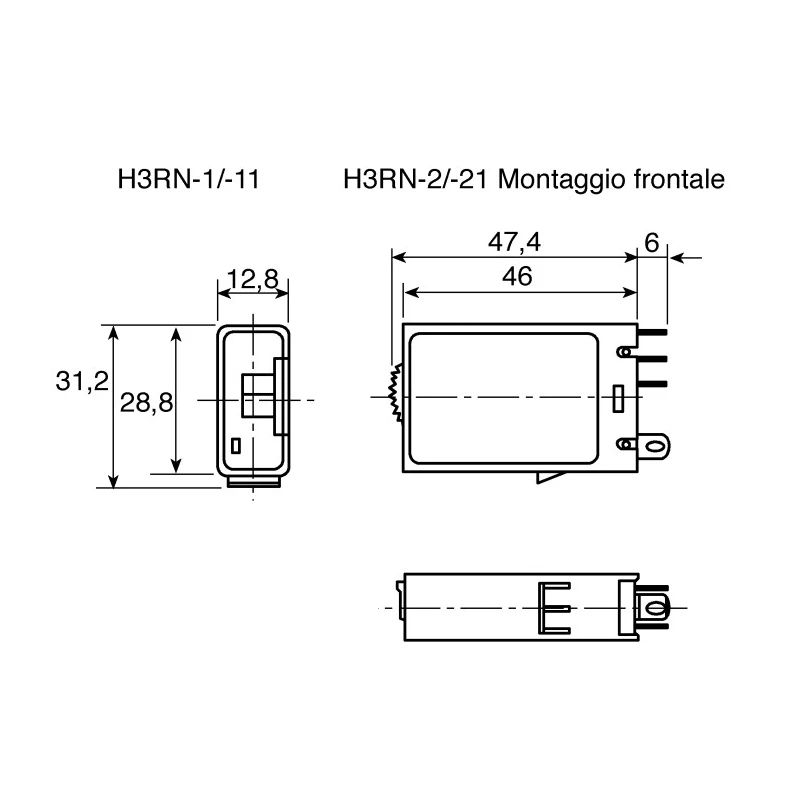

This unit measures 53.4mm in height, 31.2mm in length, and 12.8mm in width, making it compact for various installations.

The minimum operating temperature is -10°C, while the maximum operating temperature is 55°C, suitable for a range of environments.

It uses a socket type terminal, which simplifies installation and maintenance processes.

The H3RN timer relay complies with CSA, UR, and EN standards, ensuring it meets specific regulatory requirements.

This model is suitable for interval timing in industrial automation, controlling processes in electronic devices, and scheduling in mechanical systems.

The model number of this timer relay is H3RN, which is part of Omron's multifunction timer relay series.
