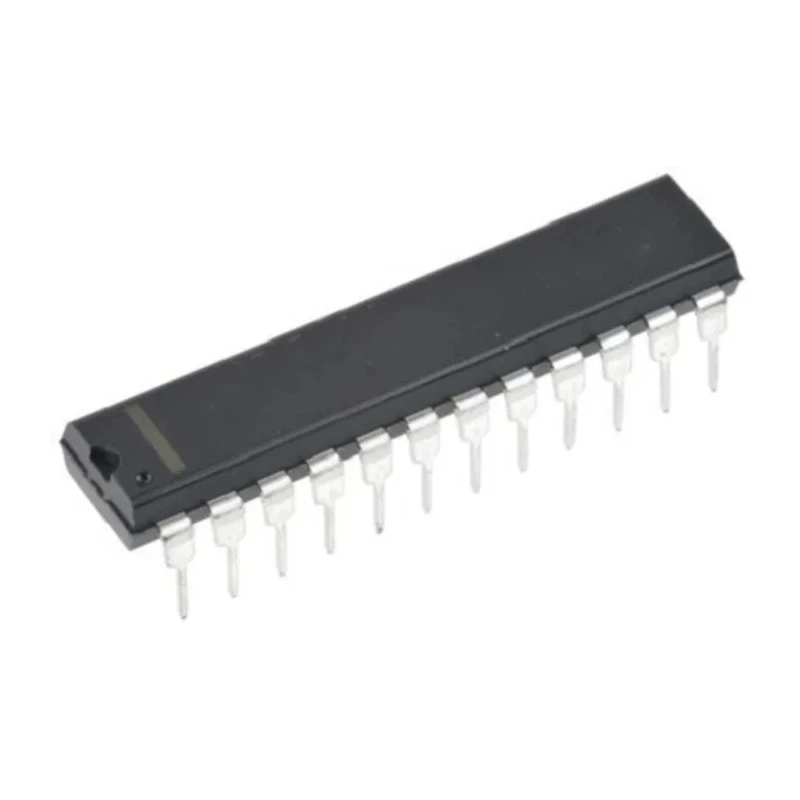

Renesas Electronics Programmable Timer IC, 6 Internal Timers, 24-Pin PDIP, Through Hole, CP82C54Z

Renesas Electronics presents the CP82C54Z Programmable Timer IC, an advanced timing solution engineered for demanding industrial and commercial electronic applications. This IC integrates six internal timers, optimizing event counting, elapsed time measurement, programmable one-shot operations, and other timing functions required across automation, instrumentation, and embedded systems.

The CP82C54Z is fabricated using an advanced 2 Micron CMOS process, resulting in lower power consumption while maintaining high performance. Its 24-pin PDIP package is suitable for through-hole mounting, facilitating straightforward assembly in PCBs and machinery. The IC is designed for fully TTL compatibility, simplifying integration into new and existing designs.

Three independent 16-bit counters and six programmable counter modes give engineers flexibility to configure timers for sequence control, frequency generation, or interval metering. The status read-back command and support for both binary and BCD counting further extend its utility in complex electronic circuits.

Operating from a single 5V power supply, with a maximum supply voltage of 18V and a minimum of 2V, the CP82C54Z supports a clock input frequency from 8MHz to 12MHz. It ensures reliable performance over a temperature range of 0°C to 70°C, suitable for laboratory, manufacturing, and industrial automation systems.

Six internal programmable timers. Advanced 2 Micron CMOS construction for enhanced efficiency. Event counter, elapsed time indicator, and programmable one-shot capabilities. Compatible with NMOS 8254, NMOS 8253, and fully TTL-compatible.

Wide supply voltage range and industrial temperature rating.

Applications include use in digital control systems, industrial automation, laboratory instrumentation, clock and timing circuits within manufacturing equipment, and any systems requiring precise interval control or frequency measurement.

The CP82C54Z is RoHS-compliant and supplied in tubes for insertion into automated production lines, supporting bulk procurement and efficient workflow integration. Explore more advanced timer ICs and programmable semiconductors from Renesas Electronics in the EnvMart Semiconductor category.
