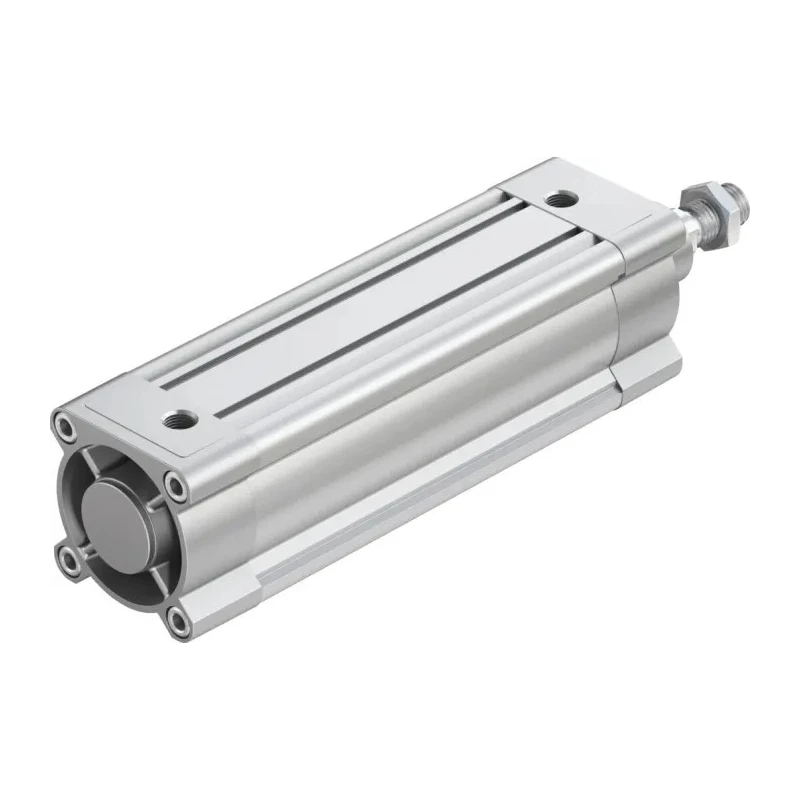

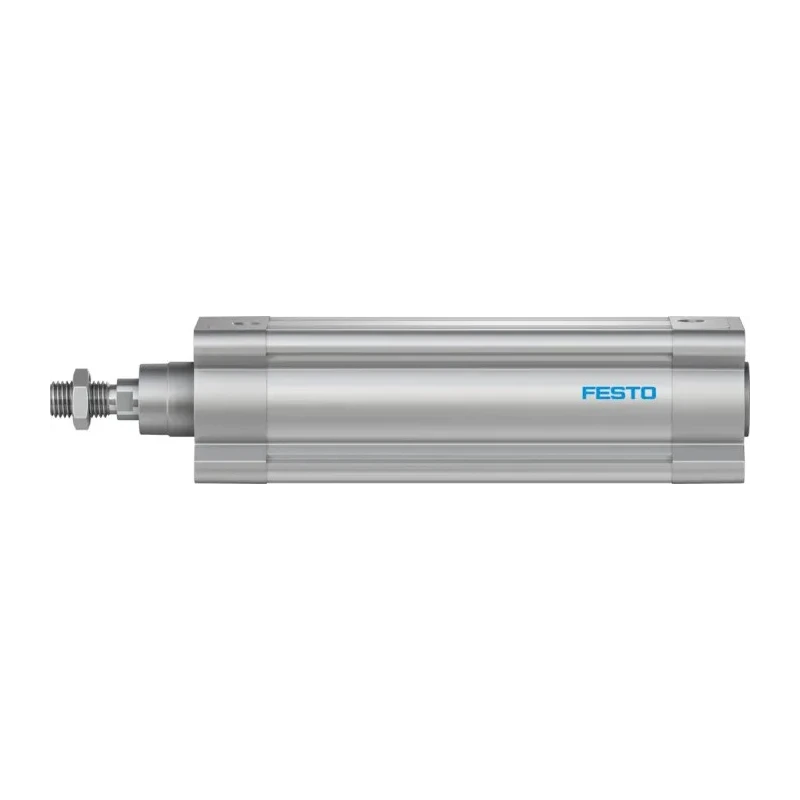

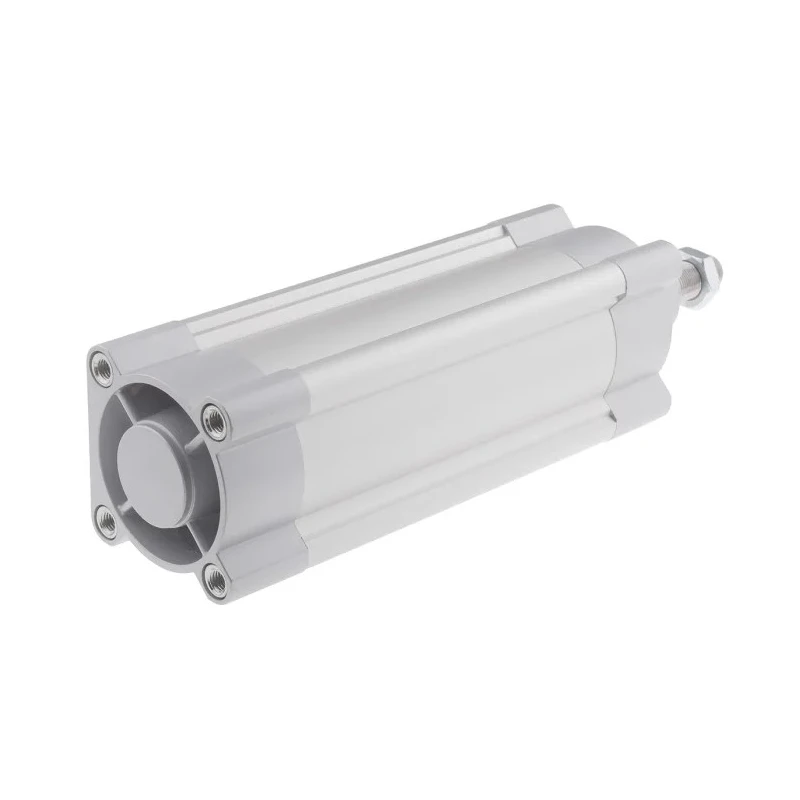

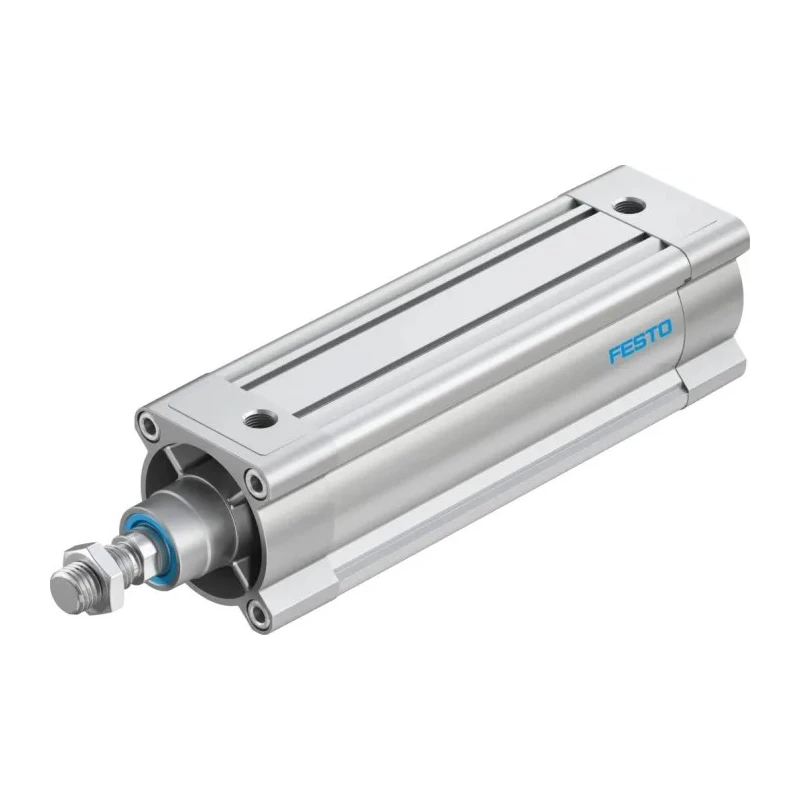

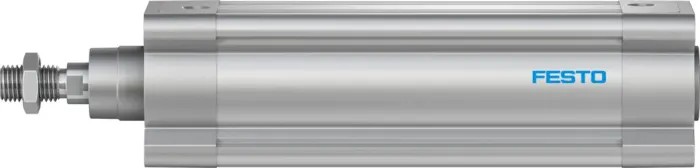

Festo Pneumatic Piston Rod Cylinder Double Acting, Aluminium Body, 80mm Bore, 200mm Stroke, DSBC-80-200-PPSA-N3

Festo DSBC-80-200-PPSA-N3 Pneumatic Piston Rod Cylinder delivers robust and precise linear actuation in industrial applications. Featuring a double acting configuration and single male piston rod, this cylinder is engineered for dynamic push-and-pull operations necessary in automation and machine actuation environments. The aluminium body construction reliably reduces mass and offers outstanding resistance to environmental corrosion, supporting longevity and lightweight integration inside complex machinery.

With an 80mm bore and 200mm stroke length, it is capable of high force output and extended linear travel, suitable for pick-and-place assemblies, press-feed control in packaging, and clamp actuation in fixturing stations. Operates up to a maximum pressure of 12 bar, ensuring performance across demanding industrial and manufacturing processes. Self-adjusting pneumatic PPS cushioning minimises the impact at both ends of the stroke, protecting machine integrity and reducing mechanical wear in repetitive cycles.

Double acting pneumatic cylinder designed for controlled linear motion. 80mm bore and 200mm stroke for high force and extended travel applications. Aluminium body construction ensures reduced mass and enhanced corrosion resistance.

Self-adjusting PPS cushioning minimises end-stroke impact and wear. Operates at up to 12 bar maximum pressure for demanding industrial tasks. Female threaded mount facilitates standardized installation in compact machine frames.

Single rod with 3/8 in G male thread for easy actuator mounting and integration. Rated for temperatures from -20°C to 80°C for diverse environments. Complies with ISO 15552 and RoHS standards for dimensional compatibility and material restrictions.

This cylinder supports a compact mounting geometry, with 93mm height and width, making it ideal for integration into tight machine frames using standard hardware. Typical use cases include assembly automation, packaging machinery, linear positioning with guided carriages, and industrial fixturing. The DSBC series is recognized for universal compatibility, thanks to adherence to ISO 15552 standards.

Industrial environments benefit from the DSBC-80-200-PPSA-N3's adaptability to extreme temperatures and its RoHS-compliant material selection, making it suitable for manufacturing, automation, laboratory, HVAC, and other technical applications. The unit's weight of 4.5 kg is balanced for portability and installation ease. Manufactured in Germany, it embodies Festo's commitment to precision and durability in pneumatic actuation components.
