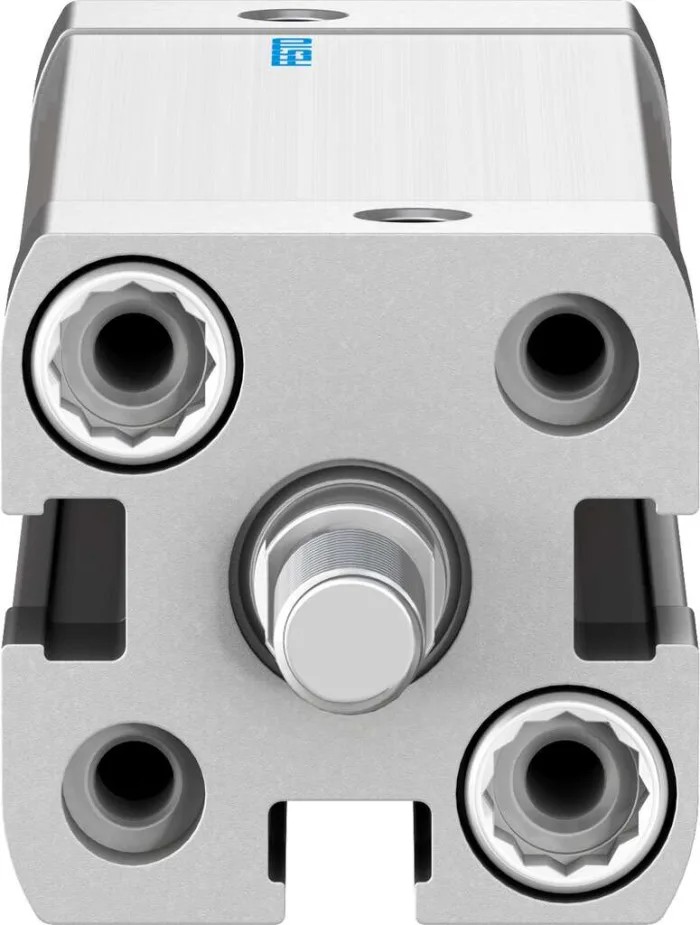

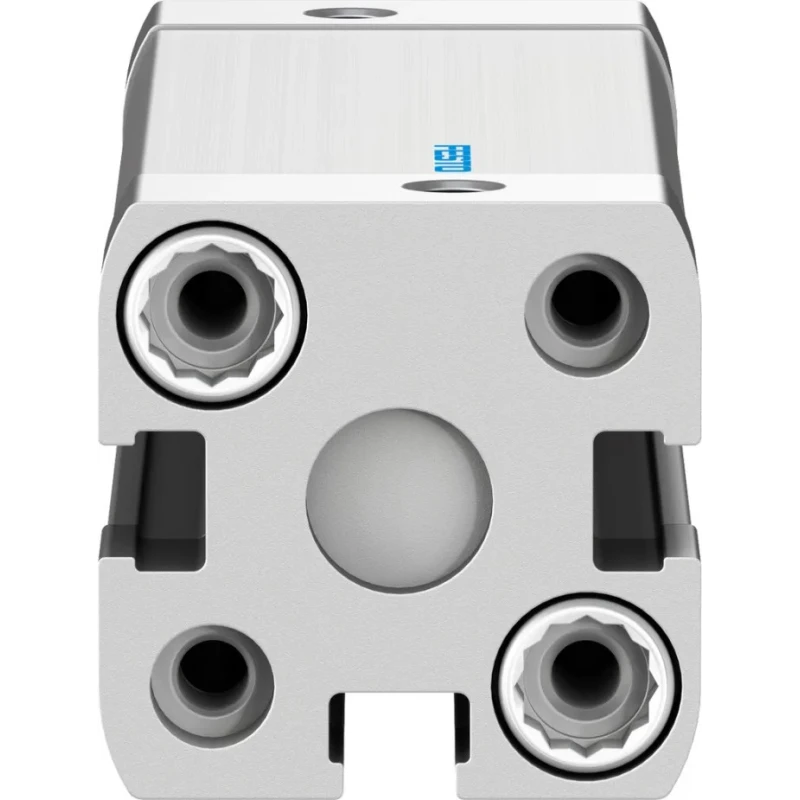

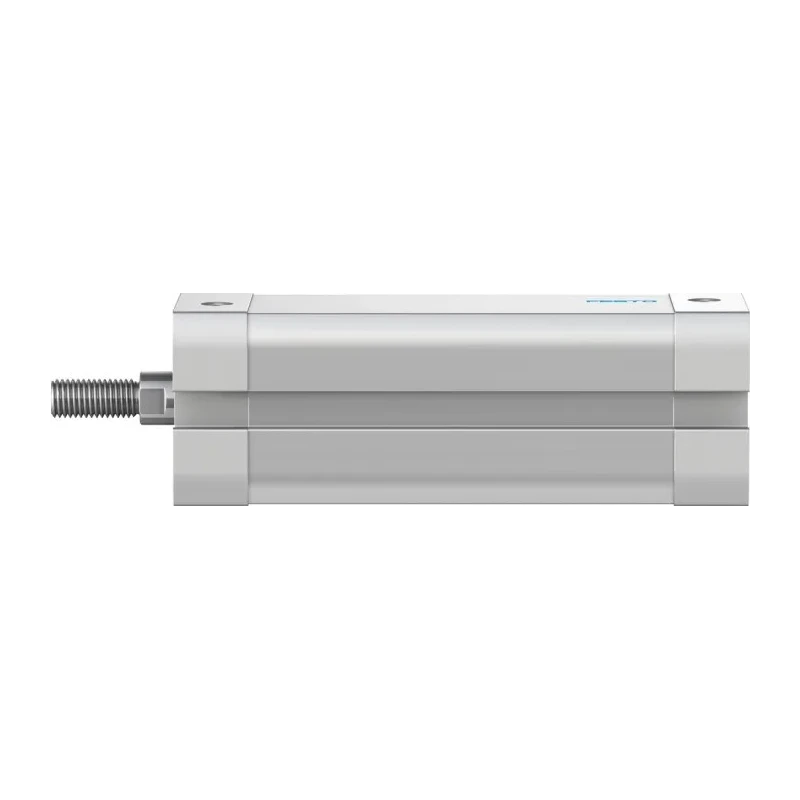

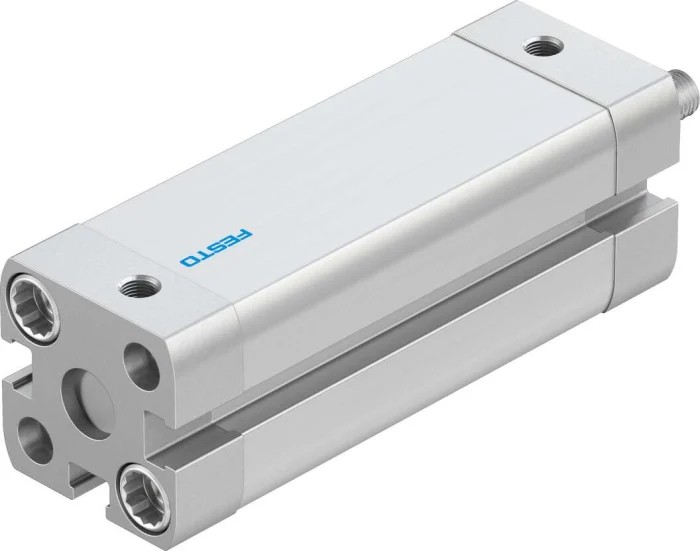

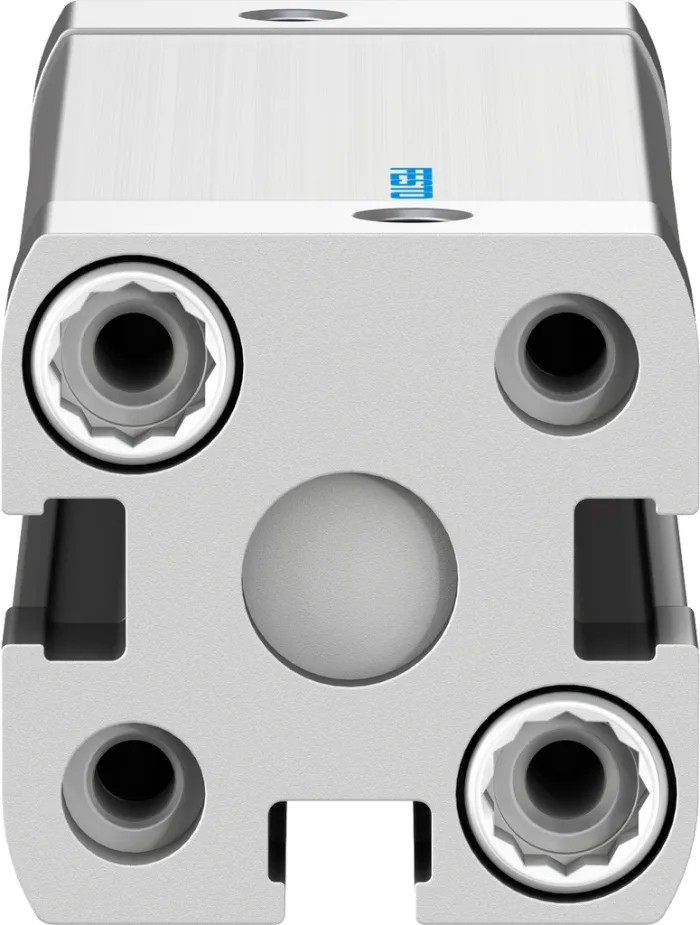

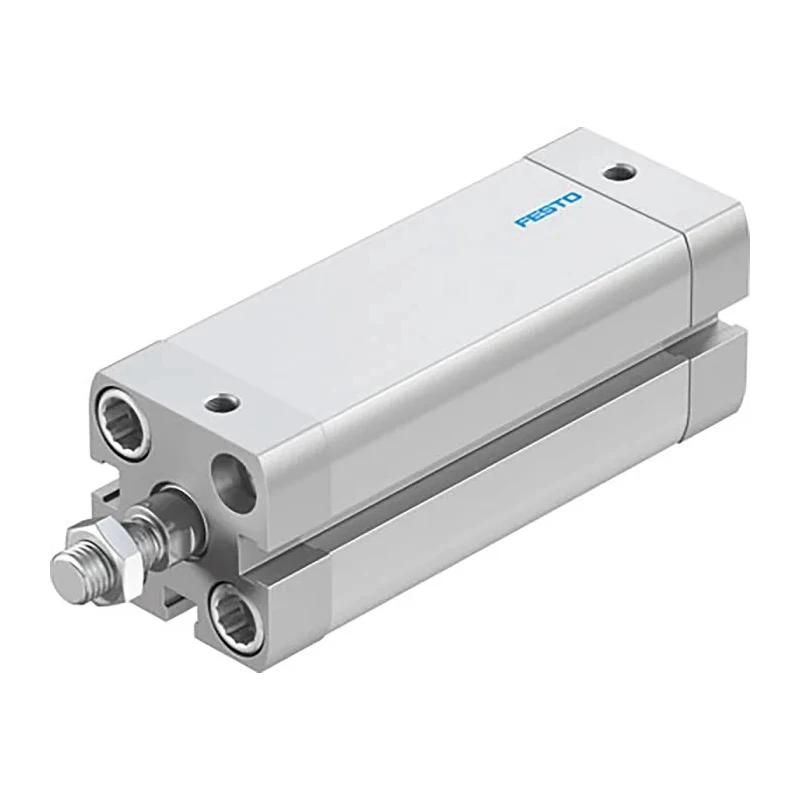

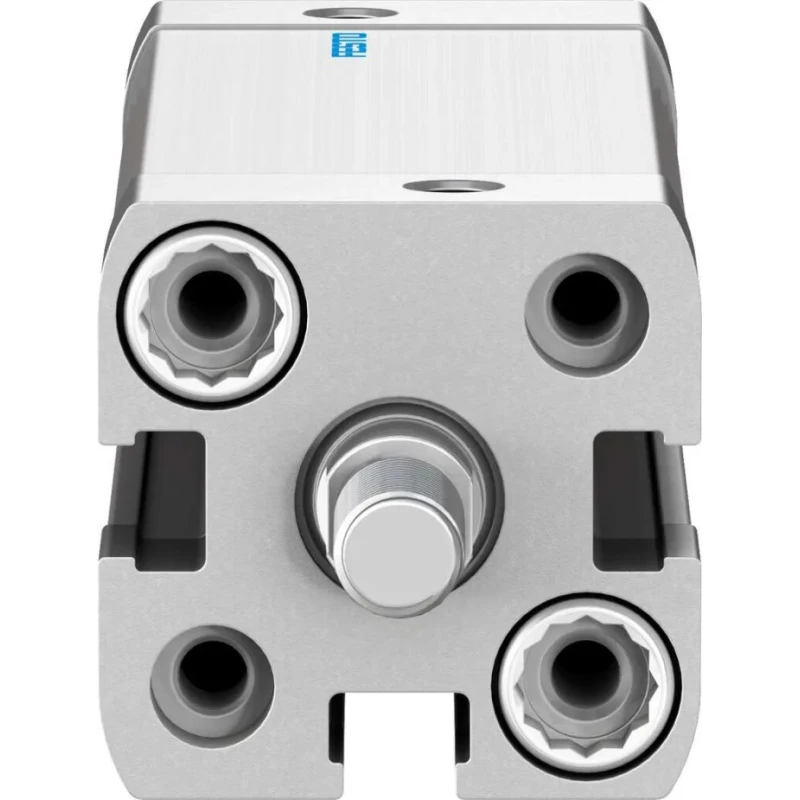

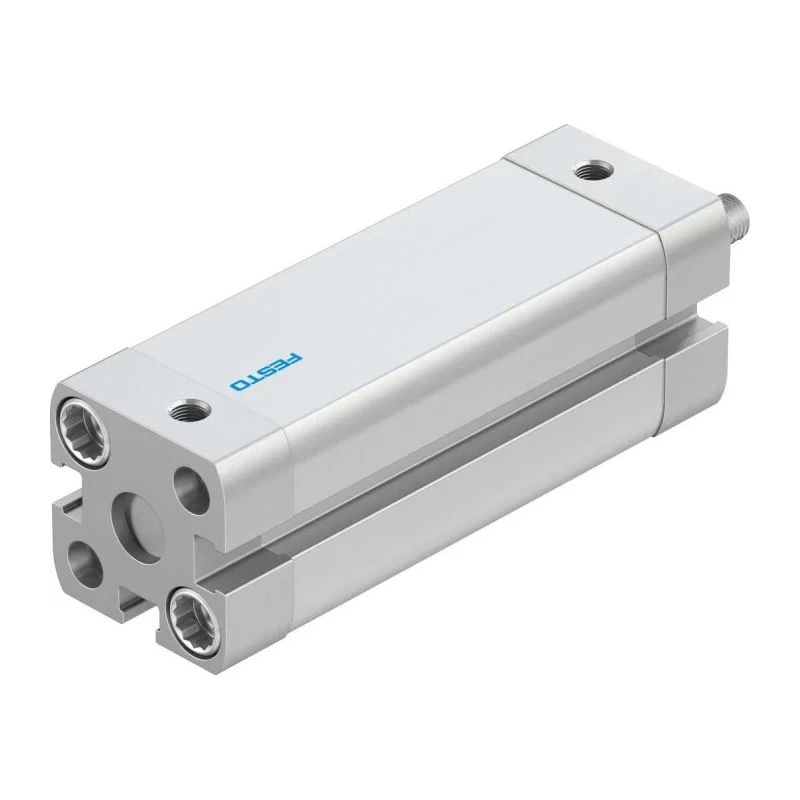

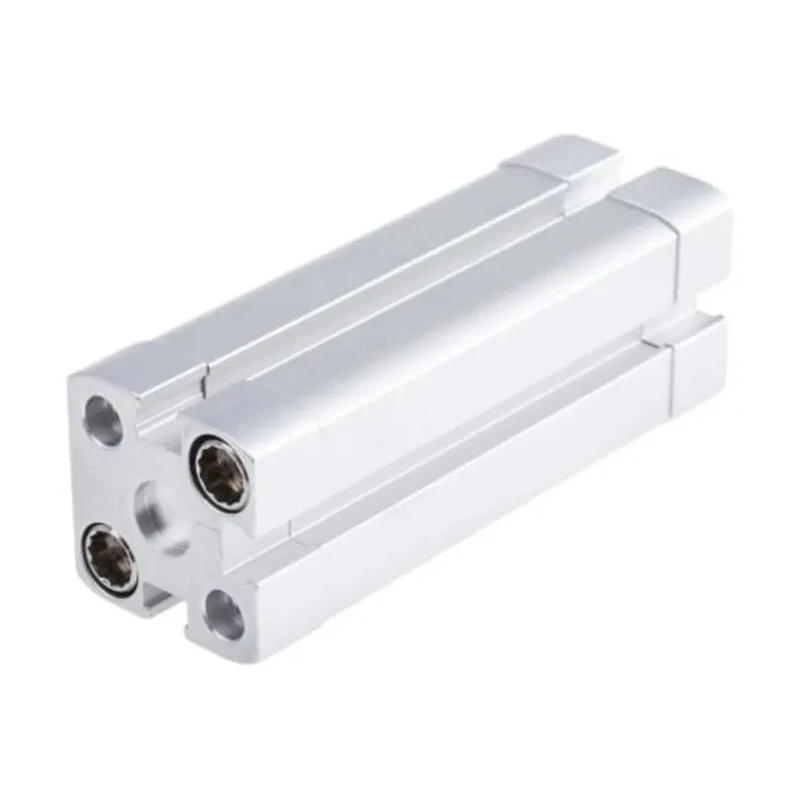

Festo Pneumatic Cylinder ADN Series 16mm Bore, 50 mm Stroke, Double Acting, Aluminium Body ADN-16-50-A-P-A

Festo ADN-16-50-A-P-A pneumatic cylinder is a double acting piston rod cylinder designed for industrial applications requiring precise linear motion control. Featuring a 16mm bore and a 50mm stroke length, this cylinder utilizes a durable aluminium body optimized for strength and corrosion resistance. The flexible cushioning rings at both ends absorb impact forces, reducing wear and extending service life. With TPE-U seal material, the cylinder provides robust sealing to prevent leakage and contamination ingress, ensuring high reliability.

This pneumatic cylinder operates efficiently over a broad pressure range from 0.6 to 10 bar, delivering an advance stroke force of 121N and a return stroke force of 90N. The single rod type piston with a male M5 thread ensures secure and precise connection to other components. Its compact dimensions including 89.7mm overall length, and 29mm width and height allow easy installation in confined equipment spaces with through-hole mounting providing versatile fitting options.

The cylinder withstands minimum temperatures of -20°C and maximum temperatures up to 80°C, suitable for harsh industrial environments such as process and packaging industries, marine engineering, and oil and gas plants. Its lubrication-free operation capability adds to its flexibility in application. This model meets ISO 21287 and RoHS standards, giving assurance of quality and compliance.

Double acting function for controlled piston rod movement in both directions. Corrosion-resistant aluminium barrel body for durable service. Flexible cushioning minimizes impact damage and wear. TPE-U seals ensure leak-free performance under varied conditions.

Wide operating pressure range between 0.6 to 10 bar supports diverse applications. Provides substantial stroke forces for effective load handling. Through hole mount for straightforward assembly flexibility. Compatible with standard M5 male piston rod thread size.

Operates reliably in temperatures from -20°C to 80°C. Conforms to ISO 21287 and RoHS for quality and environmental compliance.

This Pneumatic Cylinder from Festo is ideal for automation and mechanized systems in industrial, marine, and oil and gas sectors. For additional pneumatic tool and actuator solutions, explore the extensive EnvMart catalogue.
