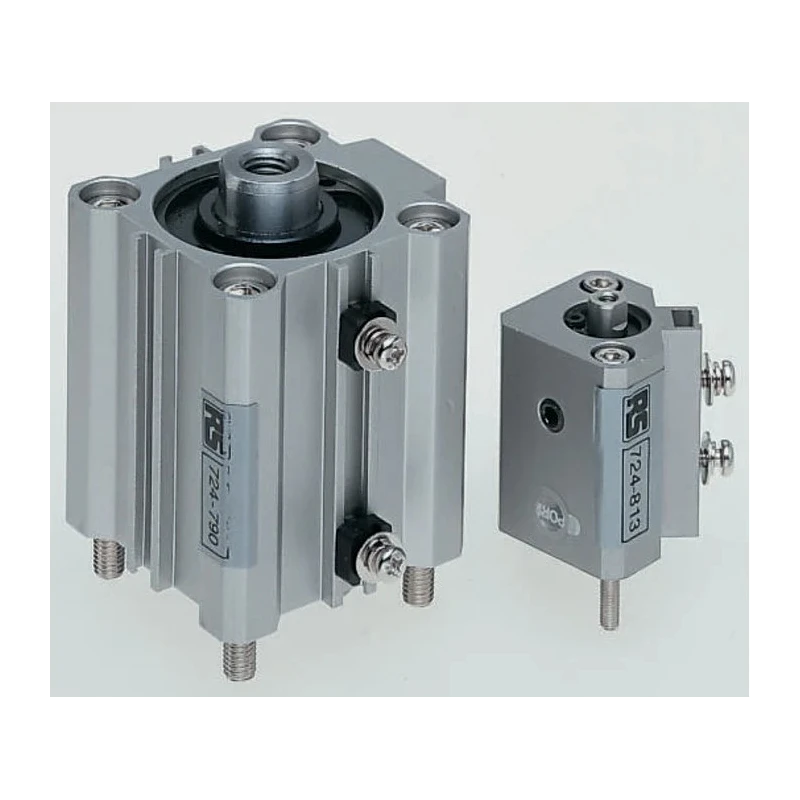

SMC Pneumatic Compact Cylinder 20mm Bore, 5mm Stroke, Single Acting, Aluminium Alloy Body CQ2B20-5T
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 36mm |
| Length | 34mm |
| Model | CQ2B20-5T |
| Gross Weight | 67g |
| Width | 36mm |
| Mount Type | Through Hole |
| Series | CQ2 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 5mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Single Acting |
| Maximum Piston Speed | 500 mm/s |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
Key Features
- Compact pneumatic cylinder with 20mm bore and 5mm stroke for precise motion control.
- Durable aluminium alloy body ensures reliability and reduced weight.
- Single acting action type provides efficient performance in automation setups.
- Through hole mount design allows versatile installation in confined areas.
- Operating pressure up to 1 MPa supports demanding pneumatic tasks.
- Temperature range from -10°C to 70°C enables use in diverse environments.
- Female metric piston rod offers compatibility with standard fittings.
- Maintenance-free operation due to nitrile seals and lubrication-free design.
Product Description
The SMC CQ2B20-5T is a pneumatic compact cylinder engineered for space- and weight-saving applications in industrial automation. Featuring a 20mm bore and a 5mm stroke, this single acting cylinder is part of the CQ2 series, renowned for its compact build and high reliability.
Constructed from robust aluminium alloy, the CQ2B20-5T provides longevity and corrosion resistance, reducing maintenance in harsh manufacturing environments. Its through hole mount type facilitates easy installation in tight spaces, making it ideal for assembly lines, machine tools, robotics, and packaging systems where footprint is critical.
Operating at maximum pressures up to 1 MPa and within a temperature range of -10°C to 70°C, this cylinder delivers consistent performance across a wide spectrum of conditions. It utilizes a single action mechanism (spring return) for efficient compressed air actuation and quick cycle times. The internal rod is female threaded to the metric standard for universal compatibility with pneumatic fittings and accessories.
Designed for minimal maintenance, the CQ2B20-5T employs nitrile seals that do not require additional lubrication, allowing for smooth and clean operation. The cylinder can be used with solid state switches for automation and provides both tapered and parallel port options for flexible installation.
Industrially, this pneumatic cylinder is suited for manufacturing, process automation, handling equipment, material transfer, and specialized laboratory devices. Its compact form factor and high-precision design make it a preferred choice for engineers requiring effective motion in limited space.
Browse other SMC Pneumatic Cylinders and explore the full range of hydraulic and pneumatic tools at EnvMart for tailored industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1 MPa.
The dimensions of this unit are 34mm in length, 36mm in height, and 36mm in width.
The stroke length of this pneumatic cylinder is 5mm.
It utilizes a single acting action type, which means it operates with a spring return mechanism.
The bore diameter of this model is 20mm.
This cylinder operates within a temperature range of -10°C to 70°C.
The maximum piston speed is 500 mm/s.
The body of this pneumatic cylinder is constructed from aluminium alloy.
It features a through hole mount design, allowing for versatile installation in confined areas.
This model has a female metric piston rod, compatible with standard fittings.
This pneumatic cylinder is suited for manufacturing, process automation, handling equipment, and material transfer.
No, this cylinder features nitrile seals and a lubrication-free design, allowing for maintenance-free operation.
