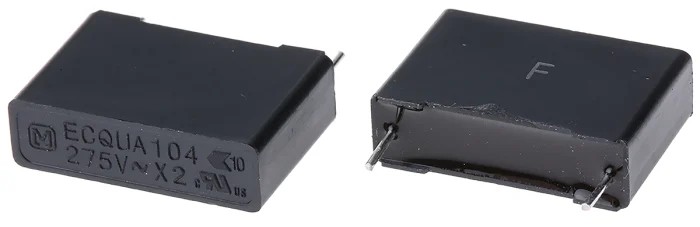

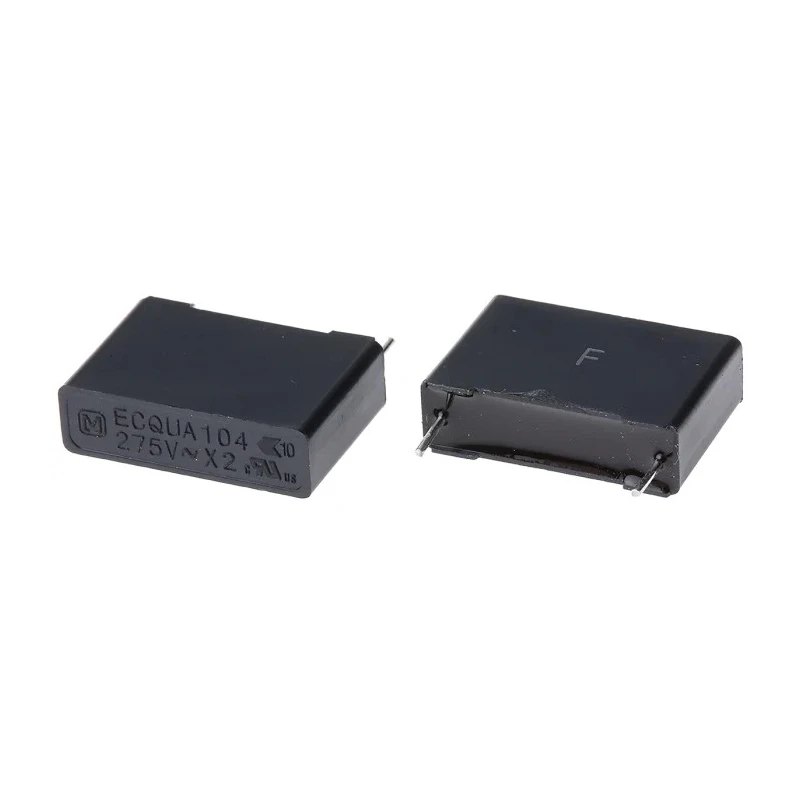

Panasonic ECQUA Film Capacitor X2 100 nF 275V AC ±20% Through Hole ECQUAAF104MA

Panasonic ECQUAAF104MA Film Capacitor X2 is a high-quality electronic component designed for interference suppression with a capacitance of 100 nF and a rated AC voltage of 275V. This through hole film capacitor features a ±20% tolerance and flame retardant plastic casing coupled with a non-combustible resin for enhanced safety in industrial and commercial electronics applications.

Its 4 mm cropped leads and 15 mm lead pitch facilitate secure through hole mounting on printed circuit boards. The capacitor is suited to operate in harsh temperature environments from -40°C up to 110°C, meeting stringent automotive standard AEC-Q200 and certifications including UL 60384-14, EN 60384-14, and CSA E60384-14, ensuring reliable performance and compliance.

The compact size of 17.5 mm length, 12 mm height, and 5 mm width makes it ideal for space-constrained electronic assemblies. With a dissipation factor of just 0.1%, it ensures minimal energy losses during operation. This capacitor is particularly applicable to interference suppression coils, providing effective noise reduction in power supplies and other electrical devices. Caution is advised for use directly across mains power to prevent exposure to electric shock upon failure.

Flame retardant plastic case and non-combustible resin construction. Suitable for interference suppression coils in electronic circuits. Leads cropped to 4 mm length with 15 mm pitch for through hole mounting. Operating temperature range from -40°C to 110°C.

Complies with automotive standard AEC-Q200 and major international safety approvals. Compact dimensions of 17.5 x 5 x 12 mm. Low dissipation factor of 0.1% for energy efficiency. Intended for connection across mains supply with user safety precautions.

This Panasonic ECQUA series Film Capacitor is widely used in industrial, commercial, automotive, and manufacturing electronic equipment for interference suppression and noise reduction. EnvMart offers this dependable ECQUAAF104MA capacitor suited for PCB assembly and electronic component replacement across various power and signal circuitry applications.
