| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C10-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 4.5mV/K |
Nexperia BZX884S-C10-QYL is a general purpose Zener diode designed for voltage regulation in electronic circuits. It features a nominal Zener voltage of 10 V with ±2 % tolerance and maximum power dissipation of 365 mW, packaged in a compact DFN1006BD-2 surface mount device. The diode is suitable for automotive and industrial electronic applications due to its qualification to the AEC-Q101 automotive standard and compliance with RoHS directives.
This diode has a maximum Zener impedance of 150 Ω and a low reverse leakage current of 200 nA, ensuring reliable performance within the specified operating temperature range from -55°C to 150°C. Its test current rating of 5 mA makes it suitable for protecting sensitive circuits from voltage surges.

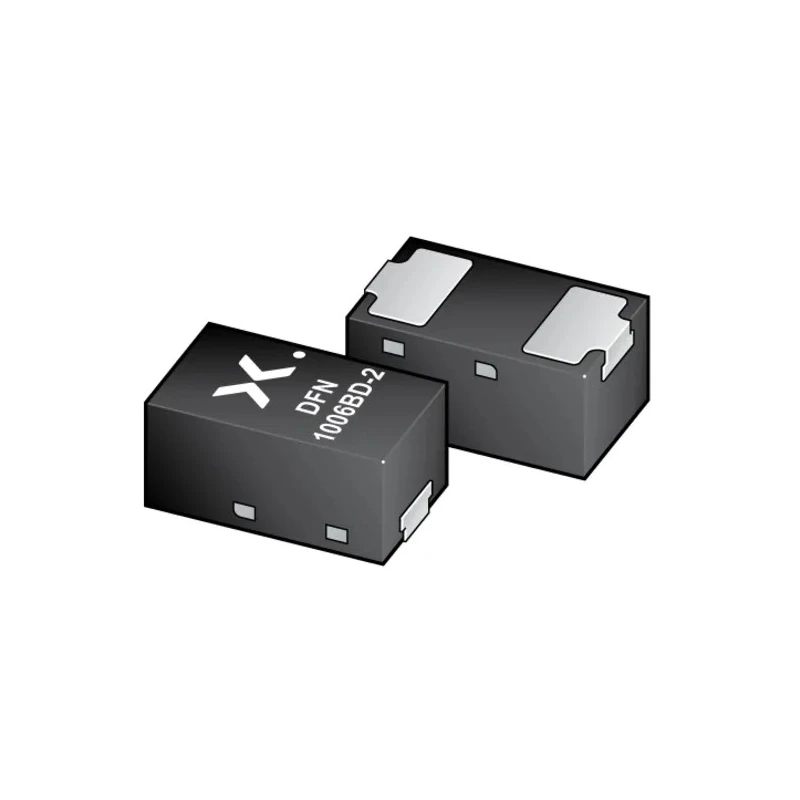

The ultra-small SOD882BD (DFN1006BD-2) package features side-wettable flanks to facilitate reliable PCB mounting. The device series ranges nominal voltages from approximately 2.4 V up to 75 V (E24 series), providing flexible design options.
Typical applications include voltage stabilization, waveform clipping, and surge suppression in automotive, industrial, and consumer electronics. Accurate voltage regulation with ±2 % tolerance. Compact surface mount DFN1006BD-2 package with side-wettable flanks.
Rated power dissipation of 365 mW supporting small form factor designs. AEC-Q101 qualified ensuring automotive-grade reliability. Wide operating temperature range enables use in harsh environments. RoHS compliant and environmentally friendly.
Stable performance with 4.5 mV/K typical temperature coefficient.
