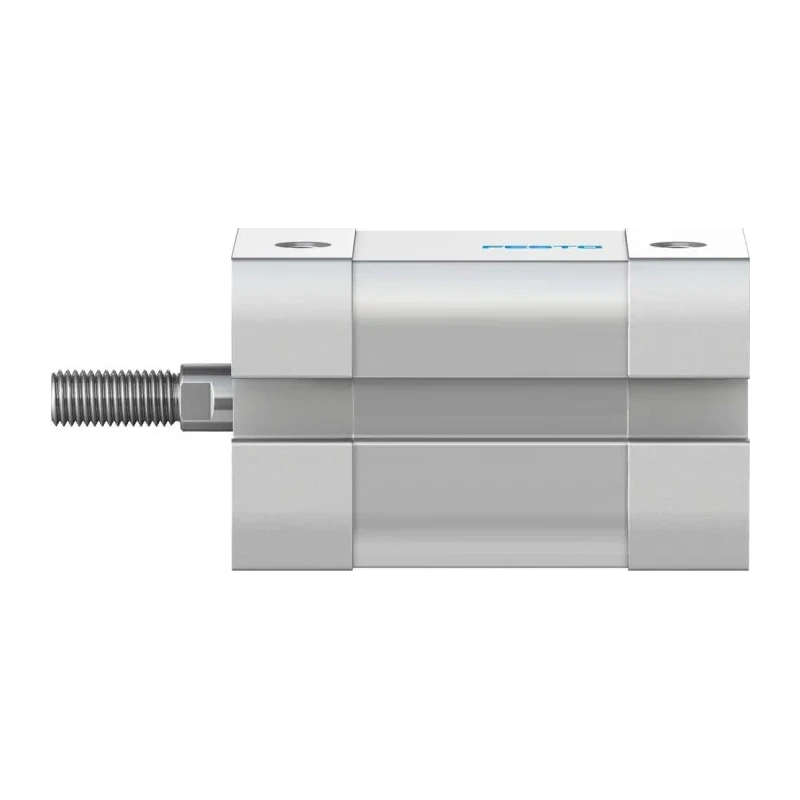

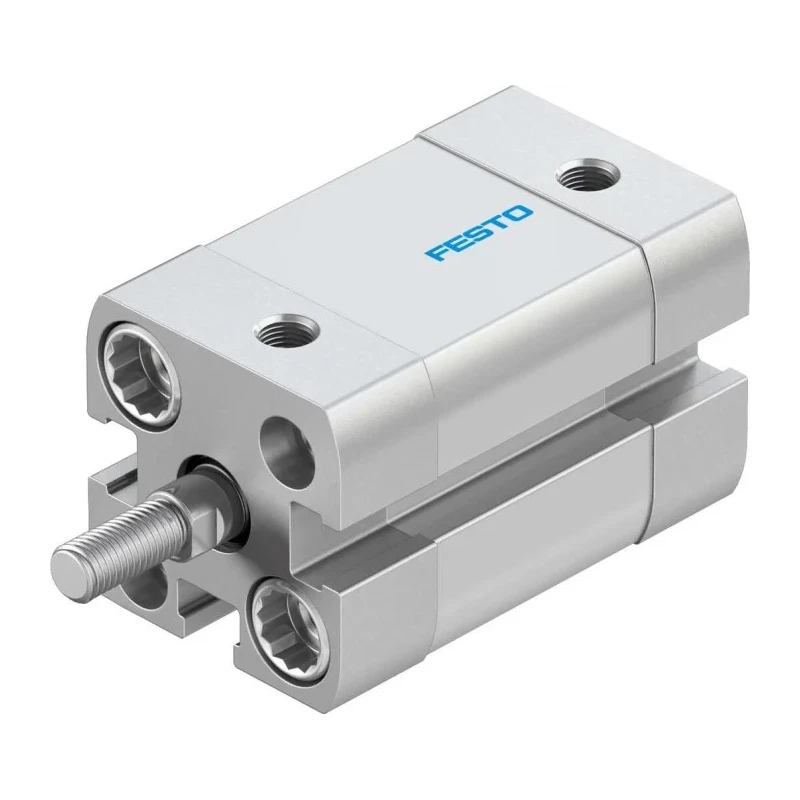

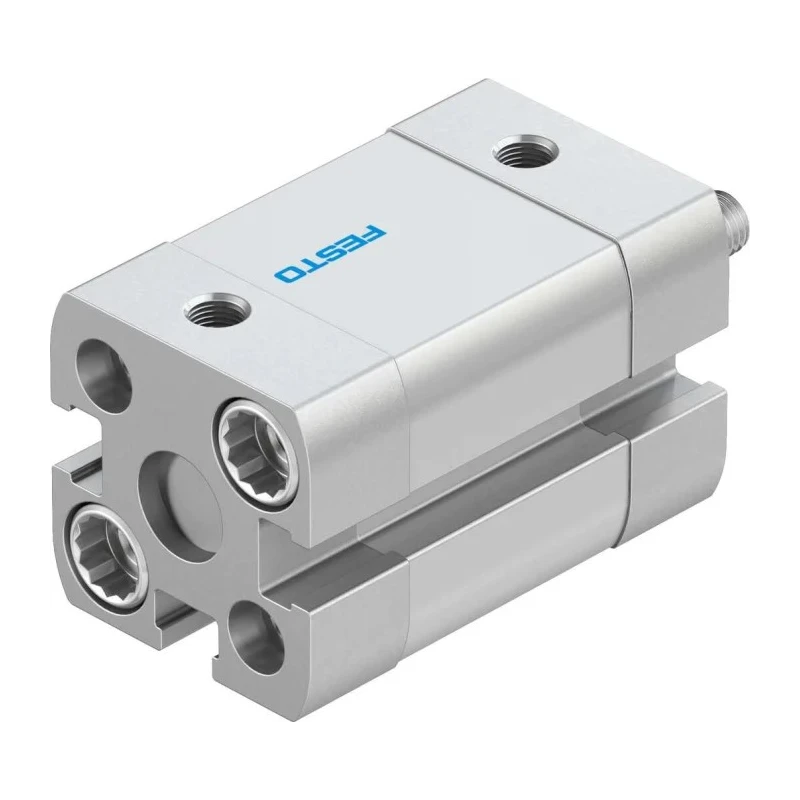

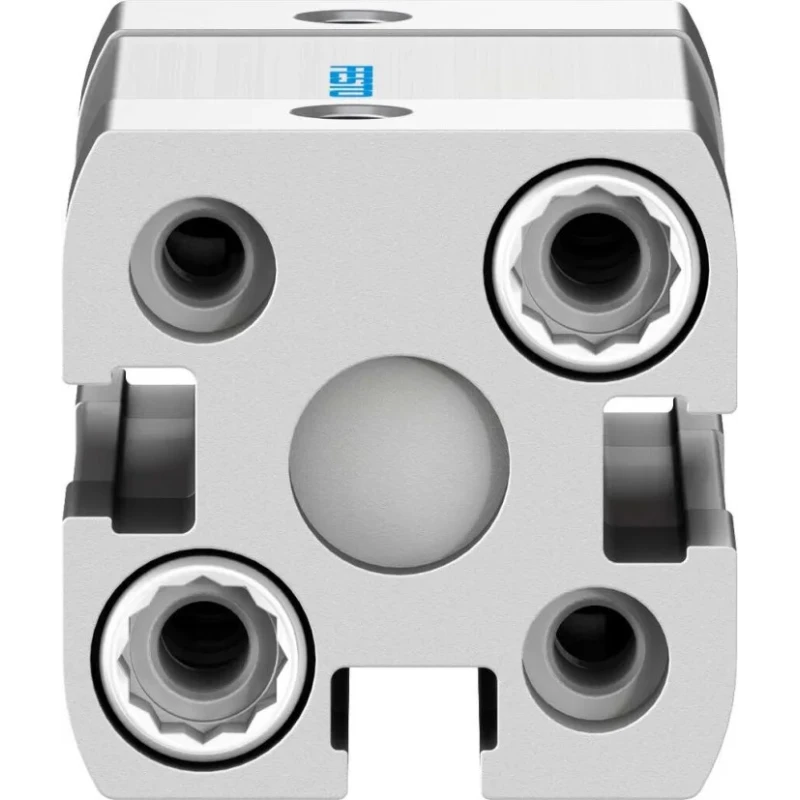

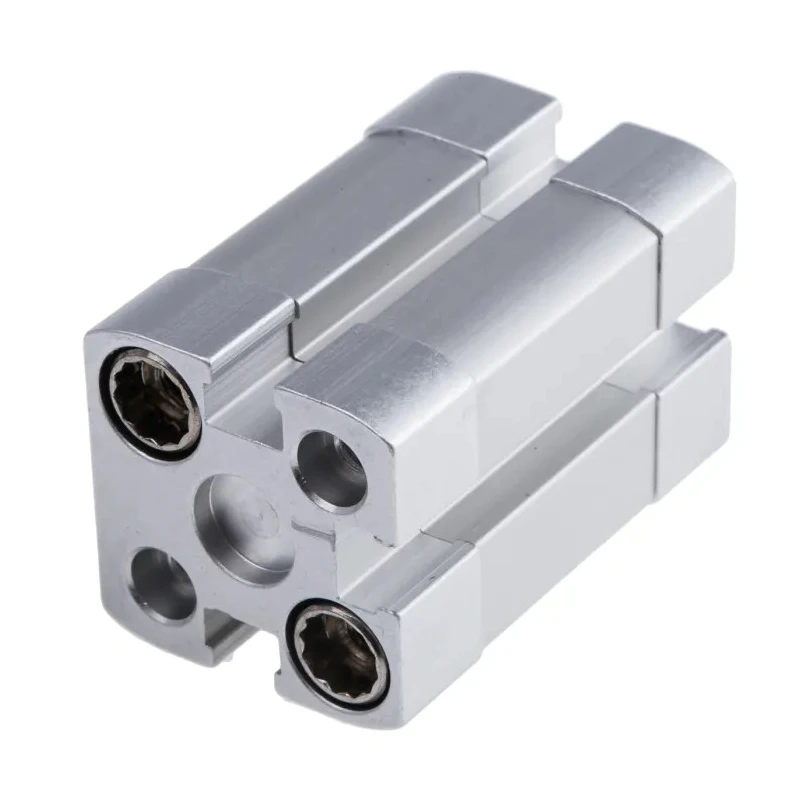

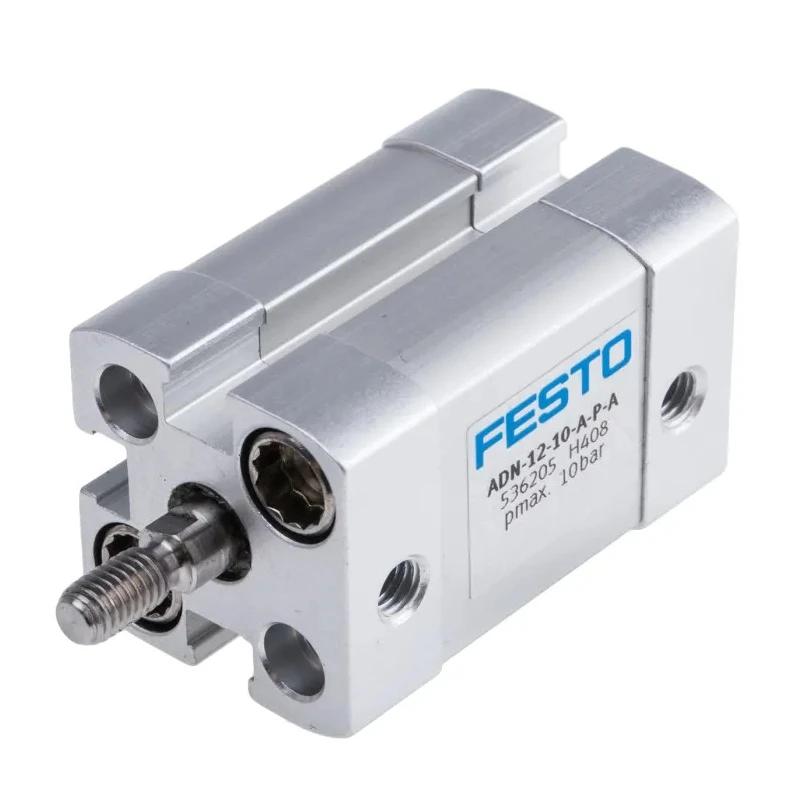

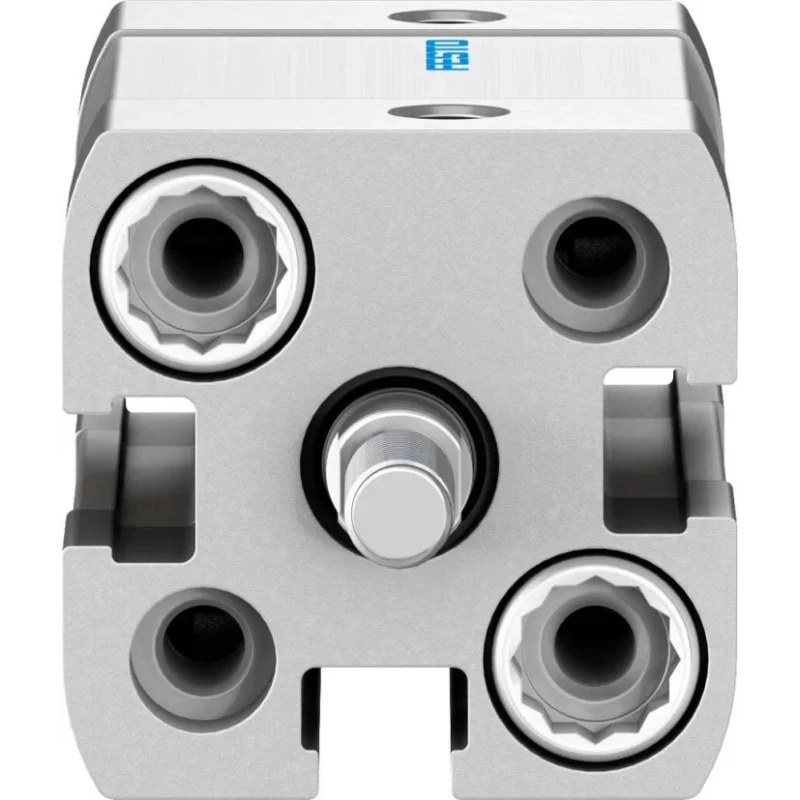

Festo Pneumatic Cylinder 12 mm Bore, 10 mm Stroke, Double Acting, Aluminium Body, ADN-12-10-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 27.5mm |
| Length | 49.2mm |
| Model | ADN-12-10-A-P-A |
| Gross Weight | 89g |
| Width | 27.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 10mm |
| Bore Diameter | 12mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
Key Features
- Compact pneumatic cylinder with 12 mm bore and 10 mm stroke for space-saving installation.
- Double acting design enabling precise control of both extension and retraction.
- Aluminium body provides corrosion resistance and durability in demanding environments.
- Maximum operating pressure up to 10 bar, suitable for industrial automation.
- M5 threaded male piston rod for easy integration with standard fittings.
- Flexible polymer end cushioning reduces noise and vibration while extending service life.
- Operating temperature range from -20°C to 80°C for versatile deployment.
- Designed for automated factory processes, laboratory installations, and automotive manufacturing.
Product Description
Festo ADN-12-10-A-P-A Pneumatic Cylinder is a compact and high-performance actuator designed for a wide range of industrial and automation applications. Featuring a 12 mm bore and 10 mm stroke, this double acting cylinder delivers reliable linear motion in space-constrained environments. The aluminium body ensures corrosion resistance and robust operation, making it ideal for demanding use cases.
The double acting configuration allows compressed air to drive both thrust and retraction, providing accurate and repeatable positioning for clamping, stopping, and transferring objects. The M5 male threaded piston rod further simplifies integration with compatible fittings and accessories. Festo's advanced end cushioning using TPE-U (PUR) seals helps minimize operational noise and vibration, enhancing productivity and extending service life.
Engineered to comply with ISO 21287 standards, the cylinder supports mounting of proximity sensors for contactless position detection. Flexible installation is enabled through the through-hole mount and additional optional accessories for horizontal or vertical orientation, swiveling, and foot support. Its wide operating temperature range from -20°C to 80°C ensures versatility in environments such as manufacturing facilities, laboratories, and automotive workshops.
With a maximum operating pressure of 10 bar and a lightweight gross weight of just 89 grams, the ADN-12-10-A-P-A offers optimal performance while conserving energy. Applications include automated factory processes, aerospace systems, medical equipment assembly, laboratory operations, and automotive manufacturing lines.
In summary, the Festo ADN-12-10-A-P-A Pneumatic Cylinder provides compact, durable, and efficient actuation for industrial, laboratory, and commercial settings, offering long-term reliability with minimal maintenance. Explore more choices in the Pneumatic Cylinder category or browse Festo's extensive lineup for advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 12 mm.
This pneumatic cylinder has a stroke length of 10 mm.
The maximum operating pressure for this unit is 10 bar.
It operates within a temperature range of -20°C to 80°C.
This model features a double acting action type, allowing for controlled extension and retraction.
The body of the ADN-12-10-A-P-A is made from aluminium, providing corrosion resistance.
It has a male threaded piston rod with an M5 thread size for easy integration with standard fittings.
The dimensions are 49.2 mm in length, 27.5 mm in height, and 27.5 mm in width.
It uses cushioning rings for end cushioning, which helps reduce noise and vibration.
This model complies with ISO 21287 standards and is RoHS certified.
It supports through-hole mounting, allowing for flexible installation options.
It is suitable for applications in automated factory processes, laboratories, and automotive manufacturing.
