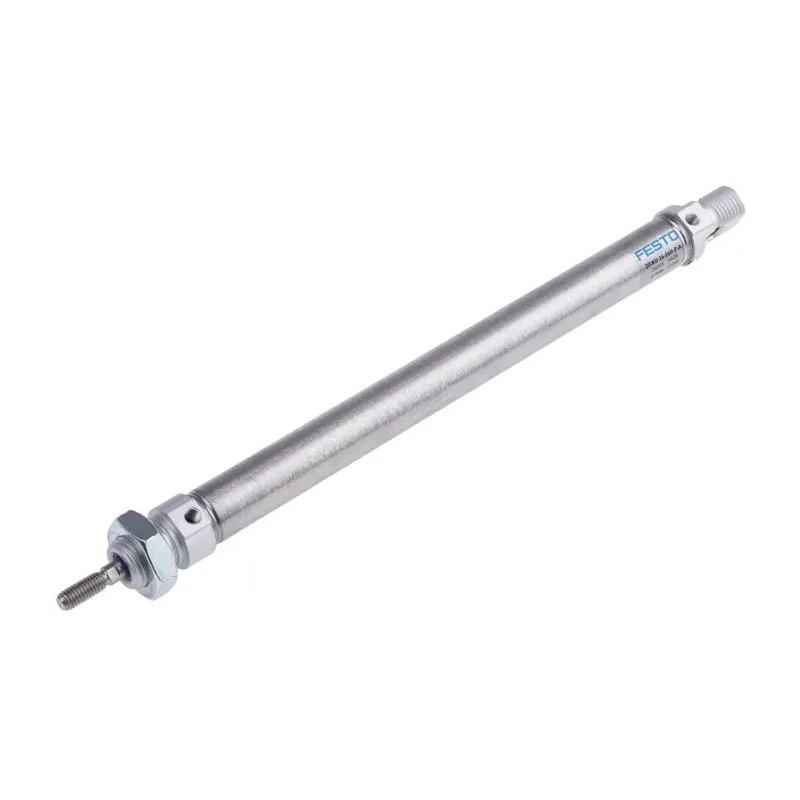

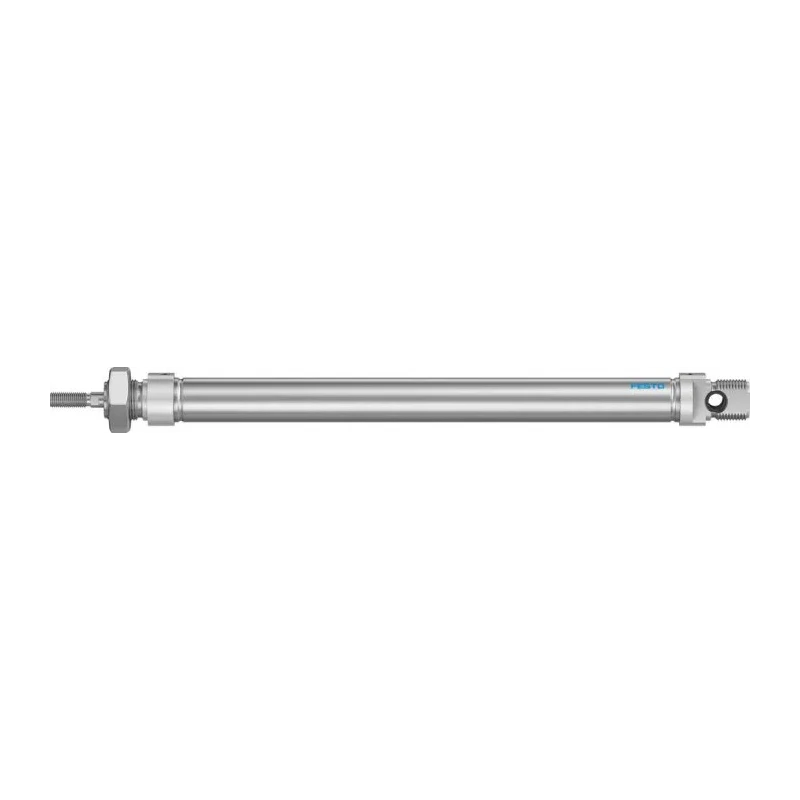

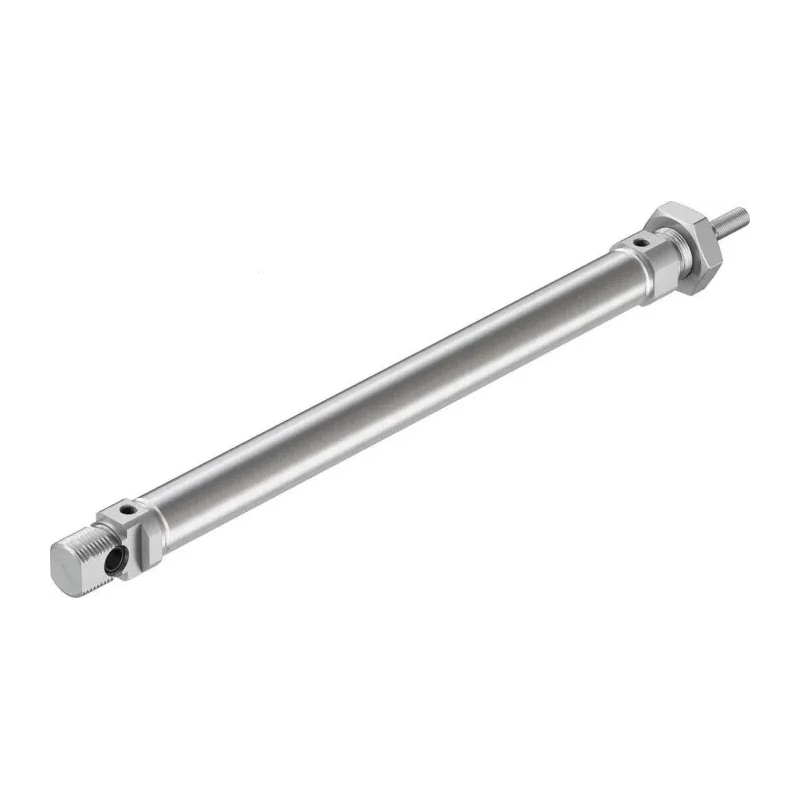

Festo Pneumatic Cylinder 16 mm Bore 160 mm Stroke Double Acting Direct Mount Elastomer Cushioning DSNU-16-160-P-A

Festo DSNU-16-160-P-A pneumatic cylinder is a precision-engineered pneumatic piston rod cylinder with a 16 mm bore and 160 mm stroke length, designed for industrial applications requiring reliable and accurate double acting linear motion. It operates within a broad pressure range of 1 to 10 bar and withstands operating temperatures from -20°C up to 80°C, making it adaptable to various challenging environments.

This cylinder features a robust wrought aluminium alloy cover that provides excellent resistance to corrosion and mechanical impact, ensuring long-lasting performance. Its stainless steel piston rod is male-threaded with metric threading, offering excellent durability and straightforward mounting options. The elastomer cushioning plates integrated at both ends of the cylinder absorb energy on impact, reducing noise and wear, thus extending service life.

Designed according to ISO 6432 standard with direct mount type and elastomer cushioning, the DSNU series cylinder is compatible with standard pneumatic parts, including the M5 pneumatic connection. Its double acting pneumatic operation allows compressed air to drive the piston rod forward and backward efficiently, enabling precise control over actuator movement.

The cylinder holds certifications including ATEX II 2GD, CE marking for EU Explosion Protection Directive compliance, and Germanischer Lloyd classification, confirming its suitability for use in hazardous and regulated environments.

Common applications span across industries such as transportation, marine engineering, and elevator systems, where reliable, smooth, and controlled actuation of mechanical loads is critical. The unit allows installation in any orientation to fit diverse machine designs and setups.

Durable wrought aluminium alloy housing offers corrosion and impact resistance. Double acting pneumatic cylinder ensures accurate bidirectional piston movement. Elastomer-origin cushioning plates minimize operational noise and mechanical wear.

Wide operating temperature and pressure ranges accommodate varied industrial environments. M5 pneumatic connection enables compatibility with standard pneumatic fittings. Stainless steel piston rod with male metric thread supports flexible mounting.

Standardized ISO 6432 dimensions enable interchangeable configurations. Certified to ATEX, CE Explosion Protection, and Germanischer Lloyd standards. Applications include transportation, lifts, marine engineering, and more.
