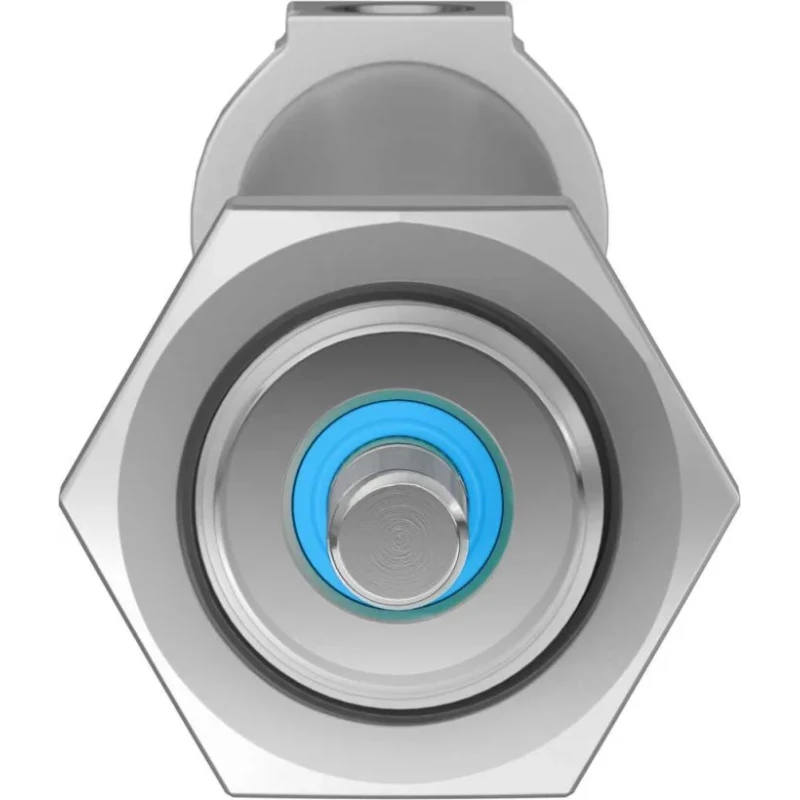

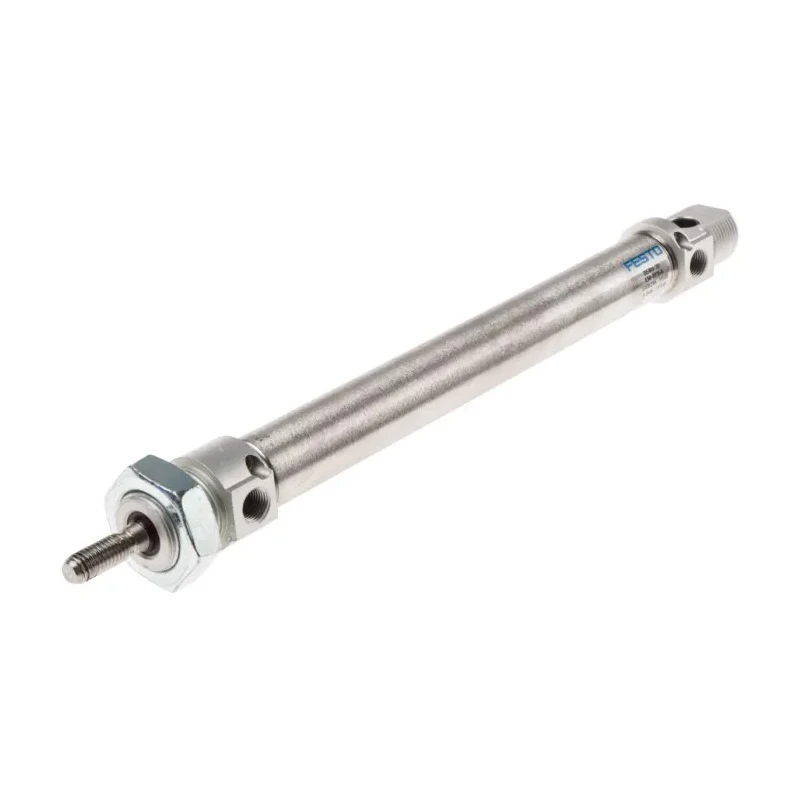

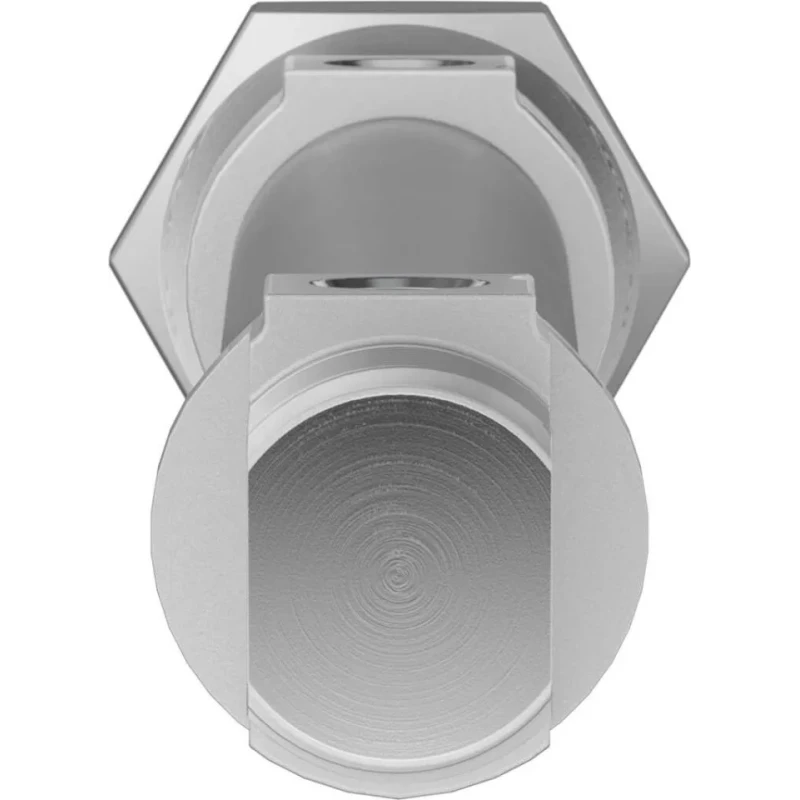

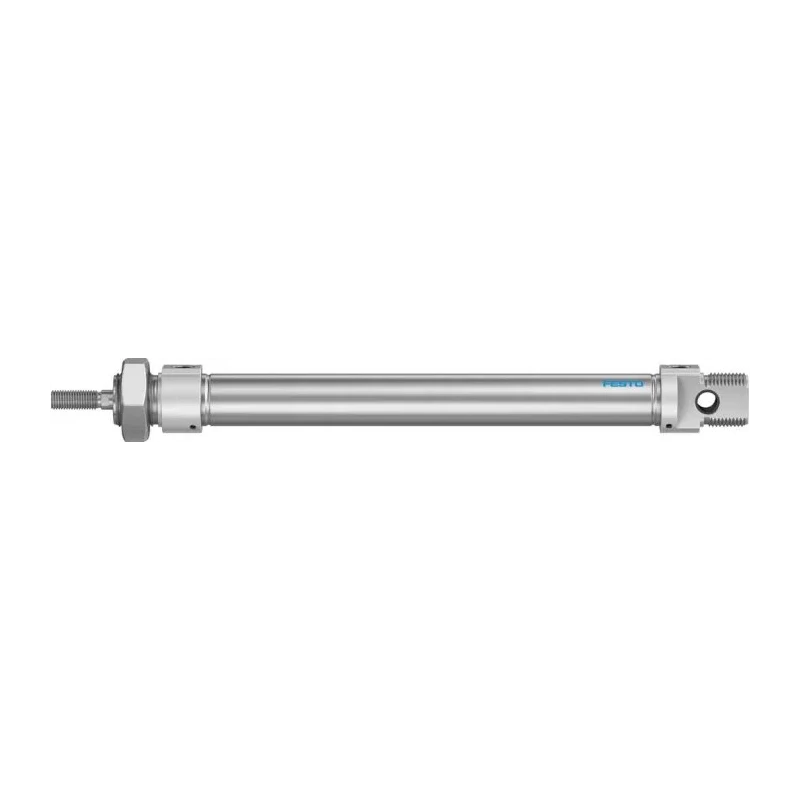

Festo Pneumatic Cylinder, 500mm Stroke, 20mm Bore, Air Cushion, Double Acting, DSNU-20-150-PPV-A

The Festo DSNU-20-150-PPV-A is a high-performance pneumatic cylinder designed for precision linear motion in industrial automation and process control. Featuring a 500 mm stroke and 20 mm piston bore, it is engineered for robust applications where reliability and long service life are essential. This double-acting pneumatic actuator includes a stainless steel piston rod and an aluminum barrel, ensuring non-corrosive operation even in challenging environments.

An important advantage of the DSNU-20-150-PPV-A is its adjustable pneumatic cushioning at both ends of the actuator barrel. This feature enables the cylinder to absorb energy efficiently at the end positions, reducing shock loads and supporting rapid cycle rates with smooth deceleration. This makes the cylinder ideal for high-speed, repetitive industrial applications such as material handling, assembling, and packaging systems.

The cylinder is compliant with ISO 6432 standards, providing standardized metric mounting dimensions that ensure easy interchangeability and upgrade within existing automated setups. Direct mounting allows for versatile positioning in any required orientation, and an extensive range of accessories offers further flexibility for integration with different actuator systems, including swivel brackets and foot mounts.

Constructed with a high-alloy steel piston rod and a robust cylinder barrel, the DSNU-20-150-PPV-A is designed for medium to heavy-duty applications. The double-acting operation facilitates controlled extension and retraction of the piston rod, which is equipped with a metric M8 threaded connection to support both male and female interfaces. These features ensure compatibility with a broad array of industry setups, from assembly lines to pneumatic workstations.

With a maximum operating temperature of 80°C and air cushioning that can be adjusted to suit various load conditions, this pneumatic cylinder can operate reliably in harsh industrial environments. The G 1/8 pneumatic interface provides industry-standard air connections for straightforward installation.

Key use cases for the DSNU-20-150-PPV-A include industrial automation, manufacturing, packaging machinery, material transfer systems, and any process requiring accurate and consistent pneumatic linear actuation. The high degree of modularity and robust design make it a preferred choice for demanding production environments.

Enhance your pneumatic and automation systems with the Festo DSNU-20-150-PPV-A Pneumatic Cylinder and explore other solutions in the Festo actuator range at EnvMart.
