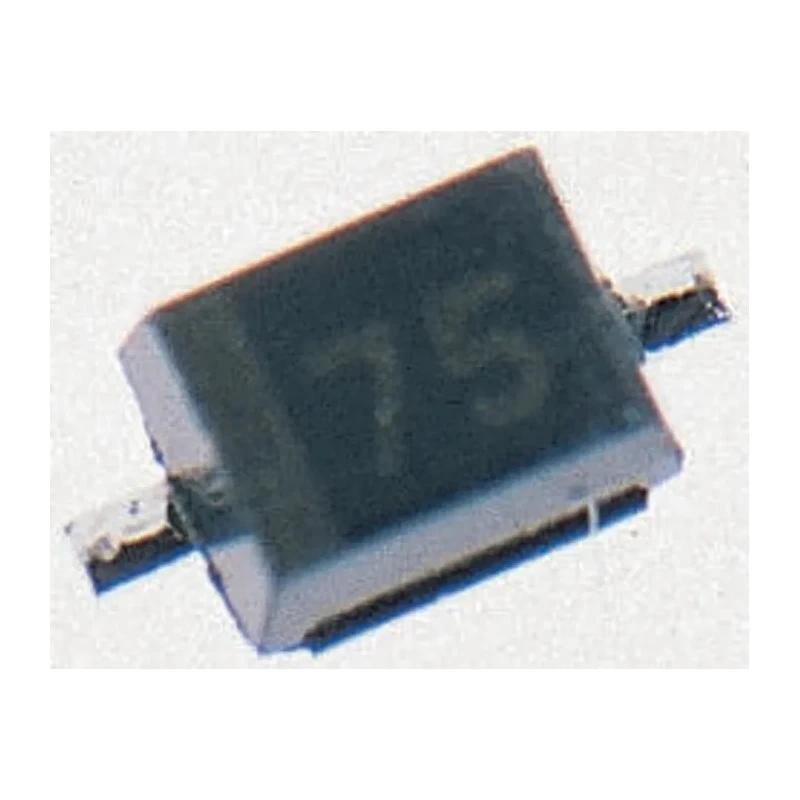

Nexperia Schottky Barrier Diode, 30 V, 1 A, Single, Surface Mount, SOD-323, PMEG3010EJ,115

Nexperia PMEG3010EJ,115 Schottky Barrier Diode is engineered for high efficiency and fast switching performance in industrial, electronic, and power supply applications. Encased in an ultra-small SOD-323 surface-mount package, this diode offers a maximum reverse voltage of 30 V and continuous forward current up to 1 A. Its compact size and single diode configuration make it suitable for densely populated PCBs and modern electronic devices while maintaining robust electrical characteristics.

With a peak reverse repetitive voltage (Vrrm) of 30 V and a low forward voltage drop of 560 mV, the PMEG3010EJ,115 achieves superior energy efficiency, minimizing power losses. The device’s Schottky rectifier architecture delivers rapid switching with negligible power switching losses and low leakage current, essential for optimized circuit performance.

This diode supports a peak non-repetitive forward surge current of 9 A and operates across a wide temperature range from -65°C to 150°C, making it highly reliable under demanding industrial conditions. Its minimal capacitance and high junction temperature tolerances allow robust operation in switching circuits, voltage clamping, and rectification roles.

The SOD-323 package measures just 1.8 mm in length, 1.35 mm in width, and 0.8 mm in height, providing a low-profile solution for space-constrained designs. Mount type is surface, facilitating automated assembly and high-speed manufacturing.

Applications include industrial automation, commercial switching electronics, power rectifiers, signal conversion, and protection circuits. The diode’s single configuration and 2-pin count make it easy to integrate into existing layouts, while its low leakage current and high efficiency support both performance and safety.

Operates at a maximum reverse voltage of 30 V with a continuous forward current of 1 A. Features a compact SOD-323 package for surface-mount circuit integration. Delivers single configuration for fast, reliable switching and rectification.

Optimized for low forward voltage drop and minimal leakage current. Supports peak surge currents up to 9 A and operates up to 150°C. Dimensions: length 1.8 mm, width 1.35 mm, height 0.8 mm for ultra-small footprint. Industrial and commercial use across switching, rectification, and protection circuits.
