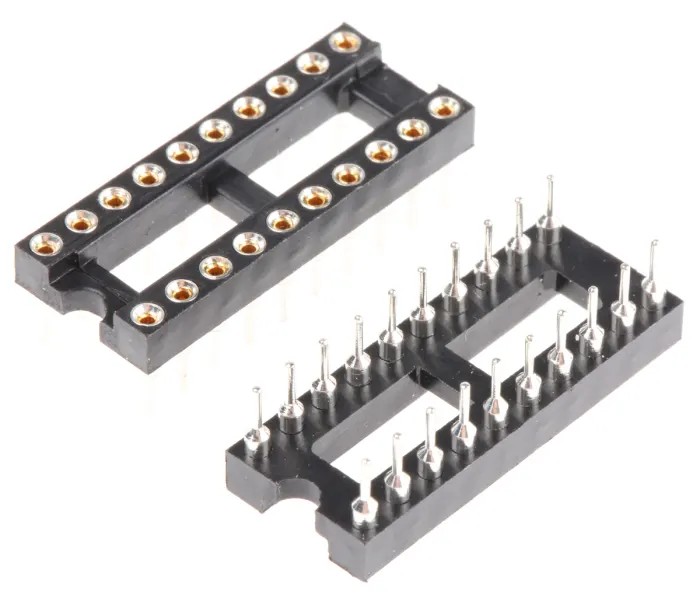

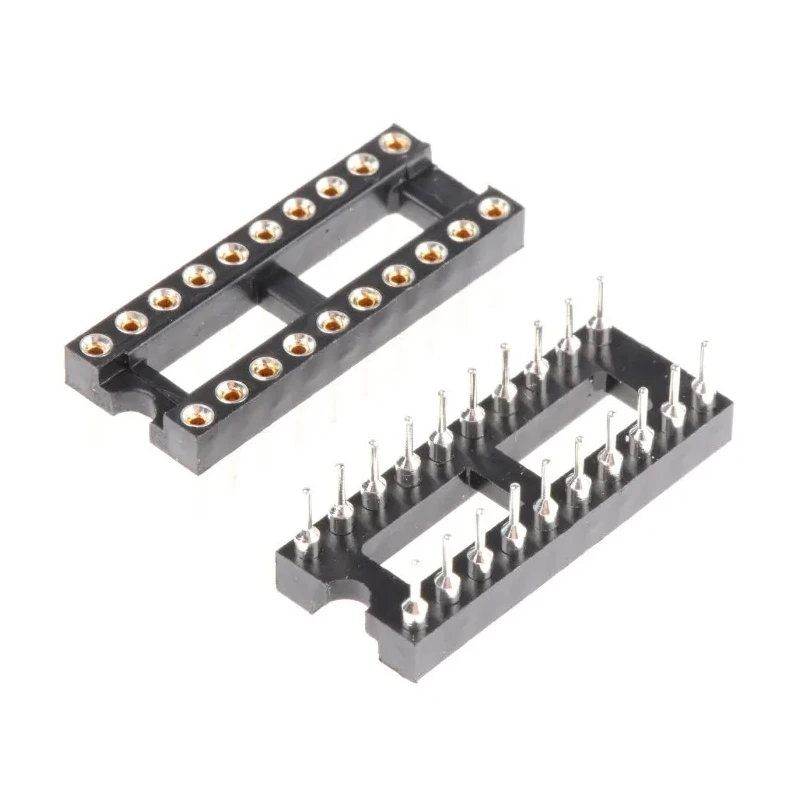

Winslow 2.54 mm Pitch Vertical 20 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30520TRC

Winslow W30520TRC is a robust and precisely engineered 20-way vertical through hole turned pin open frame DIL socket designed for the demanding requirements of electronic prototyping and circuit development. This socket enables convenient IC mounting without permanent soldering, ideal for debugging and iterative design steps in electronic and embedded systems.

The device features a 2.54 mm pitch and vertical orientation, specifically tailored for DIP ICs, ensuring perfect alignment and fitment on conventional PCBs. Machined contacts are gold plated over a nickel base, with a beryllium copper inner contact and tin-plated brass outer shell, offering high conductivity and corrosion resistance to maintain reliable electrical connections over repeated insertions.

Its open frame design allows for effective heat dissipation and easy IC removal or insertion, prolonging the operational life of both the socket and mounted component. Mounting is through hole, with a solder termination that guarantees a secure mechanical joint on the PCB. Accommodating up to 20 contacts, it is rated to handle a maximum current of 5A, suitable for a wide range of ICs and microcontrollers with medium to high power needs.

High-quality polybutylene terephthalate (PBT) plastic is used for the housing, providing mechanical robustness and thermal stability suitable for demanding industrial and laboratory environments. The socket supports up to 1000 insertions, making it ideal for repeated use in test circuits, development boards, and educational applications.

With a temperature range from -55°C to +125°C and a maximum operating temperature of 150°C, the W30520TRC is appropriate for various industrial, laboratory, and commercial PCB designs where longevity and reliability are essential. Its precise geometry (25.32 mm length, 10.14 mm depth, 4.6 mm width, 7.62 mm row width) ensures compatibility with industry-standard DIP footprints.

Typical use cases include PCB assembly in electronic laboratories, industrial control boards, development kits, automated testing, and prototyping environments. The Winslow W30520TRC open frame socket can be used in sectors such as electronics manufacturing, telecommunications, instrumentation, automation, and research and development.

Suitable for non-permanent development and circuit debugging. Gold-plated machined contact system for reliable conductivity. 20 contact configuration for a wide range of DIP ICs. Open frame design facilitates heat dissipation and easy IC handling.

Rated for 5A current and up to 1000 insertions. PBT housing ensures stability and durability under industrial conditions. Through-hole, solder-termination for secure PCB mounting. High thermal tolerance for both standard and demanding applications.
