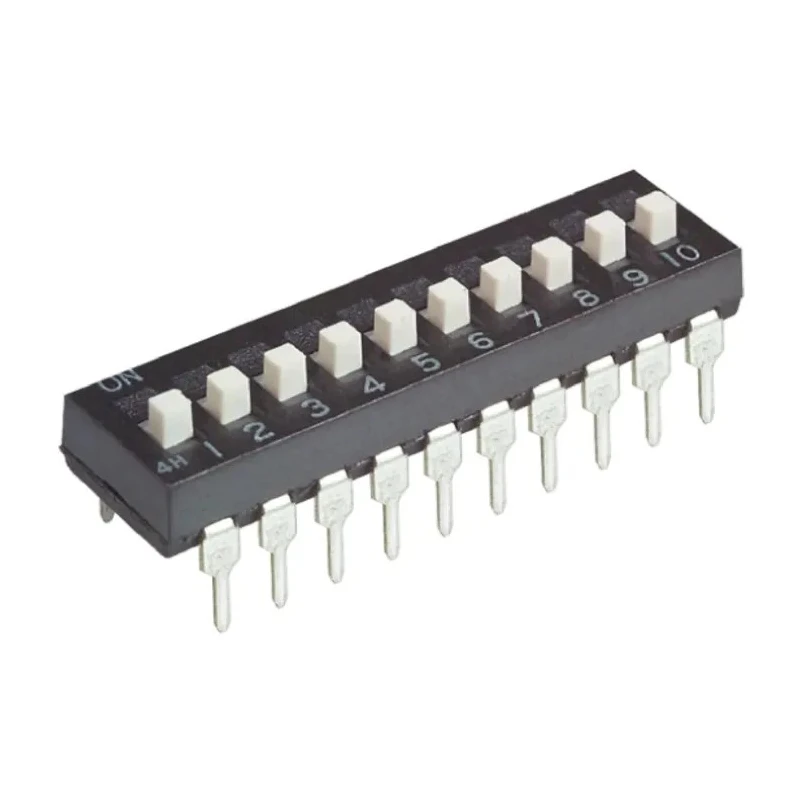

TE Connectivity Extended Slide Rotary Coded DIP Switch Through Hole 1825360-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | Through Hole |
| Actuator Type | Extended Slide |
| Contact Resistance | 50mΩ |
Key Features
- The switch features extended slide actuators for easy operation.
- Gold flash plated contacts ensure excellent conductivity and durability.
- Black PPS housing offers robust insulation and mechanical strength.
- 2.54mm centerline spacing suits standard PCB layouts.
- High pressure wiping contact system supports solvent and aqueous cleaning.
- Can withstand vapor phase reflow and wave soldering conditions.
- Contact resistance is maintained at 50 milliohms for consistent performance.
Product Description
TE Connectivity 1825360-6 Extended Slide Rotary Coded DIP Switch is a precision through hole mounted switch designed for use in a wide array of electronic and industrial applications. Featuring an extended slide actuator, it allows effortless switching with reliable tactile feedback.
Constructed with gold flash plated contacts and housed in durable black PPS plastic, this DIP switch ensures both electrical reliability and mechanical endurance. The 2.54mm pitch supports easy integration onto printed circuit boards adhering to standard layouts.
The high pressure wiping contact system is engineered to allow both aqueous and solvent cleaning without the need for tape sealing. This robustness also allows it to withstand harsh manufacturing processes such as vapor phase reflow and wave soldering, guaranteeing long-lasting operation.
Its low contact resistance of 50 milliohms minimizes signal loss and interference, making it ideal for sensitive electronic circuitry requiring precise switching functions. The switch has a through hole mount type for secure PCB attachment.
The extended slide actuator type offers better user interaction. Gold flash plating over contacts reduces oxidation and enhances conductivity. Black PPS housing delivers superior insulation properties and structural strength.
2.54mm centerline spacing allows compatibility with common PCB designs. Robust contact mechanism tolerates reflow soldering and cleaning processes. Maintains low contact resistance of 50mΩ for enhanced electrical performance.
This switch is extensively applicable across electronics manufacturing, automation controls, instrumentation, and other industrial systems requiring dependable rotary encoded DIP switching functions.
Explore our comprehensive catalog of rotary encoded DIP switches and other precision switching solutions tailored for diverse industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of the TE Connectivity Extended Slide Rotary Coded DIP Switch is maintained at 50 milliohms.
This model features a through hole mount type for secure attachment to printed circuit boards.
The actuator type of this switch is an extended slide, allowing for easy operation and reliable tactile feedback.
The switch is constructed with gold flash plated contacts for conductivity and a black PPS housing for insulation and mechanical strength.
The centerline spacing is 2.54mm, which suits standard PCB layouts for easy integration.
Yes, it can withstand vapor phase reflow and wave soldering conditions, making it suitable for robust manufacturing environments.
The high pressure wiping contact system allows for both aqueous and solvent cleaning without needing tape sealing.
It is extensively applicable across electronics manufacturing, automation controls, instrumentation, and other industrial systems requiring rotary encoded switching functions.
The country of origin for this product is India.
Gold flash plating over the contacts reduces oxidation and enhances conductivity, ensuring reliable electrical performance.
The extended slide actuator is designed to provide better user interaction and ease of operation.
The switch maintains low contact resistance of 50 milliohms, minimizing signal loss and interference, making it suitable for sensitive electronic circuitry.
